Summary of Contents for ACME SANDANE

  • Page 2: Table Of Contents

    CONTENTS 01/ Safety Instructions ....................2 02/ Technical Specifications ..................4 03/ Control Panel ......................6 04/ Fixture Installation ....................7 05/ How To Set The Unit ....................9 5.1 Main Functions ....................9 5.2 Home Position Adjustment ................. 20 06/ Control By Universal DMX Controller ..............

  • Page 3: 01/ Safety Instructions

    01/ Safety Instructions Please read the instruction carefully which includes important information about the installation, usage and maintenance. WARNING Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction manual. Important: Damages caused by the disregard of this user manual are not subject to warranty.
  • Page 4 off the mains power immediately. DO NOT operate in a dirty or dusty environment. DO clean the fixture regularly.  DO NOT touch any wire during operation as there might be a hazard of electric shock.  Avoid entanglement of the power cord with other wires. ...

  • Page 5: 02/ Technical Specifications

    02/ Technical Specifications Power Voltage 100-240V~ 50/60Hz Power Consumption 230W Light Source 54x6W RGBW LED Beam Angle 19°, 23°, 30°, 40°, 58° Field Angle 37°, 45°, 59°, 74°, 100° 0-100% smooth dimming; outstanding strobe effect with variable Dimmer/Strobe speed DMX Channel 10/8/5/4/6 Channels DMX512 Control...
  • Page 6 Photometric Diagram: - 5 -...

  • Page 7: 03/ Control Panel

    03/ Control Panel 1. Display To show the various menus and the selected function MENU To enter into move backward or leave the menu  UP To go backward to move up in the menu 2. Buttons  DOWN To go forward to move down in the menu ENTER To perform the desired functions 3.

  • Page 8: 04/ Fixture Installation

    04/ Fixture Installation  DO install and operate by qualified operator. Fixture(s) should be installed in areas outside walking paths, seating areas, or away from areas were unauthorized personnel might reach the fixture by hand. NEVER stand directly below the fixture(s) when rigging, removing or servicing.
  • Page 9 - 8 -...

  • Page 10: 05/ How To Set The Unit

    05/ How To Set The Unit 5.1 Main Functions  To access the control menus, press the [MENU] button.  Navigate the menu structure, using the [ENTER], [ UP] and [ DOWN] buttons.  To select a menu option or to confirm a selection, press the [ENTER] button. ...
  • Page 11 MENU SUBMENU OPTIONS 125-255 White Balance Green 125-255 Blue 125-255 Secondary Pri/Sec Mode Primary Display Invert °C Display Settings Temperature Unit °F English Language Chinese Auto Test Clear No/Yes 0-255 Green 0-255 Blue 0-255 White 0-255 Strobe 0-255 Dimmer 0-255 Manual Test Null 8000K~2500K...
  • Page 12 MENU SUBMENU OPTIONS Fixture Use Hour Total LED Hour LED On Hour LED Use Hour LED Hours Reset Password=050 Current Max temp Information Temperature PCBA Firmware Version RDM UID Fixture Errors Error Logs Reset Error Log Password=050 Factory Restore DMX Settings Enter the control menu and select DMX Settings, press ENTER.
  • Page 13 Channel Mode Select Channel Mode, press ENTER. Use UP/DOWN button to select between Mode 1 (10), Mode 2 (8), Mode 3 (5), Mode 4 (4) and Mode 5 (6), confirm your selection with ENTER. To exit the menu, press MENU, or wait 30 seconds. No DMX Status Select No DMX Status, press ENTER.
  • Page 14 Fixture Settings Enter the control menu and select Fixture Settings, press ENTER. Use the UP/DOWN button to select Dimmer Curve, Dimmer Speed, White Balance or Pri/Sec Mode. Dimmer Curve Select Dimmer Curve, press ENTER. Use UP/DOWN button to select Linear, Square Law, Inv SQ Law or S Curve, confirm your selection with ENTER.
  • Page 15 Pri/Sec Mode Select Pri/Sec Mode, press ENTER. Use UP/DOWN button to select Secondary or Primary, confirm your selection with ENTER. To exit the menu, press MENU, or wait 30 seconds. Display Settings Enter the control menu and select Display Settings, press ENTER. Use the UP/DOWN button to select Display Invert, Temperature Unit or Language.
  • Page 16 Auto Test Select Auto Test, press ENTER. The device immediately performs an automatic self-test. To end the automatic self-test and exit the menu, press MENU, or wait 30 seconds. Manual Test Select Manual Test, press ENTER. Use UP/DOWN button to select the channel for which the manual test is to be performed, confirm your selection with ENTER.
  • Page 17 Edit Scene Color Select Edit Scene Color, press ENTER. Use UP/DOWN button to select a value between 1 and 50, confirm your selection with ENTER. Use UP/DOWN button to select Red, Green, Blue or White, confirm your selection with ENTER. Use UP/DOWN button to select a value between 0 and 255, confirm your selection with ENTER.
  • Page 18 LED Use Hour Select LED Use Hour, press ENTER. Use UP/DOWN button to select Total LED Hour (total time) or LED On Hour (current switch-on time), confirm your selection with ENTER. The total time or current switch-on time is displayed. Use UP/DOWN button to select LED Hours Reset, confirm your selection with ENTER.
  • Page 19 Error Logs Select Error Logs, press ENTER. Use UP/DOWN button to select Fixture Errors, confirm your selection with ENTER. The error list is displayed. Use UP/DOWN button to select Reset Error Log, confirm your selection with ENTER. If you wish to reset the relevant error logs, select Yes. If you do not wish to reset anything, select No.
  • Page 20 RDM functions: Certain menus of the device and functions can be called up via the RDM protocol. The parameter IDs are implemented as follows for different commands: Command Command Command Parameter ID ‘Discovery’ ‘Set’ ‘Get’ DISC_UNIQUE_BRANCH √ DISC_MUTE √ DISC_UN_MUTE √...

  • Page 21: Home Position Adjustment

    5.2 Home Position Adjustment  To access the control menus, press the [MENU] button.  To access the offset menus, long-press the [ENTER] button.  Navigate the offset menus, using the [ENTER], [ UP] and [ DOWN] buttons.  To select a menu option or to confirm a selection, press the [ENTER] button. ...
  • Page 22 Blue Select Blue, press ENTER. Use UP/DOWN button to select a value between 0 and 255, confirm your selection with ENTER. To exit the offset menu, press MENU, or wait 30 seconds. White Select White, press ENTER. Use UP/DOWN button to select a value between 0 and 255, confirm your selection with ENTER.

  • Page 23: 06/ Control By Universal Dmx Controller

    06/ Control By Universal DMX Controller 6.1 DMX512 Connection 1. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120-ohm 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the DMX-output of the last unit.

  • Page 24: Address Setting

    6.2 Address Setting If you use a universal DMX controller to control the units, you have to set DMX address between 1 and 512 so that the units can receive DMX signal. Press the MENU button to access the control menus, select DMX Settings, press the ENTER button to confirm.
  • Page 25 10 Channels (Mode 1): CHANNEL VALUE FUNCTION 000-255 0%100% GREEN 0%100% 000-255 BLUE 0%100% 000-255 WHITE 000-255 0%100% STROBE 000-007 Close 008-015 Open 016-131 Strobe from Slow to Fast 132-139 Open 140-181 Slow Open Fast Close from Slow to Fast 182-189 Open 190-231...
  • Page 26 086-090 6100K 091-094 6000K 095-099 5900K 100-103 5800K 104-108 5700K 109-112 5600K 113-117 5500K 118-121 5400K 122-126 5300K 127-130 5200K 131-135 5100K 136-139 5000K 140-144 4900K 145-148 4800K 149-153 4700K 154-157 4600K 158-162 4500K 163-166 4400K 167-171 4300K 172-175 4200K 176-180 4100K 181-184...
  • Page 27 030-032 LEE 120-Deep Blue 033-035 LEE 079-Just Blue 036-038 LEE 132-Medium Blue 039-041 LEE 200-Double CT Blue 042-044 LEE 161-State Blue 045-047 LEE 201-Full CT Blue 048-050 LEE 202-Half CT Blue 051-053 LEE 117-Steel Blue 054-056 LEE 353-Lighter Blue 057-059 LEE 118-Light Blue 060-062 LEE 116-Medium Blue Green...
  • Page 28 8 Channels (Mode 2): CHANNEL VALUE FUNCTION 000-255 0%100% GREEN 0%100% 000-255 BLUE 0%100% 000-255 WHITE 000-255 0%100% STROBE 000-007 Close 008-015 Open 016-131 Strobe from Slow to Fast 132-139 Open 140-181 Slow Open Fast Close from Slow to Fast 182-189 Open 190-231...
  • Page 29 5 Channels (Mode 3): CHANNEL VALUE FUNCTION 000-255 0%100% GREEN 0%100% 000-255 BLUE 0%100% 000-255 WHITE 000-255 0%100% STROBE 000-007 Close 008-015 Open 016-131 Strobe from Slow to Fast 132-139 Open 140-181 Slow Open Fast Close from Slow to Fast 182-189 Open 190-231...
  • Page 30 6 Channels (Mode 5): CHANNEL VALUE FUNCTION DIMMER 000-255 0%100% 0%100% 000-255 GREEN 0%100% 000-255 BLUE 000-255 0%100% WHITE 0%100% 000-255 STROBE 000-007 Close 008-015 Open 016-131 Strobe from Slow to Fast 132-139 Open 140-181 Slow Open Fast Close from Slow to Fast 182-189 Open 190-231...

  • Page 31: 07/ Error Information

    07/ Error Information Error codes are shown continuously in the display when the fixture fails and they will not disappear until the fixture is repaired. LED Temp. Error Check whether the temperature detecting board is normal. Check whether the components of the temperature detecting board are damaged.

  • Page 32: 08/ Troubleshooting

    08/ Troubleshooting Following are a few common problems that may occur during operation. Here are some suggestions for troubleshooting: A. The unit does not work and no light  Check the connected power.  Measure the voltage.  Check the power indicator to see whether it can be lit up or not. B.
  • Page 33 - 32 -...
  • Page 34 - 33 -...
  • Page 35 Declaration of Conformity We declare that our products (lighting equipments) comply with the following specification and bears CE mark in accordance with the provision of the Electromagnetic Compatibility (EMC) Directive 2014/30/EU. EN IEC 55015: 2019+A11: 2020; EN 61547: 2009; EN IEC 61000-3-2: 2019; EN 61000-3-3: 2013+A1: 2019. &...

This manual is also suitable for:

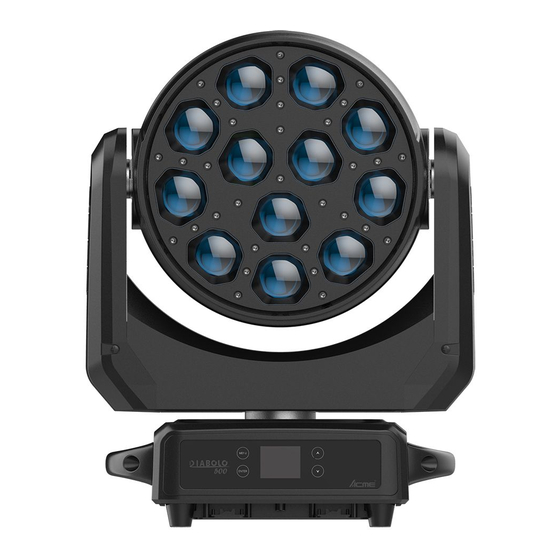

Diabolo 500
