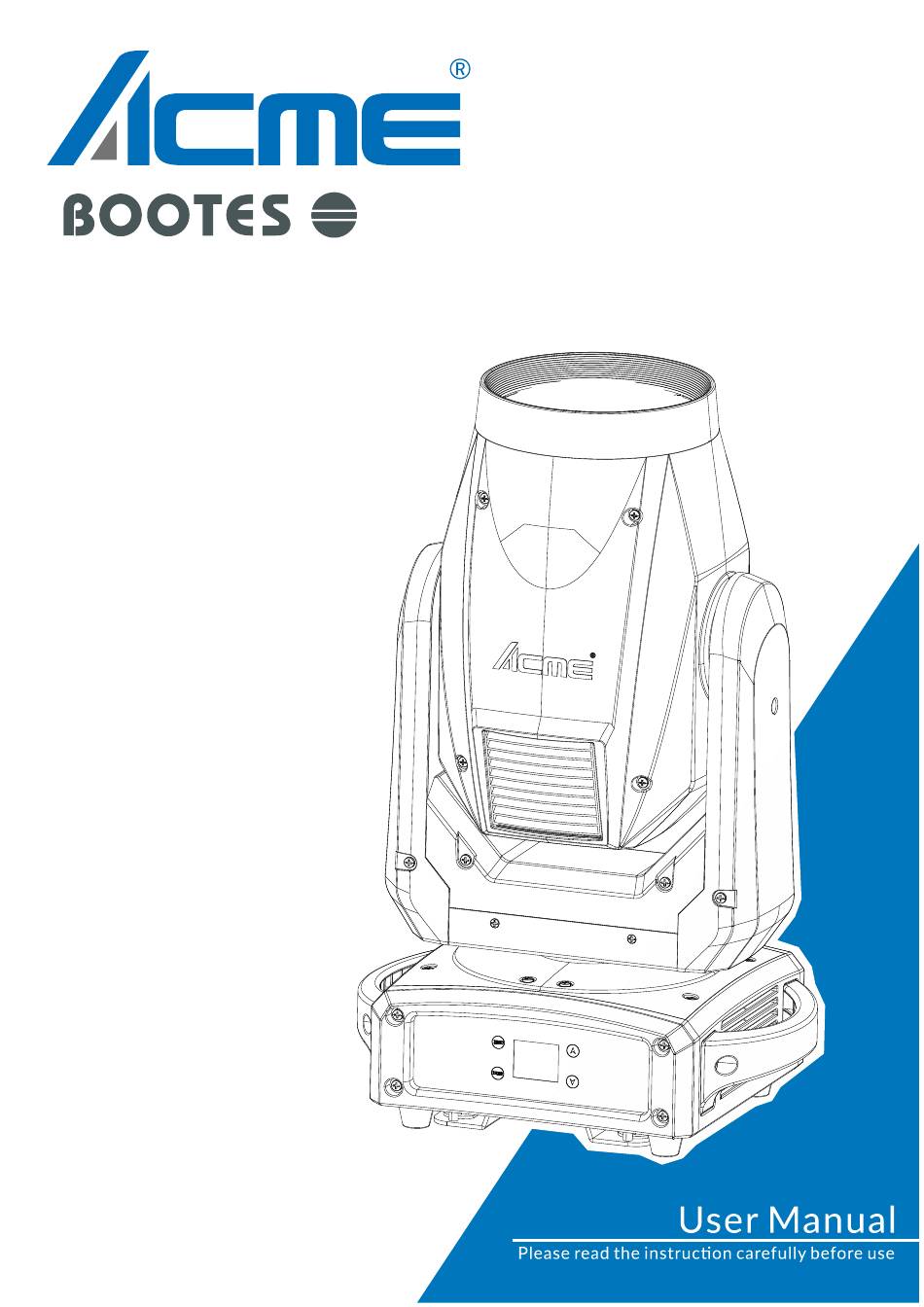

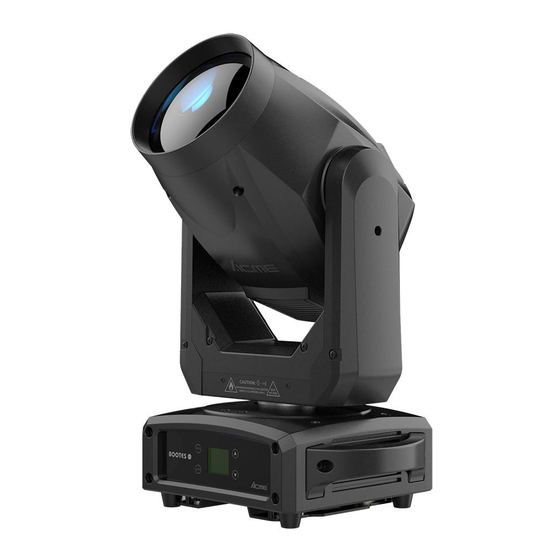

ACME BOOTES User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for ACME BOOTES

Summary of Contents for ACME BOOTES

  • Page 2: Table Of Contents

    CONTENTS 01/ Safety Instructions ....................2 02/ Technical Specifications ..................4 03/ Control Panel ......................6 04/ Fixture Installation ....................7 05/ Effect Wheels & Lamp ................... 9 5.1 Effect Wheels ....................9 5.2 Light Source ...................... 9 5.3 Lamp Replacement ..................10 5.4 Lamp Replacement Warning ...............

  • Page 3: 01/ Safety Instructions

    01/ Safety Instructions Please read the instruction carefully which includes important information about the installation, usage and maintenance. WARNING Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction manual. Important: Damages caused by the disregard of this user manual are not subject to warranty.
  • Page 4 Unit’s surface temperature may reach up to 70 ℃ . DO NOT touch the housing  bare-handed during its operation. Avoid any flammable liquids, water or metal from entering the unit. Once it happens, cut  off the mains power immediately. DO NOT operate in a dirty or dusty environment.

  • Page 5: 02/ Technical Specifications

    02/ Technical Specifications Power Voltage 180-240V~ 50/60Hz Power Consumption 485W Light Source PHILIPS MSD Silver 380W Color Temperature 7800K Beam Angle 2° 0-100% smooth dimming; outstanding strobe effect with variable Dimmer/Strobe speed Color Wheel 14 fixed colors plus white, with rainbow effect Gobo Wheel Static Gobo Wheel 13 gobos plus open...
  • Page 6 Photometric Diagram: - 5 -...

  • Page 7: 03/ Control Panel

    03/ Control Panel 1. Display To show the various menus and the selected function MENU To enter into move backward or leave the menu  UP To go backward to move up in the menu 2. Buttons  DOWN To go forward to move down in the menu ENTER To perform the desired functions For DMX512 link, use 3-pin XLR cable to link the unit and DMX...

  • Page 8: 04/ Fixture Installation

    04/ Fixture Installation  DO install and operate by qualified operator. Fixture(s) should be installed in areas outside walking paths, seating areas, or away from areas were unauthorized personnel might reach the fixture by hand. NEVER stand directly below the fixture(s) when rigging, removing or servicing.
  • Page 9 Steps for installing the omega brackets to the fixture: - 8 -...

  • Page 10: 05/ Effect Wheels & Lamp

    05/ Effect Wheels & Lamp 5.1 Effect Wheels DANGER! Install the color wheel / gobo wheel with the device switched off only. Unplug from mains before changing the color wheel / gobo wheel! 5.2 Light Source PHILIPS MSD Silver 380W Because of its high internal pressure, there might be a risk that the discharge lamp would explode during operation.

  • Page 11: Lamp Replacement

    5.3 Lamp Replacement ATTENTION The entire light path and lens of the luminaire must be thoroughly cleaned before replacing the lamp. Do not use this lamp more than 1500 hours, using the lamp any longer than its set life could seriously damage the fixture.
  • Page 12 Loosen the screw that holds the lamp in place. Unplug the leads of the lamp and lift the lamp out of its recess, disconnect the lamp and connect a new lamp that must be the same type with the old one. And then place the new lamp into the lamp recess. Finally reinstall the head cover, fastening it securely before reapplying power.

  • Page 13: Lamp Replacement Warning

    5.4 Lamp Replacement Warning  When the lamp reaches 1200 hours of usage, the display will flash the message “Replace Lamp Soon” for up to 5 minutes. During this period, the fixture will still work normally.  When the lamp reaches 1500 hours of usage, the display will flash the message “Replace Lamp Now”...
  • Page 14 The main functions are shown below: MENU SUBMENU OPTIONS 1-494 (19 CH) DMX Address (Default=1) 1-499 (14 CH) Mode 1 (19) DMX Channel Mode Mode 2 (14) DMX Settings Blackout No DMX Status Hold Manual View DMX Value Pan Invert Tilt Invert Fixture Settings P/T Feedback...
  • Page 15 MENU SUBMENU OPTIONS R-Prism 1 0-255 Prism 2 0-255 R-Prism 2 0-255 Frost 0-255 Focus 0-255 Strobe 0-255 Dimmer 0-255 Fixture Use Hour Lamp Use Time Lamp Time Reset Password=050 Driver State Lamp State Lamp Voltage Fault Mode Fixture Information Fan State Head Fan Firmware Version...
  • Page 16 DMX Settings Enter the control menu and select DMX Settings, press ENTER. Use the UP/DOWN button to select DMX Address, DMX Channel Mode, No DMX Status or View DMX Value. DMX Address Select DMX Address, press ENTER. Use UP/DOWN button to select an address, confirm your selection with ENTER.
  • Page 17 View DMX Value Select View DMX Value, press ENTER. Use UP/DOWN button to select the desired DMX channel, for which the value is to be displayed. To exit the menu, press MENU, or wait 30 seconds. Fixture Settings Enter the control menu and select Fixture Settings, press ENTER. Use the UP/DOWN button to select Pan Invert, Tilt Invert, P/T Feedback or Pan/Tilt Speed.
  • Page 18 Lamp Settings Enter the control menu and select Lamp Settings, press ENTER. Use the UP/DOWN button to select Lamp On/Off, Lamp ON with Power, Lamp ON via DMX or Lamp OFF via DMX. Lamp On/Off Select Lamp On/Off, press ENTER. Use UP/DOWN button to select Off (lamp off) or On (lamp on), confirm your selection with ENTER.
  • Page 19 Display Settings Enter the control menu and select Display Settings, press ENTER. Use the UP/DOWN button to select Display Invert, Backlight Intensity or Language. Display Invert Select Display Invert, press ENTER. Use UP/DOWN button to select No (display normal) or Yes (display inverted), confirm your selection with ENTER.
  • Page 20 Manual Test Select Manual Test, press ENTER. Use UP/DOWN button to select the channel for which the manual test is to be performed, confirm your selection with ENTER. Use UP/DOWN button to select a value, confirm your selection with ENTER. To exit the menu, press MENU, or wait 30 seconds.
  • Page 21 Lamp State Select Lamp State, press ENTER. The lamp status is displayed. To exit the menu, press MENU, or wait 30 seconds. Fan State Select Fan State, press ENTER. The fan status is displayed. To exit the menu, press MENU, or wait 30 seconds. Firmware Version Select Firmware Version, press ENTER.
  • Page 22 Reset Function Enter the control menu and select Reset Function, press ENTER. Use the UP/DOWN button to select Pan/Tilt Reset, Effect Reset or All Reset. Pan/Tilt Reset Select Pan/Tilt Reset, press ENTER. Use UP/DOWN button to select No or Yes (the device will run built-in program to reset pan/tilt to their home positions), confirm your selection with ENTER.
  • Page 23 Special Function Enter the control menu and select Special Function, press ENTER. Use the UP/DOWN button to select Factory Settings. Factory Settings Select Factory Settings, press ENTER. If you wish to reset the device to the factory settings, select Yes. If you do not wish to reset anything, select No.
  • Page 24 RDM functions: Certain menus of the device and functions can be called up via the RDM protocol. The parameter IDs are implemented as follows for different commands: Command Command Command Parameter ID ‘Discovery’ ‘Set’ ‘Get’ DISC_UNIQUE_BRANCH √ DISC_MUTE √ DISC_UN_MUTE √...

  • Page 25: Home Position Adjustment

    6.2 Home Position Adjustment  To access the control menus, press the [MENU] button.  To access the offset menus, long-press the [ENTER] button.  Navigate the offset menus, using the [ENTER], [ UP] and [ DOWN] buttons.  To select a menu option or to confirm a selection, press the [ENTER] button. ...
  • Page 26 Strobe Select Strobe, press ENTER. Use UP/DOWN button to select a value between -128 and 127, confirm your selection with ENTER. To exit the offset menu, press MENU, or wait 30 seconds. Color Select Color, press ENTER. Use UP/DOWN button to select a value between -128 and 127, confirm your selection with ENTER.
  • Page 27 Prism 2 Select Prism 2, press ENTER. Use UP/DOWN button to select a value between -128 and 127, confirm your selection with ENTER. To exit the offset menu, press MENU, or wait 30 seconds. R-Prism 2 Select R-Prism 2, press ENTER. Use UP/DOWN button to select a value between -128 and 127, confirm your selection with ENTER.

  • Page 28: 07/ Control By Universal Dmx Controller

    07/ Control By Universal DMX Controller 7.1 DMX512 Connection 1. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120-ohm 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the DMX-output of the last unit.

  • Page 29: Address Setting

    7.2 Address Setting If you use a universal DMX controller to control the units, you have to set DMX address between 1 and 512 so that the units can receive DMX signal. Press the MENU button to access the control menus, select DMX Settings, press the ENTER button to confirm.
  • Page 30 19 Channels (Mode 1): CHANNEL VALUE FUNCTION 000-255 0°540° 000-255 PAN FINE TILT 000-255 0°244° 000-255 TILT FINE PAN/TILT SPEED 000-255 Fast to Slow COLOR WHEEL 000-007 Open 008-011 Color 1 012-015 Color 2 016-019 Color 3 020-023 Color 4 024-027 Color 5 028-031...
  • Page 31 064-067 Gobo 1 Shaking, Slow to Fast 068-071 Gobo 2 Shaking, Slow to Fast 072-075 Gobo 3 Shaking, Slow to Fast 076-079 Gobo 4 Shaking, Slow to Fast 080-083 Gobo 5 Shaking, Slow to Fast 084-087 Gobo 6 Shaking, Slow to Fast 088-091 Gobo 7 Shaking, Slow to Fast 092-095...
  • Page 32 132-139 Open 140-181 Slow Open Fast Close from Slow to Fast 182-189 Open 190-231 Fast Open Slow Close from Slow to Fast 232-239 Open 240-247 Random Strobe from Slow to Fast 248-255 Open DIMMER 000-255 0%100% 000-255 DIMMER FINE SPECIAL FUNCTION 000-129 Null 130-139...
  • Page 33 040-043 Color 9 044-047 Color 10 048-051 Color 11 052-055 Color 12 056-059 Color 13 060-063 Color 14 064-127 Color Wheel Index 128-189 Clockwise Rotation, Fast to Slow 190-193 Stop 194-255 Counter-Clockwise Rotation, Slow to Fast SOFT FILTER 000-007 Open 008-131 Soft Filter 1 132-255...

  • Page 34: 08/ Error Information

    08/ Error Information Error codes are shown continuously in the display when the fixture fails and they will not disappear until the fixture is repaired. CPU- B Error Check whether the 485 (DATA) leads on the PCB board are installed in place or disconnected.
  • Page 35 Tilt Reset Error Check whether the position of the tilt where the magnet is installed falls off or is damaged. Check whether there are obstacles in the tilt operating range. Check whether the Hall element on the tilt is damaged. Check whether the lead connecting the Hall element on the tilt and the PCB board is in poor contact or disconnected.
  • Page 36 Gobo Reset Fail Check whether the position of the gobo wheel where the magnet is installed falls off or is damaged. Check whether there are obstacles in the gobo wheel operating range. Check whether the Hall element on the gobo wheel is damaged. Check whether the lead connecting the Hall element on the gobo wheel and the PCB board is in poor contact or disconnected.
  • Page 37 Prism1/2 Reset Fail Check whether the position of the prism 1/2 where the magnet is installed falls off or is damaged. Check whether there are obstacles in the prism 1/2 operating range. Check whether the Hall element on the prism 1/2 is damaged. Check whether the lead connecting the Hall element on the prism 1/2 and the PCB board is in poor contact or disconnected.
  • Page 38 Frost Reset Fail Check whether the position of the frost where the magnet is installed falls off or is damaged. Check whether there are obstacles in the frost operating range. Check whether the Hall element on the frost is damaged. Check whether the lead connecting the Hall element on the frost and the PCB board is in poor contact or disconnected.
  • Page 39 The position of each fan of the fixture: - 38 -...

  • Page 40: 09/ Troubleshooting

    09/ Troubleshooting Following are a few common problems that may occur during operation. Here are some suggestions for troubleshooting: A. The unit does not work, no light and the fan does not work  Check the connected power and main fuse. ...

  • Page 41: 10/ Fixture Cleaning

    10/ Fixture Cleaning It is absolutely essential that the fixture is kept clean to ensure the maximum light-output and allow the fixture to function reliably throughout its life. The fixture must be cleaned regularly to avoid dust, dirt and smoke-fluid residues building up on or within the fixture. The cleaning frequency depends on the application environment.
  • Page 42 - 41 -...
  • Page 43 - 42 -...
