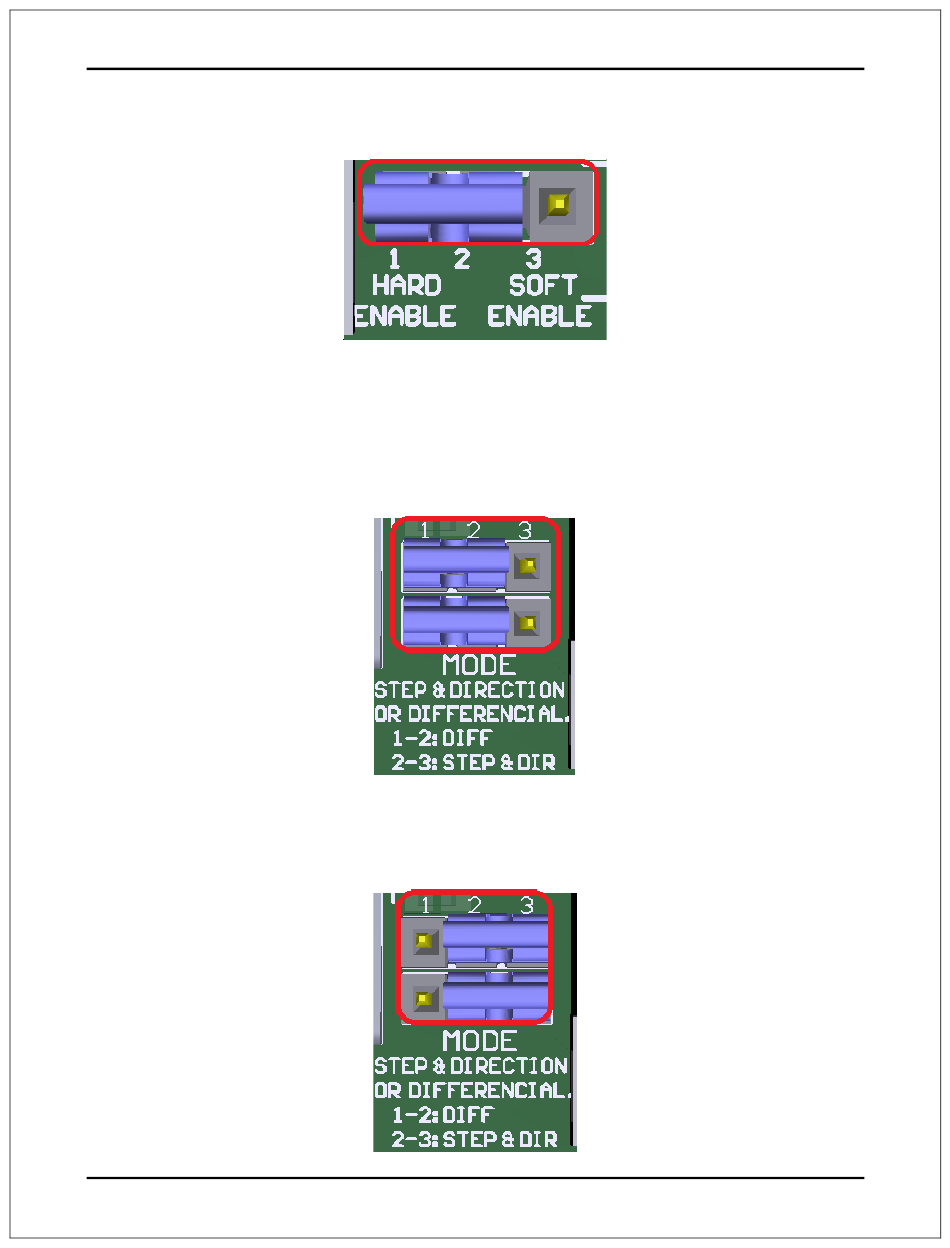

HARD ENABLE
JUMPER TO SELECT THE DIFFERENTIAL
If working the inputs of STEP and DIR as differentials signals, you have to use the board, set
jumper as shown in the image.
DIFERENTIAL.
If not use the differential signal for STEP & DIR, set jumper as show in the image.
STEP & DIR
User's Manual
Page 3
