Chapter 2 — Site Requirements

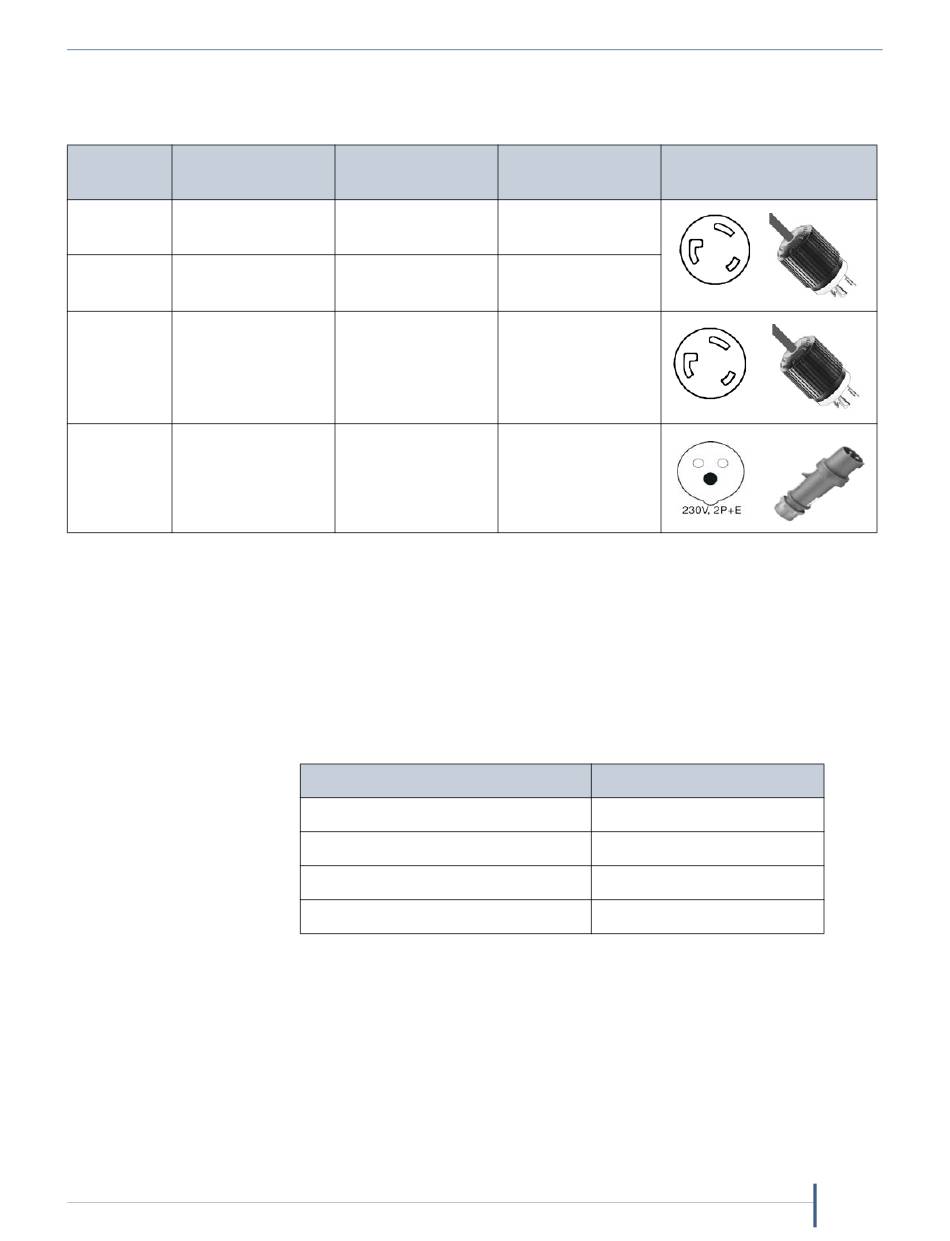

Supply-End Connector Types The supply‐end connector on the cord
depends on the country where the library will be installed. The following
table shows the supply‐end connector types used in some counties.
Part Country of Use
Number
5500 North America,
Korea
7029 North America,
Korea
6807 Japan
8665 United Kingdom,
Continental
Europe
Power Outlet Location The twist lock supply‐end connector is considered
the power disconnect for the unit. The outlet must therefore be installed in
an accessible location near the library.
Power Receptacles The power receptacles for the main frame, the drive
expansion frames, and the service frames are located in the lower
right‐hand corner of the frame as you face the back of the library.
The following table shows the number of power outlets for each frame
type.
March 2015
Plug Style
NEMA L6‐20P
NEMA L6‐30P
NEMA L6‐20P
IEC 60309
Frame Type
Main Frame
Drive Expansion Frame
Media Expansion Frame
Service or Bulk TAP Service Frame
Site Preparation Guide—Spectra TFinity Library
Length Appearance
14.8 ft (4.5 m)
14.8 ft (4.5 m)
13.9 ft (4.25 m)
15 ft (4.6 m)
Number of Power Outlets
Physical Requirements
2
2
0
2
