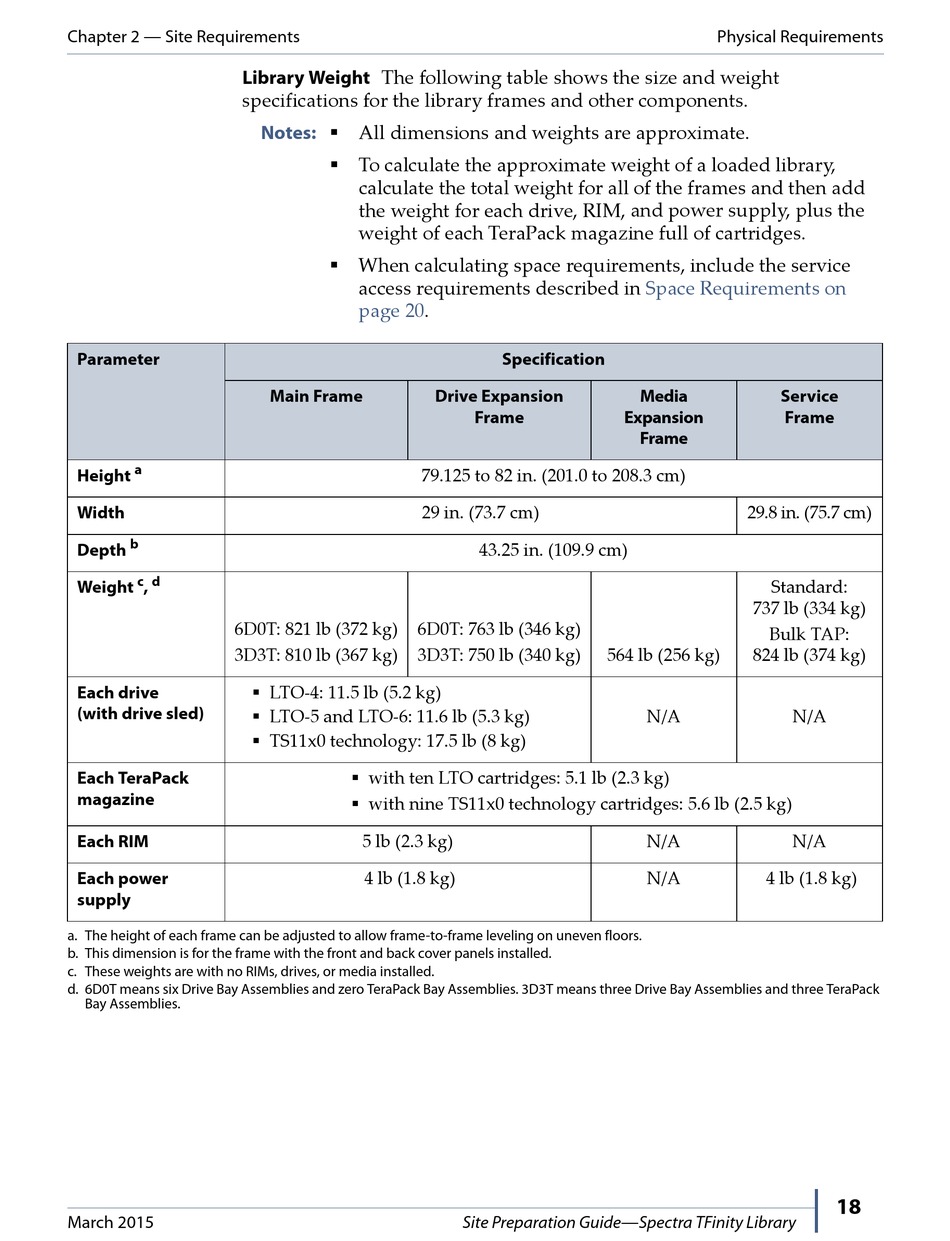

Library Weight The following table shows the size and weight
specifications for the library frames and other components.
Parameter
a
Height
Width
b
Depth
c d
Weight ,
6D0T: 821 lb (372 kg)
3D3T: 810 lb (367 kg)
Each drive
(with drive sled)
Each TeraPack
magazine
Each RIM
Each power
supply
a. The height of each frame can be adjusted to allow frame-to-frame leveling on uneven floors.
b. This dimension is for the frame with the front and back cover panels installed.
c. These weights are with no RIMs, drives, or media installed.
d. 6D0T means six Drive Bay Assemblies and zero TeraPack Bay Assemblies. 3D3T means three Drive Bay Assemblies and three TeraPack
Bay Assemblies.
March 2015
 All dimensions and weights are approximate.
Notes:
 To calculate the approximate weight of a loaded library,
calculate the total weight for all of the frames and then add
the weight for each drive, RIM, and power supply, plus the
weight of each TeraPack magazine full of cartridges.
 When calculating space requirements, include the service
access requirements described in Space Requirements on
page 20.
Main Frame
79.125 to 82 in. (201.0 to 208.3 cm)
29 in. (73.7 cm)
6D0T: 763 lb (346 kg)
3D3T: 750 lb (340 kg)
 LTO‐4: 11.5 lb (5.2 kg)
 LTO‐5 and LTO‐6: 11.6 lb (5.3 kg)
 TS11x0 technology: 17.5 lb (8 kg)
 with ten LTO cartridges: 5.1 lb (2.3 kg)
 with nine TS11x0 technology cartridges: 5.6 lb (2.5 kg)
5 lb (2.3 kg)
4 lb (1.8 kg)
Specification
Drive Expansion
Frame
43.25 in. (109.9 cm)
564 lb (256 kg)
Site Preparation Guide—Spectra TFinity Library
Physical Requirements
Media Service
Expansion Frame
Frame
29.8 in. (75.7 cm)
Standard:
737 lb (334 kg)
Bulk TAP:
824 lb (374 kg)
N/A N/A
N/A N/A
N/A 4 lb (1.8 kg)
