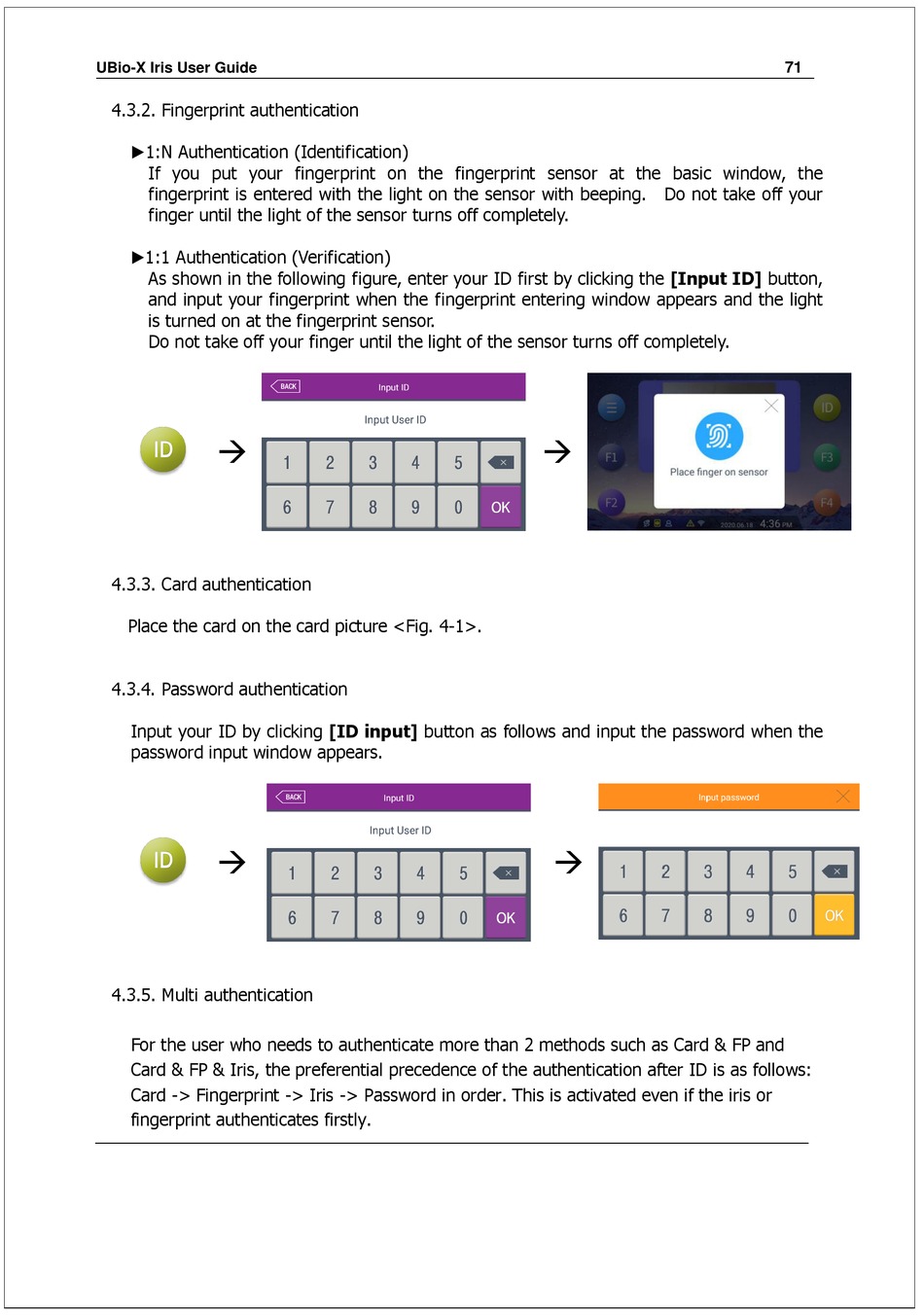

Union Community UBio-X Iris User Manual page 71

UBio-X Iris User Guide
4.3.2. Fingerprint authentication
▶1:N Authentication (Identification)
If you put your fingerprint on the fingerprint sensor at the basic window, the
fingerprint is entered with the light on the sensor with beeping. Do not take off your
finger until the light of the sensor turns off completely.
▶1:1 Authentication (Verification)
As shown in the following figure, enter your ID first by clicking the [Input ID] button,
and input your fingerprint when the fingerprint entering window appears and the light
is turned on at the fingerprint sensor.
Do not take off your finger until the light of the sensor turns off completely.

4.3.3. Card authentication
Place the card on the card picture <Fig. 4-1>.
4.3.4. Password authentication
Input your ID by clicking [ID input] button as follows and input the password when the
password input window appears.

4.3.5. Multi authentication
For the user who needs to authenticate more than 2 methods such as Card & FP and
Card & FP & Iris, the preferential precedence of the authentication after ID is as follows:
Card -> Fingerprint -> Iris -> Password in order. This is activated even if the iris or
fingerprint authenticates firstly.


