Union Community UBio-X Iris User Manual page 67

UBio-X Iris User Guide
- Picture: The image log is saved in the folder of 'UbioXiris/Terminal ID (8
digits)/log/pictures' in USB memory as .jpg file.
- Export All: It can export all of them, specifically the user data, system option, event
▶ Import
It copies the data from the USB memory to the terminal.
- User Data: It copies the user DB from the USB memory to the folder 'unisuser' in the
- System Option: The option setting value of the terminal is copied to the folder
After importing the data, you should reboot the terminal to apply the new DB or setting
value.
▶Others
- Theme: The voice file in the 'UbioXiris/audio' folder in the SD card is copied to the
terminal.
If you want to replace the authentication success (user_ok.mp3) and the authentication
fail (user_fail.mp3) message with the user voice, set the name of the user voice file as
(user_ok.mp3) and (user_fail.mp3) each which the user voice will play.
And also the checkbox "User Voice" on [3.7.1. Sound] should be checked.
- F/W Upgrade: It upgrades the FW from USB memory.
If you finished this operation and move to the previous menu, select [OK] or [BACK]
button.

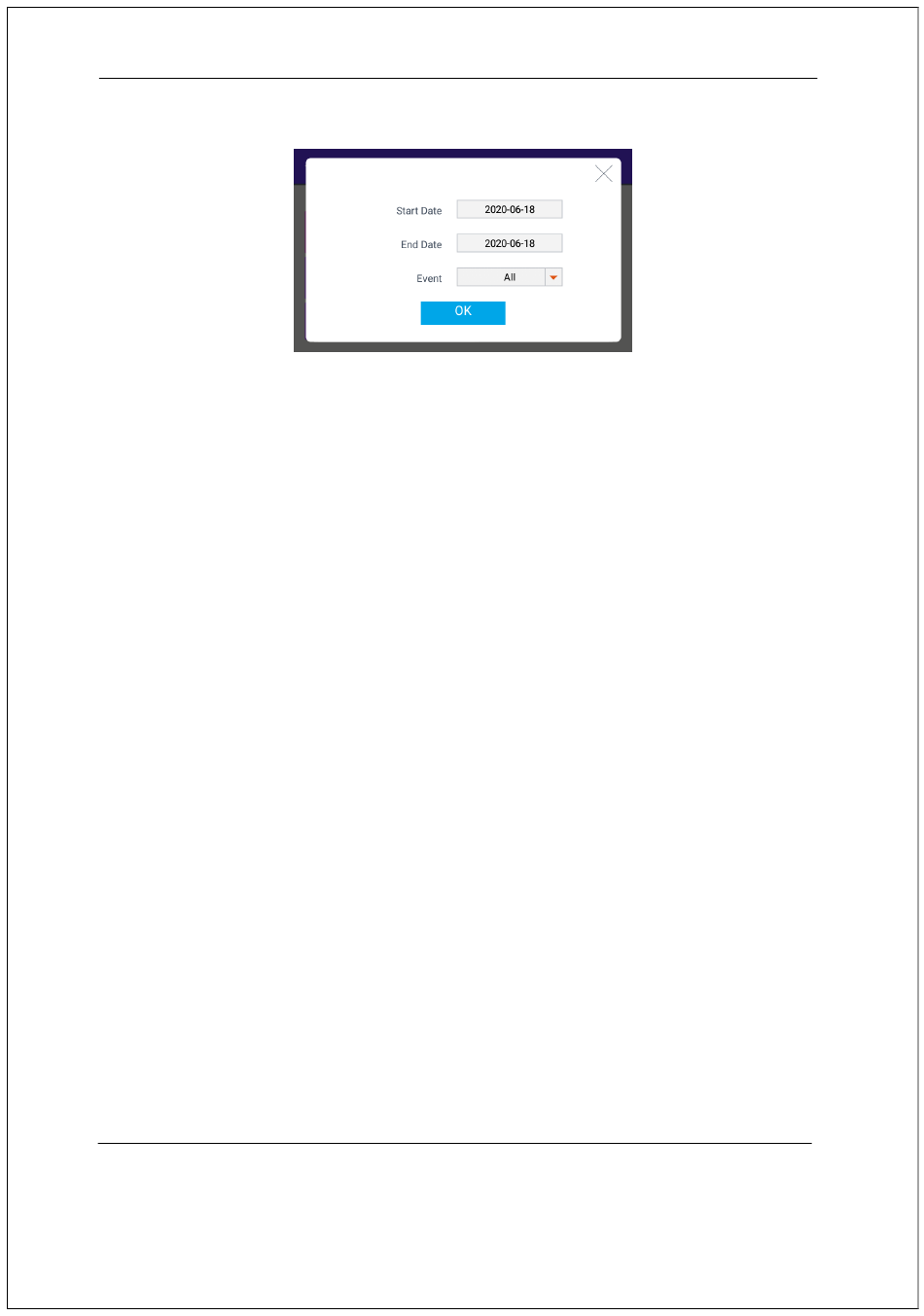

It can set the period to copy the event log.
log to the folder of USB memory.
terminal.
'UbioXiris/config' folder in the terminal.
(The firmware should be in 'UbioXiris' folder from USB memory.
67
