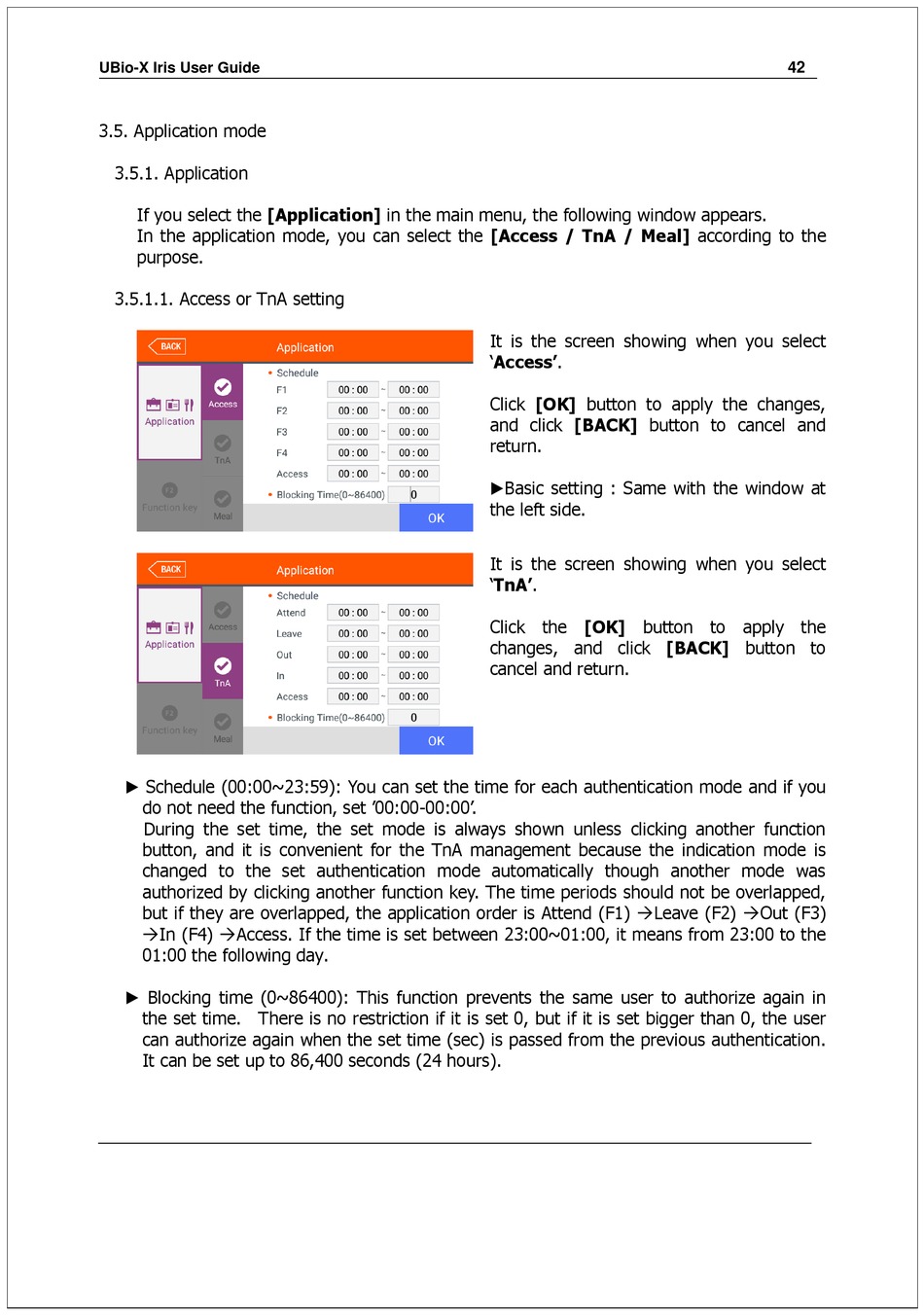

UBio-X Iris User Guide
3.5. Application mode
3.5.1. Application
If you select the [Application] in the main menu, the following window appears.
In the application mode, you can select the [Access / TnA / Meal] according to the
purpose.
3.5.1.1. Access or TnA setting
▶ Schedule (00:00~23:59): You can set the time for each authentication mode and if you
do not need the function, set '00:00-00:00'.
During the set time, the set mode is always shown unless clicking another function
button, and it is convenient for the TnA management because the indication mode is
changed to the set authentication mode automatically though another mode was
authorized by clicking another function key. The time periods should not be overlapped,
but if they are overlapped, the application order is Attend (F1) Leave (F2) Out (F3)
In (F4) Access. If the time is set between 23:00~01:00, it means from 23:00 to the
01:00 the following day.
▶ Blocking time (0~86400): This function prevents the same user to authorize again in
the set time. There is no restriction if it is set 0, but if it is set bigger than 0, the user
can authorize again when the set time (sec) is passed from the previous authentication.
It can be set up to 86,400 seconds (24 hours).
It is the screen showing when you select
'Access'.
Click [OK] button to apply the changes,
and click [BACK] button to cancel and
return.
▶Basic setting : Same with the window at
the left side.
It is the screen showing when you select
'TnA'.
Click the [OK] button to apply the
changes, and click [BACK] button to
cancel and return.
