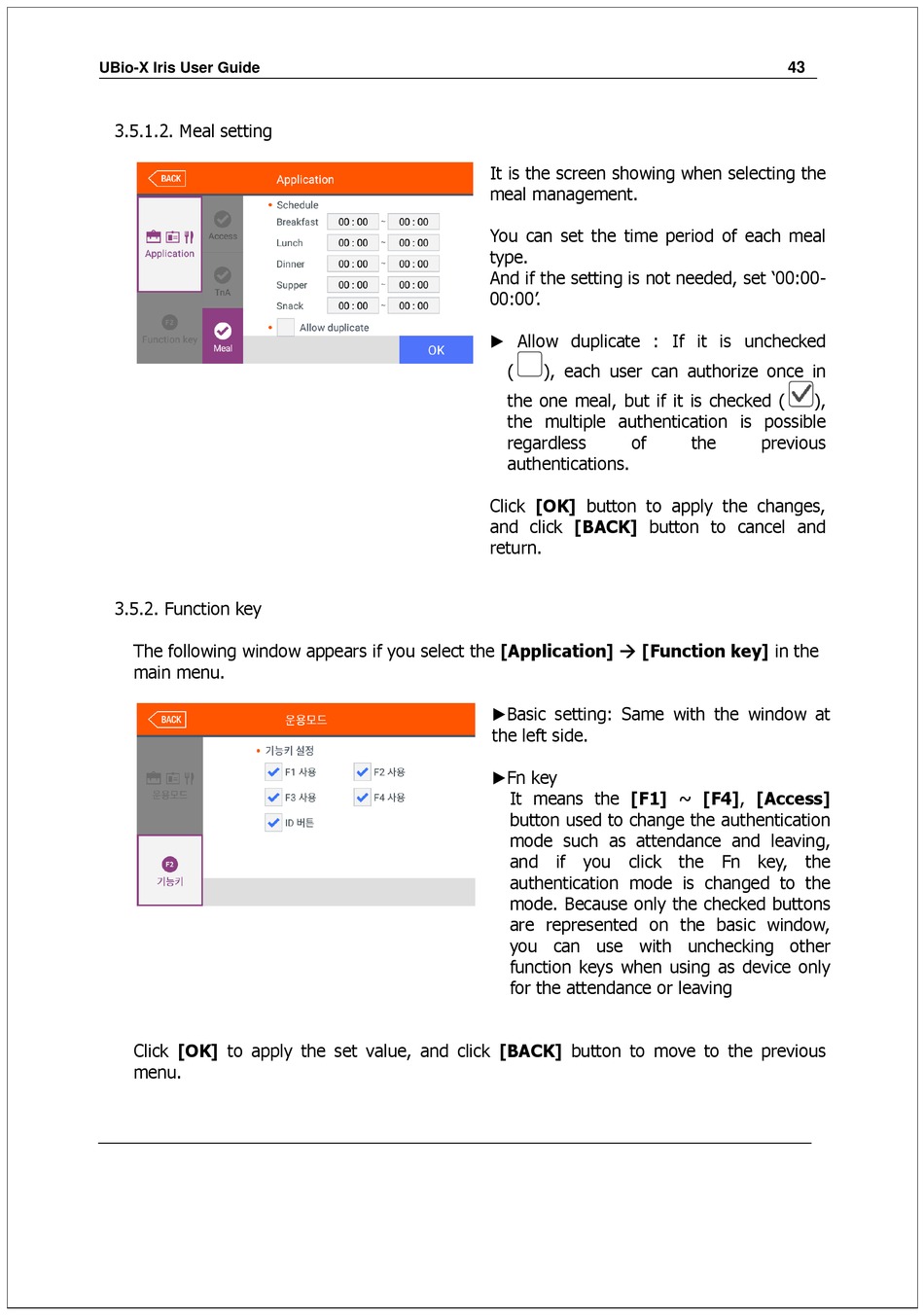

Union Community UBio-X Iris User Manual page 43

UBio-X Iris User Guide
3.5.1.2. Meal setting
3.5.2. Function key
The following window appears if you select the [Application]  [Function key] in the
main menu.
Click [OK] to apply the set value, and click [BACK] button to move to the previous
menu.
It is the screen showing when selecting the
meal management.
You can set the time period of each meal
type.
And if the setting is not needed, set '00:00-
00:00'.
▶ Allow duplicate : If it is unchecked
( ), each user can authorize once in
the one meal, but if it is checked (
the multiple authentication is possible
regardless of
authentications.
Click [OK] button to apply the changes,
and click [BACK] button to cancel and
return.
▶Basic setting: Same with the window at
the left side.
▶Fn key
It means the [F1] ~ [F4], [Access]
button used to change the authentication
mode such as attendance and leaving,
and if you click the Fn key, the
authentication mode is changed to the
mode. Because only the checked buttons
are represented on the basic window,
you can use with unchecking other
function keys when using as device only
for the attendance or leaving
43
),
