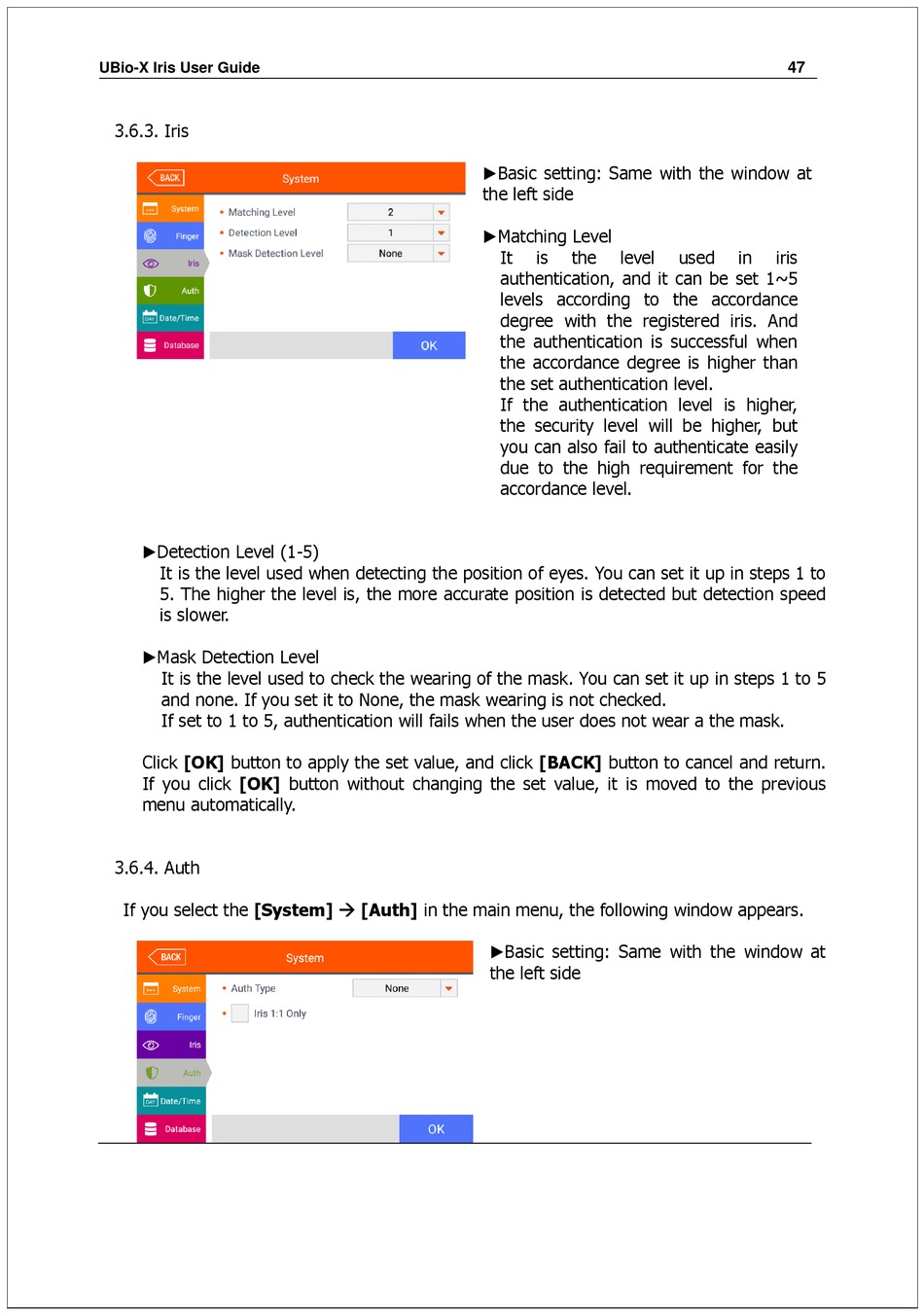

Union Community UBio-X Iris User Manual page 47

UBio-X Iris User Guide
3.6.3. Iris
▶Detection Level (1-5)
It is the level used when detecting the position of eyes. You can set it up in steps 1 to
5. The higher the level is, the more accurate position is detected but detection speed
is slower.
▶Mask Detection Level
It is the level used to check the wearing of the mask. You can set it up in steps 1 to 5
and none. If you set it to None, the mask wearing is not checked.
If set to 1 to 5, authentication will fails when the user does not wear a the mask.
Click [OK] button to apply the set value, and click [BACK] button to cancel and return.
If you click [OK] button without changing the set value, it is moved to the previous
menu automatically.
3.6.4. Auth
If you select the [System]  [Auth] in the main menu, the following window appears.
▶Basic setting: Same with the window at
the left side
▶Matching Level
It is the level
authentication, and it can be set 1~5
levels according to the accordance
degree with the registered iris. And
the authentication is successful when
the accordance degree is higher than
the set authentication level.
If the authentication level is higher,
the security level will be higher, but
you can also fail to authenticate easily
due to the high requirement for the
accordance level.
▶Basic setting: Same with the window at
the left side
47
used in iris
