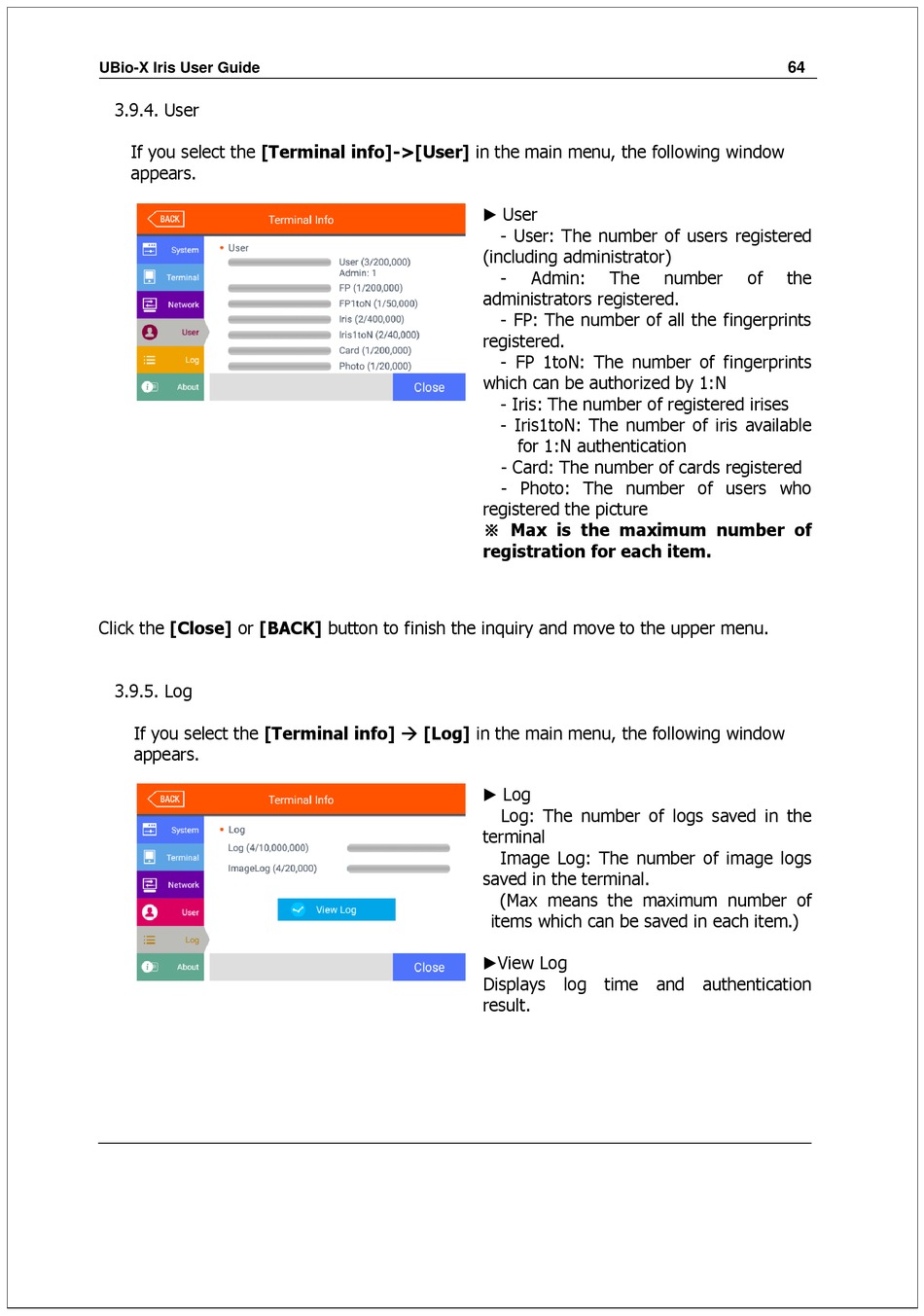

Union Community UBio-X Iris User Manual page 64

UBio-X Iris User Guide
3.9.4. User
If you select the [Terminal info]->[User] in the main menu, the following window
appears.
Click the [Close] or [BACK] button to finish the inquiry and move to the upper menu.
3.9.5. Log
If you select the [Terminal info]  [Log] in the main menu, the following window
appears.
▶ User
- User: The number of users registered
(including administrator)
- Admin: The
administrators registered.
- FP: The number of all the fingerprints
registered.
- FP 1toN: The number of fingerprints
which can be authorized by 1:N
- Iris: The number of registered irises
- Iris1toN: The number of iris available
for 1:N authentication
- Card: The number of cards registered
- Photo: The number of users who
registered the picture
※ Max is the maximum number of
registration for each item.
▶ Log
Log: The number of logs saved in the
terminal
Image Log: The number of image logs
saved in the terminal.
(Max means the maximum number of
items which can be saved in each item.)
▶View Log
Displays log time and authentication
result.
64
