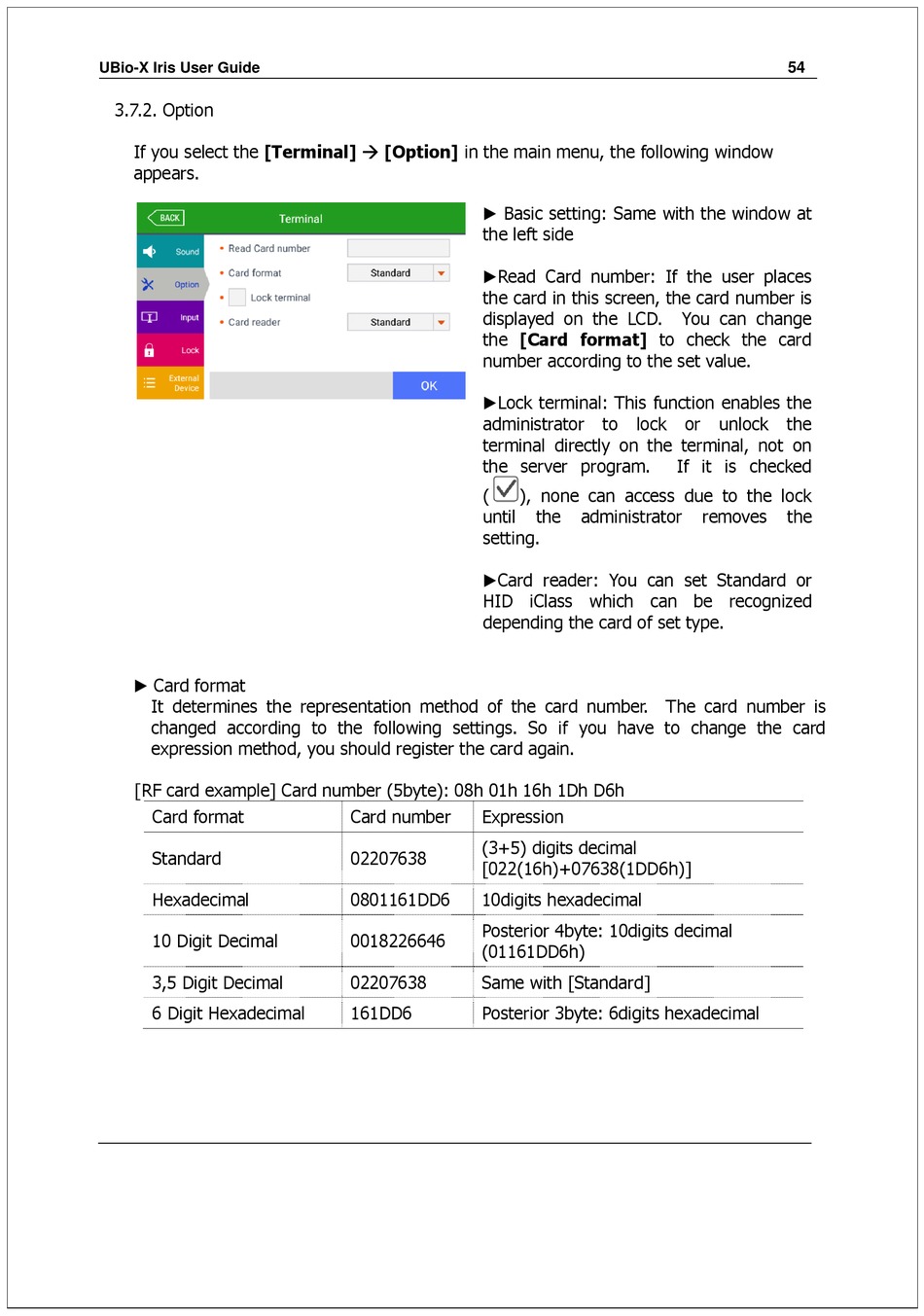

3.7.2. Option
If you select the [Terminal]  [Option] in the main menu, the following window
appears.
▶ Card format
It determines the representation method of the card number. The card number is
changed according to the following settings. So if you have to change the card
expression method, you should register the card again.
[RF card example] Card number (5byte): 08h 01h 16h 1Dh D6h
Card format
Standard
Hexadecimal
10 Digit Decimal
3,5 Digit Decimal
6 Digit Hexadecimal
▶ Basic setting: Same with the window at
the left side
▶Read Card number: If the user places
the card in this screen, the card number is
displayed on the LCD.
the [Card format] to check the card
number according to the set value.
▶Lock terminal: This function enables the
administrator
terminal directly on the terminal, not on
the server program.
( ), none can access due to the lock
until
setting.
▶Card reader: You can set Standard or
HID iClass which can be recognized
depending the card of set type.
Card number Expression
(3+5) digits decimal
02207638
[022(16h)+07638(1DD6h)]
0801161DD6 10digits hexadecimal
Posterior 4byte: 10digits decimal
0018226646
(01161DD6h)
02207638 Same with [Standard]
161DD6 Posterior 3byte: 6digits hexadecimal
You can change
to lock or
If it is checked
the administrator removes
