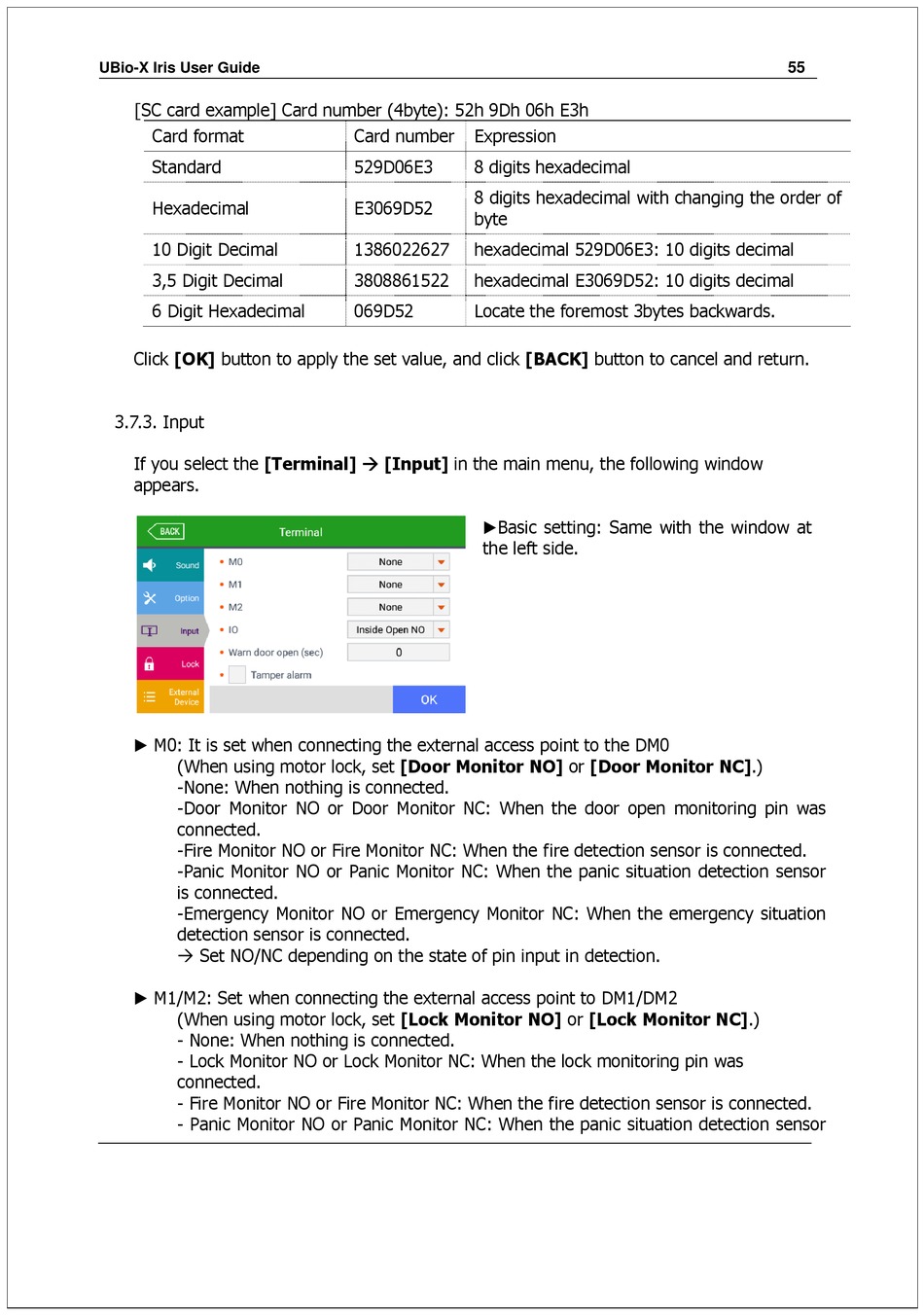

Union Community UBio-X Iris User Manual page 55

UBio-X Iris User Guide
[SC card example] Card number (4byte): 52h 9Dh 06h E3h
Card format
Standard
Hexadecimal
10 Digit Decimal
3,5 Digit Decimal
6 Digit Hexadecimal
Click [OK] button to apply the set value, and click [BACK] button to cancel and return.
3.7.3. Input
If you select the [Terminal]  [Input] in the main menu, the following window
appears.
▶ M0: It is set when connecting the external access point to the DM0
(When using motor lock, set [Door Monitor NO] or [Door Monitor NC].)
-None: When nothing is connected.
-Door Monitor NO or Door Monitor NC: When the door open monitoring pin was
connected.
-Fire Monitor NO or Fire Monitor NC: When the fire detection sensor is connected.
-Panic Monitor NO or Panic Monitor NC: When the panic situation detection sensor
is connected.
-Emergency Monitor NO or Emergency Monitor NC: When the emergency situation
detection sensor is connected.
 Set NO/NC depending on the state of pin input in detection.
▶ M1/M2: Set when connecting the external access point to DM1/DM2
(When using motor lock, set [Lock Monitor NO] or [Lock Monitor NC].)
- None: When nothing is connected.
- Lock Monitor NO or Lock Monitor NC: When the lock monitoring pin was
connected.
- Fire Monitor NO or Fire Monitor NC: When the fire detection sensor is connected.
- Panic Monitor NO or Panic Monitor NC: When the panic situation detection sensor
Card number Expression
529D06E3 8 digits hexadecimal
8 digits hexadecimal with changing the order of
E3069D52
byte
1386022627 hexadecimal 529D06E3: 10 digits decimal
3808861522 hexadecimal E3069D52: 10 digits decimal
069D52 Locate the foremost 3bytes backwards.
▶Basic setting: Same with the window at
the left side.
