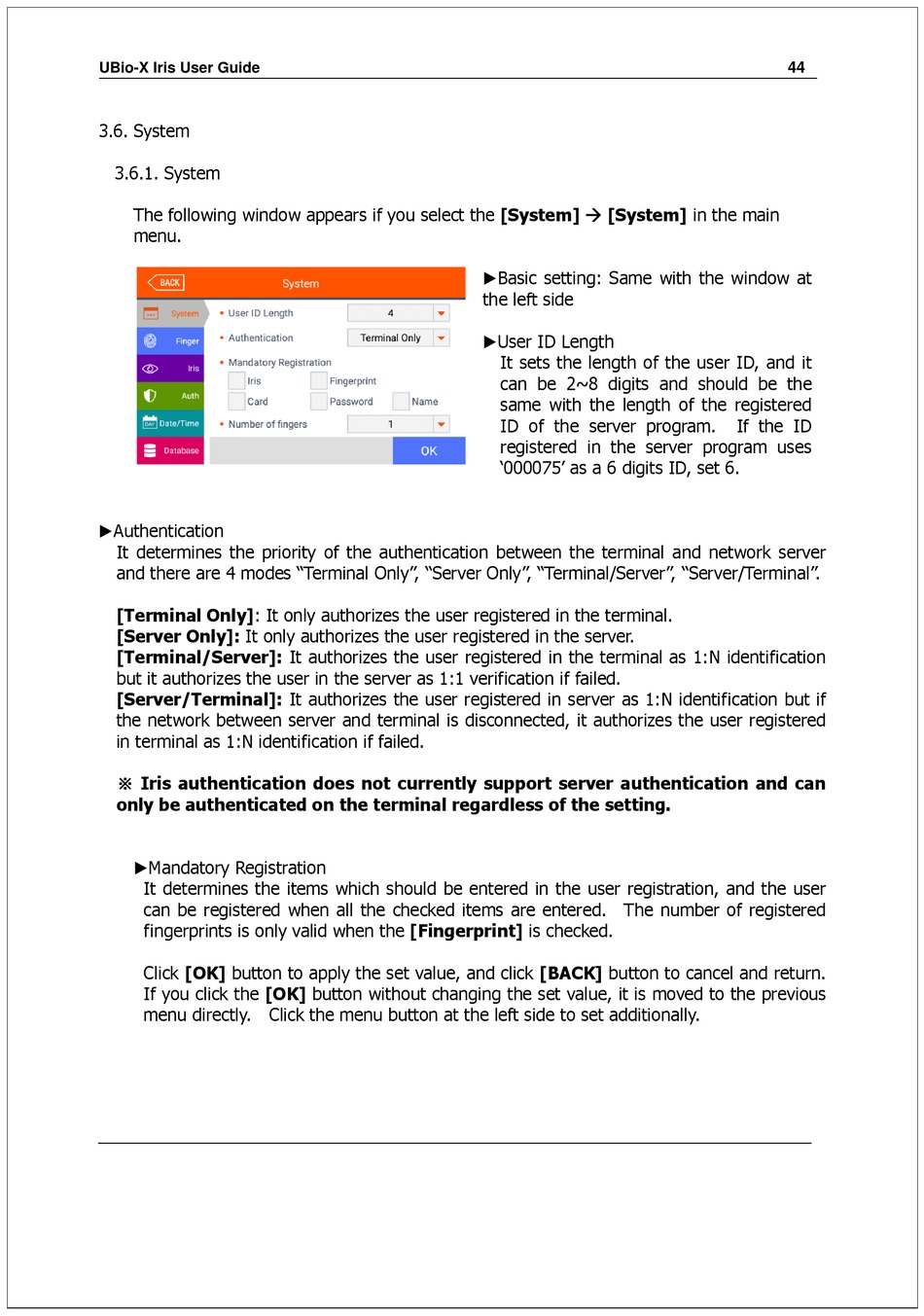

UBio-X Iris User Guide
3.6. System
3.6.1. System
The following window appears if you select the [System]  [System] in the main
menu.
▶Authentication
It determines the priority of the authentication between the terminal and network server
and there are 4 modes "Terminal Only", "Server Only", "Terminal/Server", "Server/Terminal".
[Terminal Only]: It only authorizes the user registered in the terminal.
[Server Only]: It only authorizes the user registered in the server.
[Terminal/Server]: It authorizes the user registered in the terminal as 1:N identification
but it authorizes the user in the server as 1:1 verification if failed.
[Server/Terminal]: It authorizes the user registered in server as 1:N identification but if
the network between server and terminal is disconnected, it authorizes the user registered
in terminal as 1:N identification if failed.
※ Iris authentication does not currently support server authentication and can
only be authenticated on the terminal regardless of the setting.
▶Mandatory Registration
It determines the items which should be entered in the user registration, and the user
can be registered when all the checked items are entered. The number of registered
fingerprints is only valid when the [Fingerprint] is checked.
Click [OK] button to apply the set value, and click [BACK] button to cancel and return.
If you click the [OK] button without changing the set value, it is moved to the previous
menu directly. Click the menu button at the left side to set additionally.
▶Basic setting: Same with the window at
the left side
▶User ID Length
It sets the length of the user ID, and it
can be 2~8 digits and should be the
same with the length of the registered
ID of the server program.
registered in the server program uses
'000075' as a 6 digits ID, set 6.
44
If the ID
