UBio-X Iris User Guide
※ You can register 10 fingerprints at most for one ID, and you cannot register more than 10
IDs.
If the registration is failed 2~3 times despite the proper fingerprint registration method, it is
recommended to use iris, password, or card.
※ The similar fingerprint check on registration should be verified for the registered
fingerprints on the terminal side only.
If the same fingerprint is registered from each terminal and UNIS with the different User ID,
the server doesn't check the similarity for the retrieved fingerprint from the terminal.
In this case, the same fingerprint can be authenticated with the different user ID, so you have
to watch out this.
3.3.1.4. Iris registration
Register with referring to '1.6 How to register and authenticate the iris properly'.

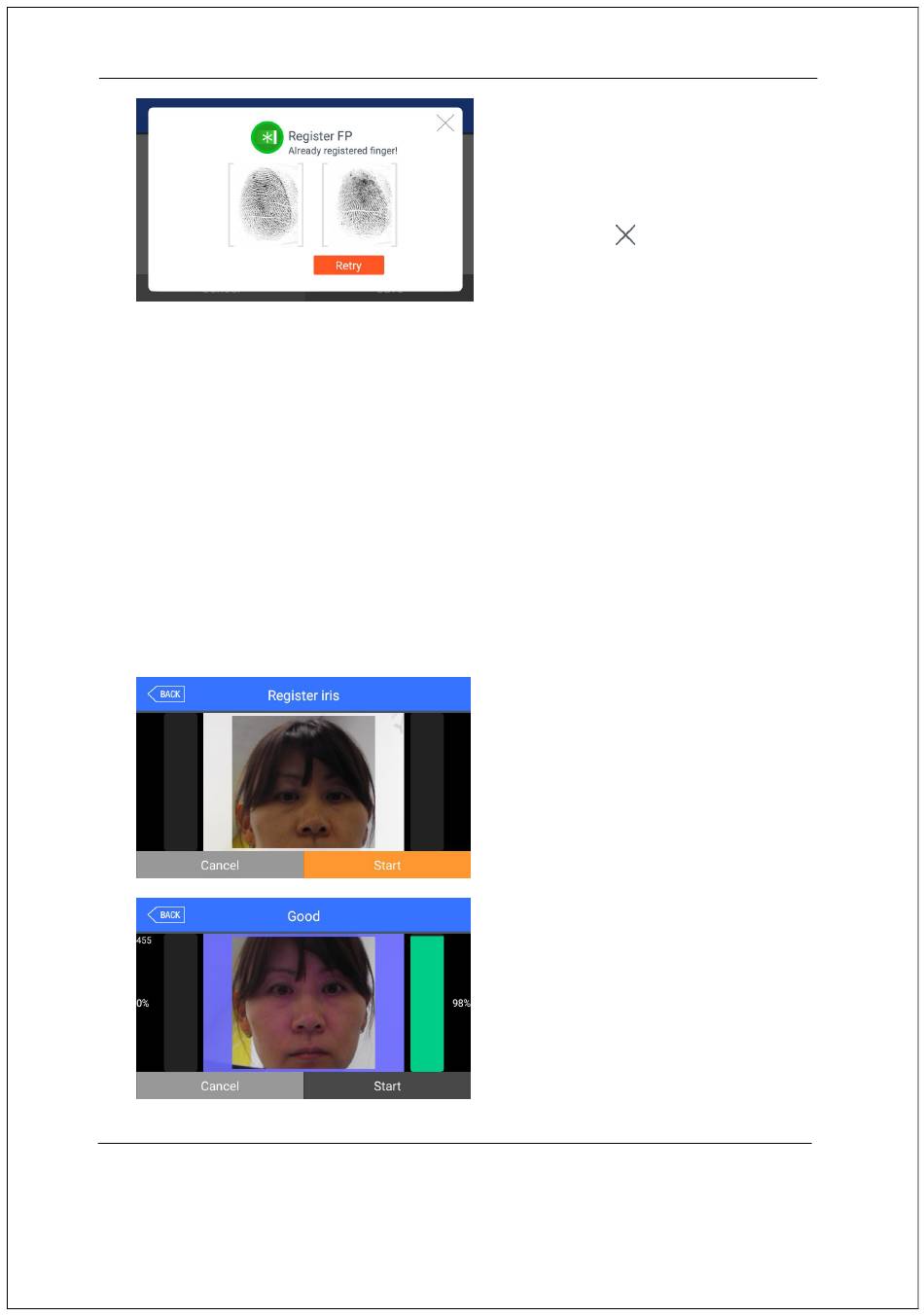

If it is similar with the fingerprint
already registered,
"Already registered finger!" appears
like the left side, and you can start
again from the procedure of ② if you
click the [Retry] button.
You can click [ ] button to cancel
and return to the previous menu.
① Select [Start] button to register the
iris.
After aligning the iris with the iris outline
as shown in the left screen, follow the
guide message displayed on the screen
and look at the front.
② If the iris is recognized normally as
shown in the left screen, the green bars on
both sides will rise and the iris will be
registered. At this time, do not blink the
eyes and stop as they are so that the
registration can be done well.
30
