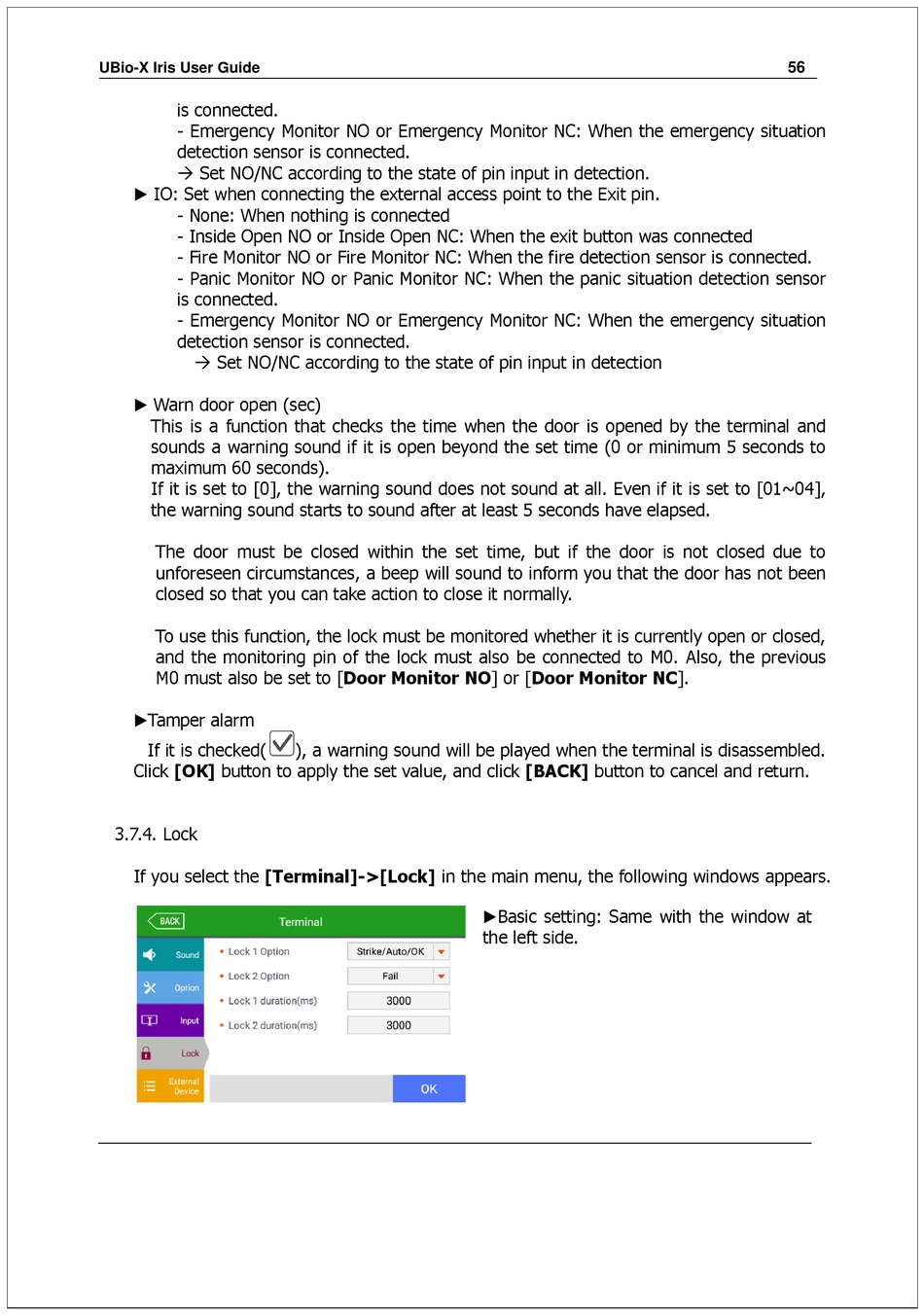

Union Community UBio-X Iris User Manual page 56

UBio-X Iris User Guide
is connected.
- Emergency Monitor NO or Emergency Monitor NC: When the emergency situation
detection sensor is connected.
 Set NO/NC according to the state of pin input in detection.
▶ IO: Set when connecting the external access point to the Exit pin.
- None: When nothing is connected
- Inside Open NO or Inside Open NC: When the exit button was connected
- Fire Monitor NO or Fire Monitor NC: When the fire detection sensor is connected.
- Panic Monitor NO or Panic Monitor NC: When the panic situation detection sensor
is connected.
- Emergency Monitor NO or Emergency Monitor NC: When the emergency situation
detection sensor is connected.
 Set NO/NC according to the state of pin input in detection
▶ Warn door open (sec)
This is a function that checks the time when the door is opened by the terminal and
sounds a warning sound if it is open beyond the set time (0 or minimum 5 seconds to
maximum 60 seconds).
If it is set to [0], the warning sound does not sound at all. Even if it is set to [01~04],
the warning sound starts to sound after at least 5 seconds have elapsed.
The door must be closed within the set time, but if the door is not closed due to
unforeseen circumstances, a beep will sound to inform you that the door has not been
closed so that you can take action to close it normally.
To use this function, the lock must be monitored whether it is currently open or closed,
and the monitoring pin of the lock must also be connected to M0. Also, the previous
M0 must also be set to [Door Monitor NO] or [Door Monitor NC].
▶Tamper alarm
If it is checked(
Click [OK] button to apply the set value, and click [BACK] button to cancel and return.
3.7.4. Lock
If you select the [Terminal]->[Lock] in the main menu, the following windows appears.
), a warning sound will be played when the terminal is disassembled.
▶Basic setting: Same with the window at
the left side.
