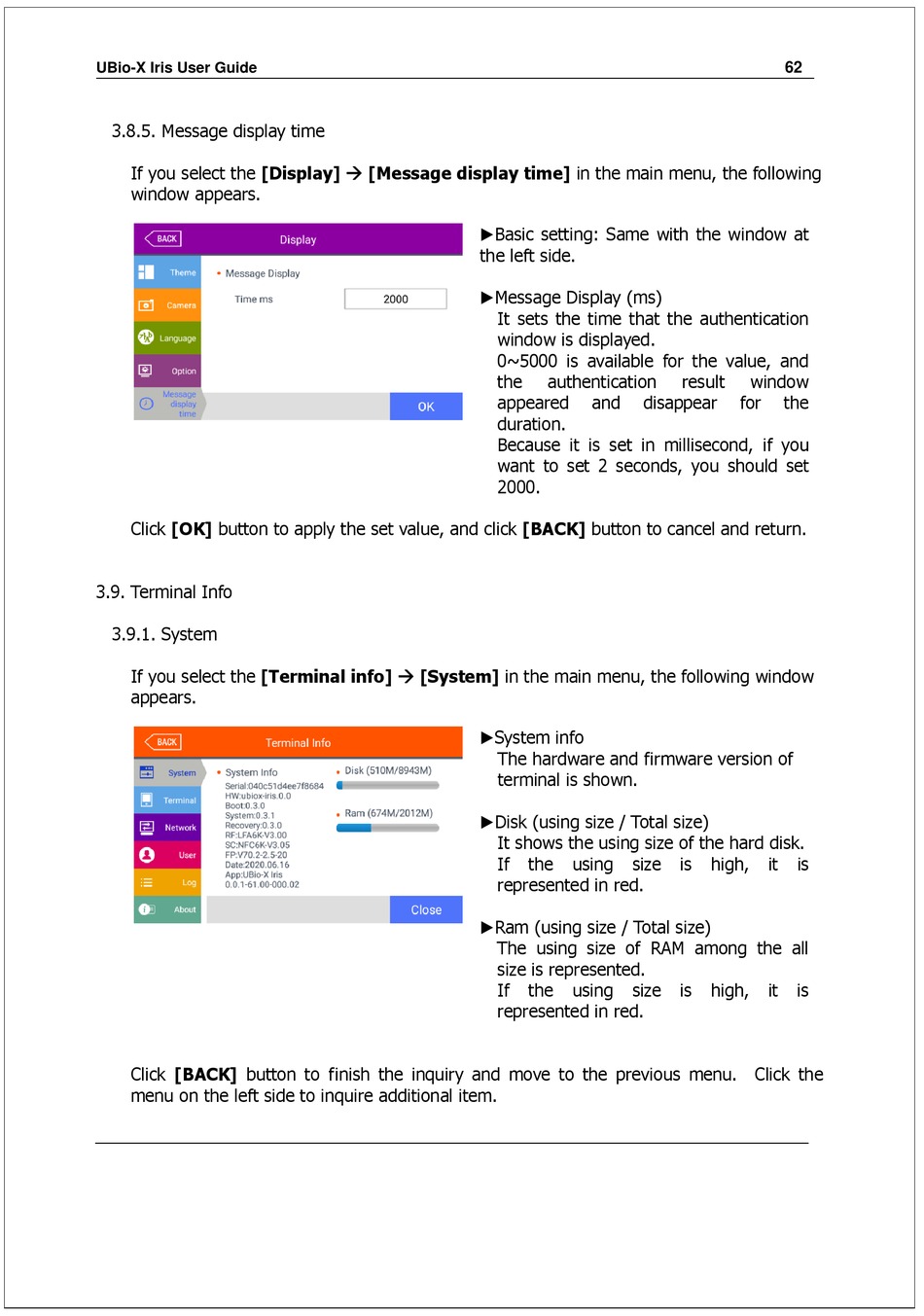

Union Community UBio-X Iris User Manual page 62

UBio-X Iris User Guide
3.8.5. Message display time
If you select the [Display]  [Message display time] in the main menu, the following
window appears.
Click [OK] button to apply the set value, and click [BACK] button to cancel and return.
3.9. Terminal Info
3.9.1. System
If you select the [Terminal info]  [System] in the main menu, the following window
appears.
Click [BACK] button to finish the inquiry and move to the previous menu. Click the
menu on the left side to inquire additional item.
▶Basic setting: Same with the window at
the left side.
▶Message Display (ms)
It sets the time that the authentication
window is displayed.
0~5000 is available for the value, and
the authentication
appeared and disappear
duration.
Because it is set in millisecond, if you
want to set 2 seconds, you should set
2000.
▶System info
The hardware and firmware version of
terminal is shown.
▶Disk (using size / Total size)
It shows the using size of the hard disk.
If the using size
represented in red.
▶Ram (using size / Total size)
The using size of RAM among the all
size is represented.
If the using size
represented in red.
62
