Specifications - Altronix ALTV248220 Series Installation Manual

Altronix ALTV248220 Series CCTV Power Supplies provide 24VAC or 28VAC distributed via eight (8) fuse or PTC
protected outputs for powering CCTV cameras, heaters and other video accessories.

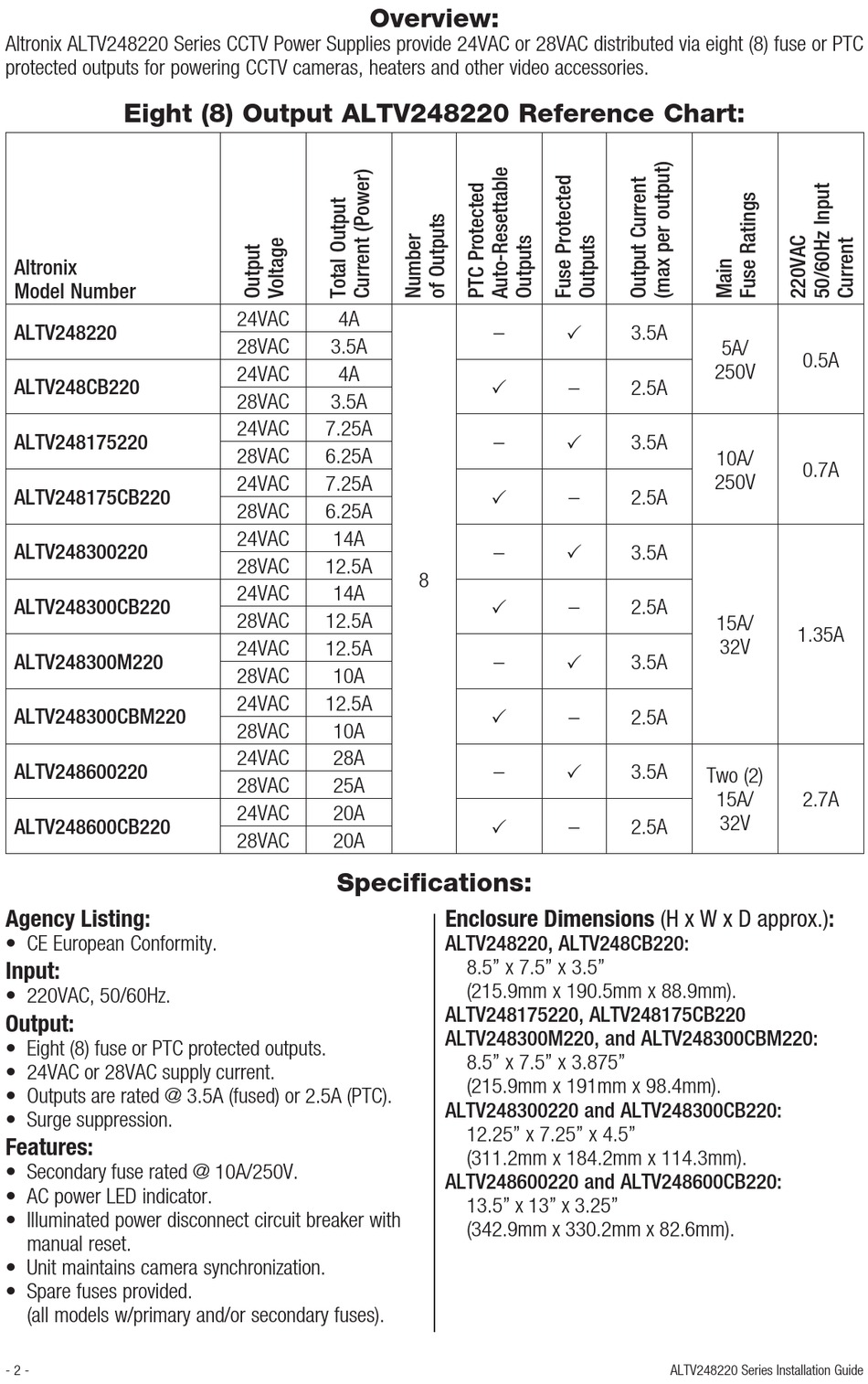

Eight (8) Output ALTV248220 Reference Chart:
Altronix
Model Number
ALTV248220
ALTV248CB220
ALTV248175220
ALTV248175CB220
ALTV248300220
ALTV248300CB220
ALTV248300M220
ALTV248300CBM220
ALTV248600220
ALTV248600CB220
Agency Listing:
• CE European Conformity.
Input:
• 220VAC, 50/60Hz.
Output:
• Eight (8) fuse or PTC protected outputs.
• 24VAC or 28VAC supply current.
• Outputs are rated @ 3.5A (fused) or 2.5A (PTC).
• Surge suppression.
Features:
• Secondary fuse rated @ 10A/250V.
• AC power LED indicator.
• Illuminated power disconnect circuit breaker with
manual reset.
• Unit maintains camera synchronization.
• Spare fuses provided.
(all models w/primary and/or secondary fuses).
- 2 -
Overview:
24VAC 4A
28VAC 3.5A
24VAC 4A
28VAC 3.5A
24VAC 7.25A
28VAC 6.25A
24VAC 7.25A
28VAC 6.25A
24VAC 14A
28VAC 12.5A
24VAC 14A
28VAC 12.5A
24VAC 12.5A
28VAC 10A
24VAC 12.5A
28VAC 10A
24VAC 28A
28VAC 25A
24VAC 20A
28VAC 20A

Specifications:

–
P
–
P
–
P
–
P
–
P
8
–
P
–
P
–
P
–
P
–
P
Enclosure Dimensions (H x W x D approx.):
ALTV248220, ALTV248CB220:
8.5" x 7.5" x 3.5"
(215.9mm x 190.5mm x 88.9mm).
ALTV248175220, ALTV248175CB220
ALTV248300M220, and ALTV248300CBM220:
8.5" x 7.5" x 3.875"
(215.9mm x 191mm x 98.4mm).
ALTV248300220 and ALTV248300CB220:
12.25" x 7.25" x 4.5"
(311.2mm x 184.2mm x 114.3mm).
ALTV248600220 and ALTV248600CB220:
13.5" x 13" x 3.25"
(342.9mm x 330.2mm x 82.6mm).
3.5A
5A/
250V
2.5A
3.5A
10A/
250V
2.5A
3.5A
2.5A
15A/
32V
3.5A
2.5A
3.5A
Two (2)
15A/
32V
2.5A
ALTV248220 Series Installation Guide
0.5A
0.7A
1.35A
2.7A
