1.25" (31.75mm)
1.25" (31.75mm)
3.85" (97.79mm)
- 10 -

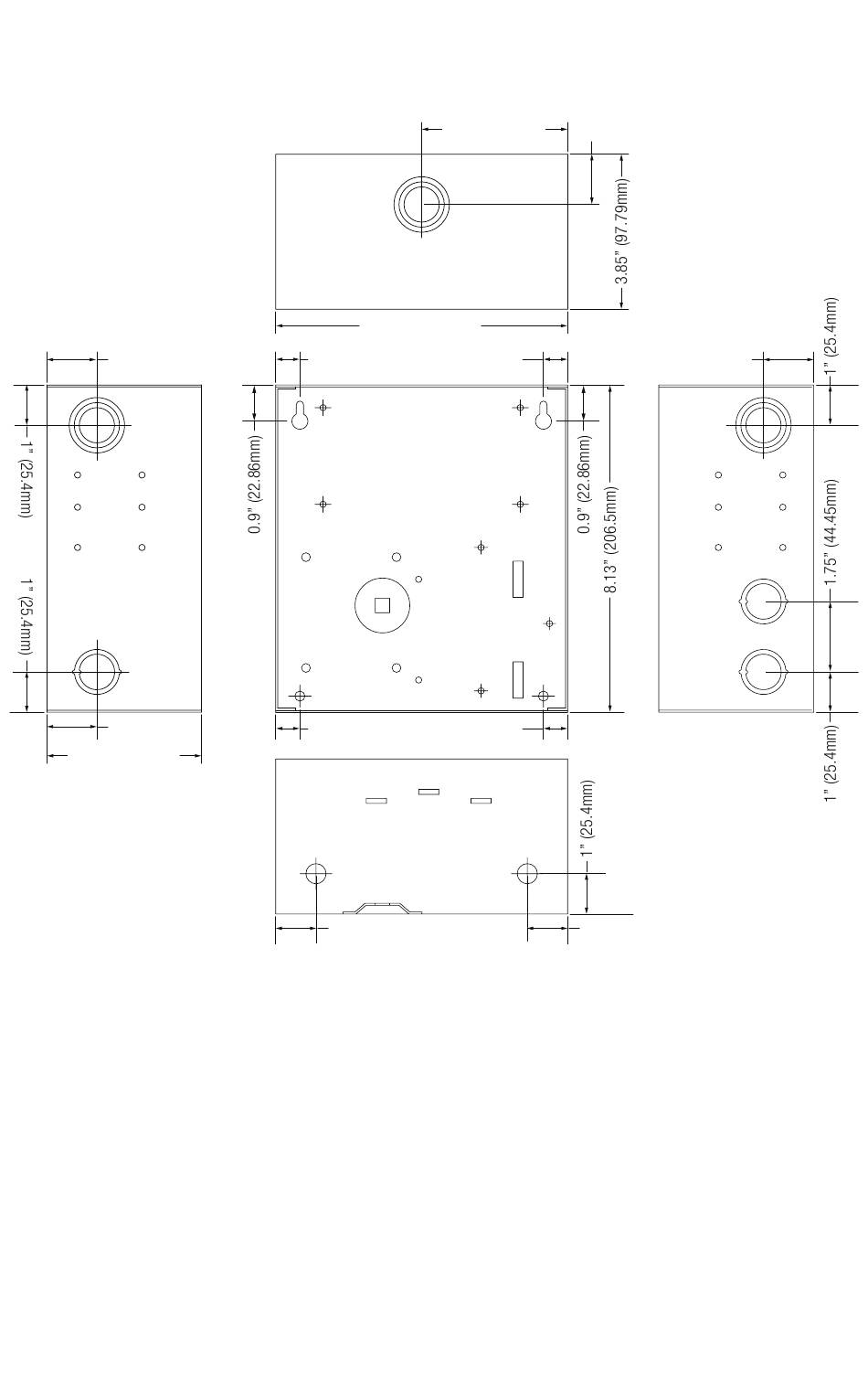

Enclosure Dimensions (H x W x D) for:
• ALTV248300M220 • ALTV248300CBM220
8.5" x 7.5" x 3.875" (215.9mm x 191mm x 98.4mm)
7.25" (184.15mm)
0.6" (15.24mm) 0.6" (15.24mm)
0.6" (15.24mm) 0.6" (15.24mm)
1" (25.4mm)
3.63" (92.2mm)
1.25" (31.75mm)
1" (25.4mm)
1.25" (31.75mm)
ALTV248220 Series Installation Guide
