Altronix ALTV248220 Series Installation Manual page 7

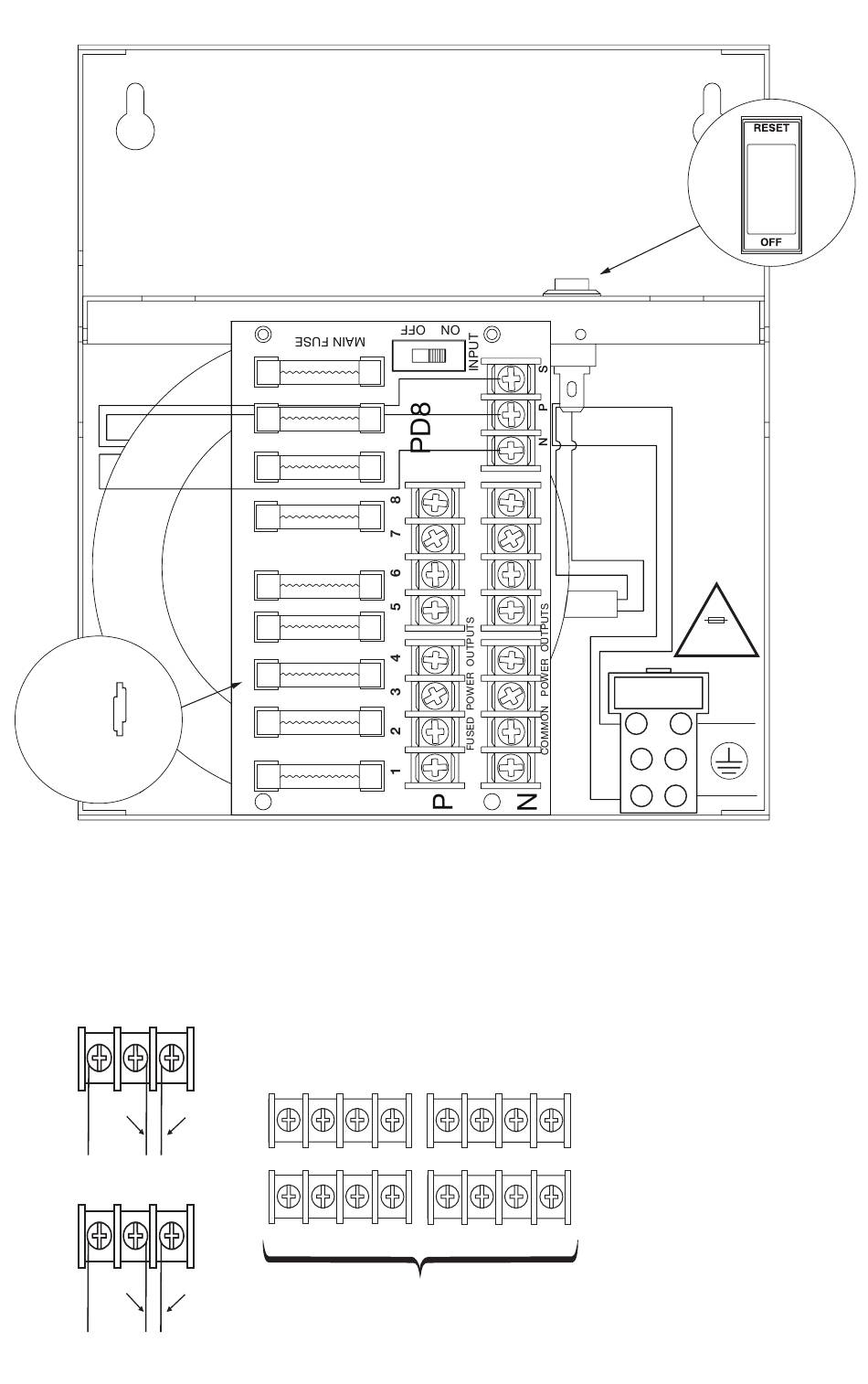

Fig. 4 - ALTV248300M220 and ALTV248300CBM220
PTC
used on
ALTV248300CBM220
Voltage Selection
Configuration
N P S
24VAC
Output
(Yellow) (Black)
N P S
28VAC
Output
(Black) (Yellow)
ALTV248220 Series Installation Guide
Terminal Blocks for Fig. 4
1 2 3 4
P
N
24VAC or 28VAC fuse or PTC
protected outputs 1 through 8.
Illuminated
Power Switch
5 6 7 8
4A
250V
Input
220VAC
50/60Hz,
1.35A
- 7 -
