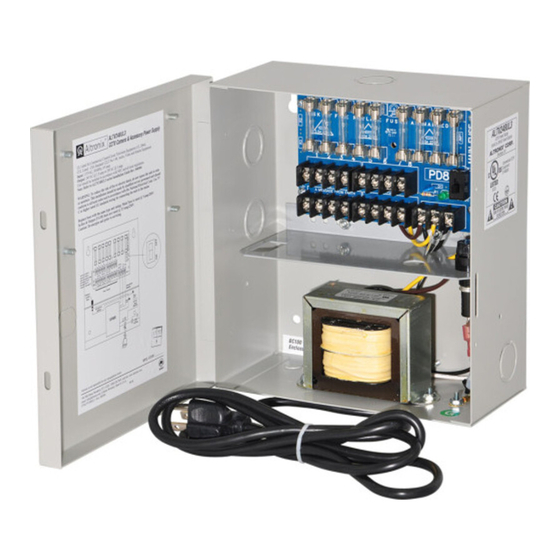

ALTV248UL3 Series
CCTV Power Supplies with
Factory installed 3-wire line cord
Models Include:
ALTV248UL3
- 24VAC @ 3.5A (85VA)
or 28VAC @ 3A (85VA).
- Eight (8) Fuse Protected Outputs.
ALTV248175UL3
- 24VAC @ 7A (175VA)
or 28VAC @ 6.25A (175VA).
- Eight (8) Fuse Protected Outputs.
ALTV248300UL3
- 24VAC @ 12.5A (300VA)
or 28VAC @ 10A (280VA).
- Eight (8) Fuse Protected Outputs.
ALTV248300ULM3
- 24VAC @ 12.5A (300VA)
or 28VAC @ 10A (280VA).
- Eight (8) Fuse Protected Outputs.
ALTV248600UL3
- 24VAC @ 25A (600VA)
or 28VAC @ 20A (560VA).
- Eight (8) Fuse Protected Outputs.
Installation Guide
Rev. 040506
Installing Company: _______________ Service Rep. Name: __________________________________
Address: _____________________________________________ Phone #: __________________
ALTV248ULCB3
- 24VAC @ 3.5A (85VA)
or 28VAC @ 3A (85VA).
- Eight (8) PTC Protected Outputs.
ALTV248175ULCB3
- 24VAC @ 7A (175VA)
or 28VAC @ 6.25A (175VA).
- Eight (8) PTC Protected Outputs.
ALTV248300ULCB3
- 24VAC @ 12.5A (300VA)
or 28VAC @ 10A (280VA).
- Eight (8) PTC Protected Outputs.
ALTV248300ULCBM3
- 24VAC @ 12.5A (300VA)
or 28VAC @ 10A (280VA).
- Eight (8) PTC Protected Outputs.
ALTV248600ULCB3
- 24VAC @ 25A (600VA)
or 28VAC @ 20A (560VA).
- Eight (8) PTC Protected Outputs.
More than just power.
TM
Advertisement
Related Manuals for Altronix ALTV248UL3 Series
Summary of Contents for Altronix ALTV248UL3 Series
- Page 1 ALTV248UL3 Series CCTV Power Supplies with Factory installed 3-wire line cord Models Include: ALTV248UL3 ALTV248ULCB3 - 24VAC @ 3.5A (85VA) - 24VAC @ 3.5A (85VA) or 28VAC @ 3A (85VA). or 28VAC @ 3A (85VA). - Eight (8) Fuse Protected Outputs.
-
Page 2: Specifications
Overview: Altronix ALTV248UL3 Series CCTV Power Supplies provide 24VAC or 28VAC distributed via eight (8) fuse or PTC protected outputs for powering CCTV cameras, heaters and other video accessories. Eight (8) Output ALTV248UL3 Reference Chart: Altronix Model Number 24VAC 3.5A 3.5A/... -
Page 3: Installation Instructions
Replace fuses with the same type and rating (refer to Eight (8) Output ALTV248UL3 Reference Chart, pg. 2). Terminal Identification: PD4/PD4CB - Distribution Module 1P - 4P AC output. 1N - 4N AC output. PD8/PD8CB - Distribution Module 1P - 8P AC output. 1N - 8N AC output. ALTV248UL3 Series Installation Guide - 3 -... - Page 4 2 through 8) COMMON POWER OUTPUTS Class 1 Outputs non power- limited Black Lead White Lead Green Lead (ground) XFMR Voltage Selection 24VAC Configuration Output (Yellow) (Black) Input 115VAC, 50/60Hz 28VAC Output (Black) (Yellow) - 4 - ALTV248UL3 Series Installation Guide...
- Page 5 24VAC configuration Class 2 Not Wet/Class 3 Wet 28VAC configuration Class 1 non power- limited Black Lead White Lead Green Lead (ground) XFMR Input 115VAC, 50/60Hz Voltage Selection Configuration 24VAC Output (Yellow) (Black) 28VAC Output (Black) (Yellow) ALTV248UL3 Series Installation Guide - 5 -...
- Page 6 Class 1 Outputs Illuminated Power Disconnect Circuit Breaker with manual reset non power- limited Black Lead White Lead Green Lead (ground) Voltage Selection Configuration 24VAC Output Input 115VAC, 50/60Hz (Yellow) (Black) 28VAC Output (Black) (Yellow) - 6 - ALTV248UL3 Series Installation Guide...
- Page 7 Class 2 Not Wet/Class 3 Wet Illuminated Power Disconnect Circuit Breaker with manual reset non power- limited Black Lead White Lead Green Lead (ground) Voltage Selection Configuration 24VAC Input 115VAC, Output 50/60Hz (Yellow) (Black) 28VAC Output (Black) (Yellow) ALTV248UL3 Series Installation Guide - 7 -...
- Page 8 8P & N COMMON POWER OUTPUTS for outputs 2 through 8) Class 1 Outputs Black Lead White Green Lead Lead (ground) Voltage Selection Configuration 24VAC Output Input 115VAC, 50/60Hz (Yellow) (Black) 28VAC Output (Black) (Yellow) - 8 - ALTV248UL3 Series Installation Guide...
- Page 9 2 COMMON POWER OUTPUTS through 8) Class 2 Not Wet/Class 3 Wet Black Lead White Green Lead Lead (ground) Voltage Selection Configuration 24VAC Output Input 115VAC, 50/60Hz (Yellow) (Black) 28VAC Output (Black) (Yellow) ALTV248UL3 Series Installation Guide - 9 -...
- Page 10 Fig. 7 - ALTV248300ULM3 Fig. 7a Illuminated Power Disconnect Circuit Breaker with manual reset Transformer underneath power distribution board Green Lead (ground) Voltage Selection Input 115VAC, Configuration 50/60Hz 24VAC Output (Yellow) (Black) 28VAC Output (Black) (Yellow) - 10 - ALTV248UL3 Series Installation Guide...
- Page 11 Fig. 8 - ALTV248300ULCBM3 Fig. 8a Illuminated Power Disconnect Circuit Breaker with manual reset Transformer underneath power distribution board Green Lead (ground) Voltage Selection Input 115VAC, Configuration 50/60Hz 24VAC Output (Yellow) (Black) 28VAC Output (Black) (Yellow) ALTV248UL3 Series Installation Guide - 11 -...
- Page 12 Fig. 9a Illuminated Power Disconnect Circuit Breaker with manual reset MAIN FUSE Green Lead (ground) White Lead Black Lead Voltage Selection Input 115VAC, Configuration 50/60Hz 24VAC Output (Yellow) (Black) 28VAC Output (Black) (Yellow) - 12 - ALTV248UL3 Series Installation Guide...
- Page 13 Fig. 10a Illuminated Power Disconnect Circuit Breaker with manual reset MAIN FUSE Green Lead (ground) White Lead Black Lead Voltage Selection Input 115VAC, Configuration 50/60Hz 24VAC Output (Yellow) (Black) 28VAC Output (Black) (Yellow) ALTV248UL3 Series Installation Guide - 13 -...
- Page 14 • ALTV248300ULCBM3 8.5” x 7.5” x 3.875” (215.9mm x 191mm x 98.4mm) 7.25” (184.15mm) 1.25” (31.75mm) 0.6” (15.24mm) 0.6” (15.24mm) 1.25” (31.75mm) 1.25” (31.75mm) 0.6” (15.24mm) 0.6” (15.24mm) 3.85” (97.79mm) 1” (25.4mm) 1” (25.4mm) - 14 - ALTV248UL3 Series Installation Guide...
- Page 15 12” x 7.5” x 4.5” (304.8mm x 190.5mm x 114.3mm) 7.5” (190.5mm) 1.25” (31.75mm) 0.5” (12.7mm) 0.5” (12.7mm) 1.25” (31.75mm) 1.5” (12.7mm) 1” (25.4mm) 4.5” (114.3mm) 7.5” (190.5mm) 4.5” (114.3mm) 1” (25.4mm) 1” (25.4mm) 0.88” (22.4mm) 5.75” (146.1mm) 0.88” (22.4mm) ALTV248UL3 Series Installation Guide - 15 -...
- Page 16 1.0” 1.0” 10.5” (266.7mm) (25.4mm) (25.4mm) Altronix is not responsible for any typographical errors. –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty IIALTV248UL3 Series K30U...
