Isolated Series

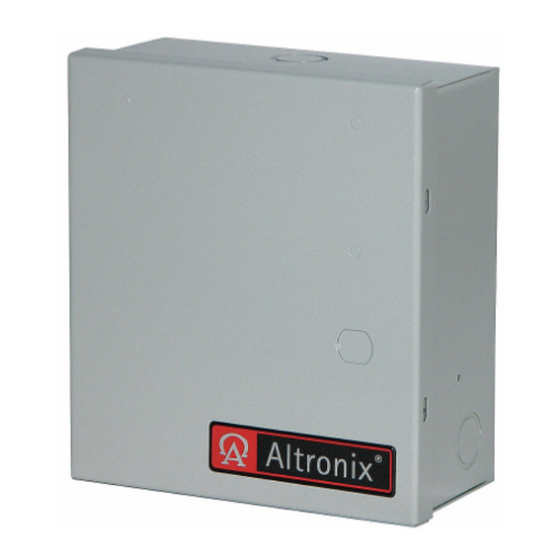

CCTV Power Supplies
Installation Guide
Models Include:
ALTV248ULHi
- 24VAC @ 12.5A total output.
- Eight (8) 1.56A Fuse Protected
Isolated Outputs.
ALTV248ULMi
- 24VAC @ 12.5A total output.
- Eight (8) 1.56A Fuse Protected
Isolated Outputs.
ALTV2416ULi
- 24VAC @ 25A total output.
- Sixteen (16) 1.56A Fuse Protected
Isolated Outputs.
Rev. 113004
ALTV248ULCBHi
- 24VAC @ 12.5A total output.
- Eight (8) 1.56A PTC Protected
Isolated Outputs.
ALTV248ULCBMi
- 24VAC @ 12.5A total output.
- Eight (8) 1.56A PTC Protected
Isolated Outputs.
ALTV2416ULCBi
- 24VAC @ 25A total output.
- Sixteen (16) 1.56A PTC Protected
Isolated Outputs.
More than just power.
TM
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Altronix ALTV248ULHi
Summary of Contents for Altronix ALTV248ULHi
-
Page 1: Installation Guide
Isolated Series CCTV Power Supplies Installation Guide Models Include: ALTV248ULHi ALTV248ULCBHi - 24VAC @ 12.5A total output. - 24VAC @ 12.5A total output. - Eight (8) 1.56A Fuse Protected - Eight (8) 1.56A PTC Protected Isolated Outputs. Isolated Outputs. ALTV248ULMi ALTV248ULCBMi - 24VAC @ 12.5A total output. -
Page 2: Specifications
Overview: Altronix Isolated CCTV Power Supplies provide 24VAC distributed via eight (8) or sixteen (16) fuse or PTC protected isolated outputs for powering CCTV cameras, heaters, and other video accessories. Isolated Power Supply Reference Chart: PTC Protected auto-resettable Outputs (Class 2... -
Page 3: Terminal Identification
Caution: Equipment to be installed/serviced by authorized/trained personnel only. Shut branch circuit power before installing/servicing equipment. WARNING: To reduce the risk of fire or electric shock, do not expose the unit to rain or moisture. This installation should be made by qualified service personnel and should conform to the National Electrical Code and all local codes. - Page 4 - 4 - UL Listed Isolated Series...
- Page 5 UL Listed Isolated Series - 5 -...
- Page 6 - 6 - UL Listed Isolated Series...
- Page 7 Enclosure Dimensions (H x W x D) for: • ALTV248ULMi • ALTV248ULCBMi 8.5” x 7.5” x 3.875” (215.9mm x 191mm x 98.4mm) 3.63” (92.2mm) 1.25” (31.75mm) 3.85” (97.79mm) 7.25” (184.15mm) 0.6” 1.25” (15.24mm) 0.6” 1.25” (31.75mm) (31.75mm) (15.24mm) 1” 1” (25.4mm) (25.4mm) 0.9”...
- Page 8 (267mm) (25mm) Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty | Made in U.S.A. MEMBER IIULisolatedSeries D06R - 8 -...
