Altronix ALTV248220 Series Installation Manual page 4

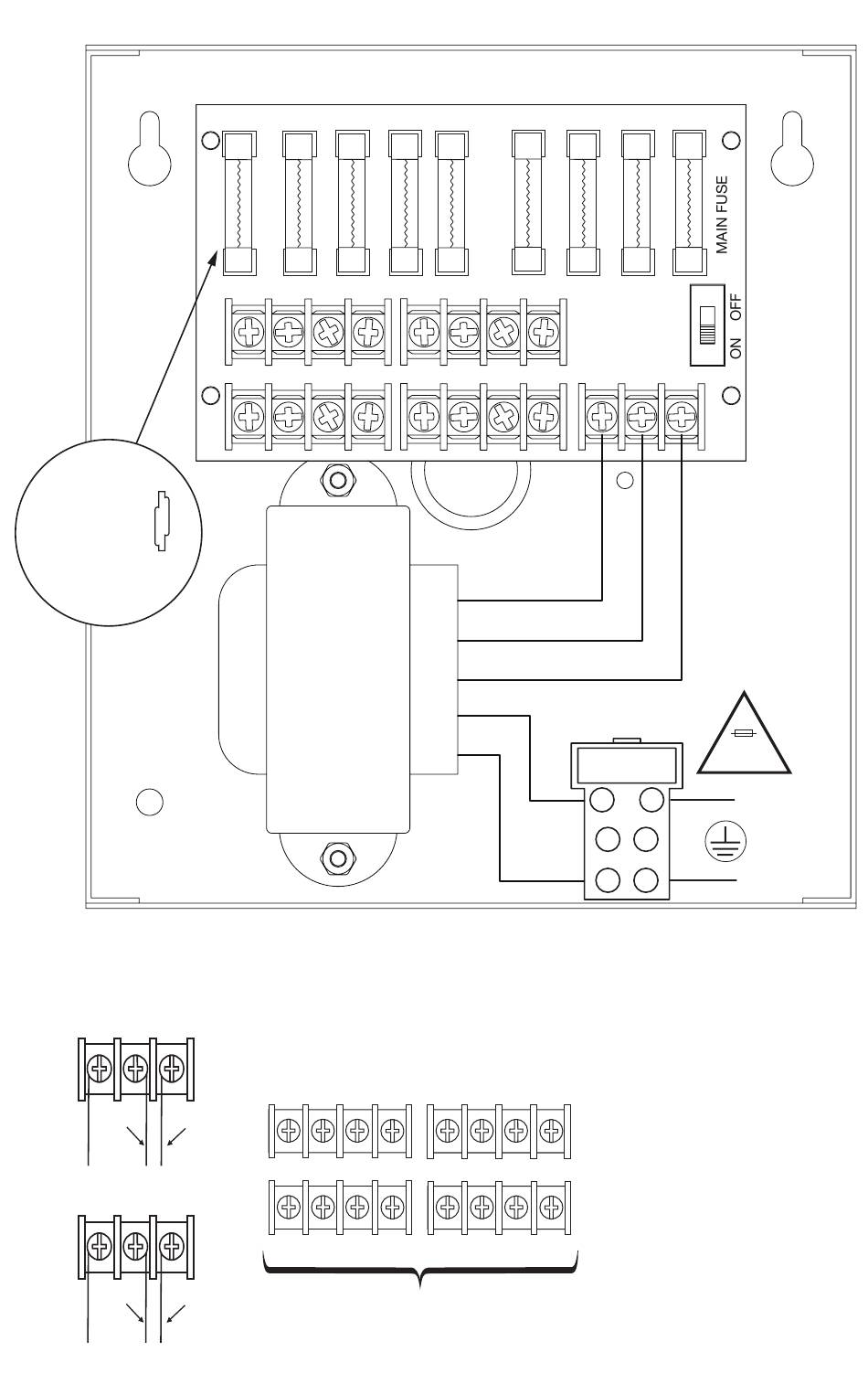

Fig. 1 - ALTV248220 and ALTV248CB220
PTC
used on
ALTV248CB220
Voltage Selection
Configuration
N P S
24VAC
Output
(Yellow) (Black)
N P S
28VAC
Output
(Black) (Yellow)
- 4 -
1 2 3
P
FUSED POWER OUTPUTS
N
COMMON POWER OUTPUTS
Terminal Blocks for Fig. 1
1 2 3
P
N
24VAC or 28VAC fuse or PTC
protected outputs 1 through 8.
4 5 6 7
4 5 6 7
8
PD8
INPUT
N P S
8
ALTV248220 Series Installation Guide
1A
250V
Input
220VAC
50/60Hz,
0.5A
