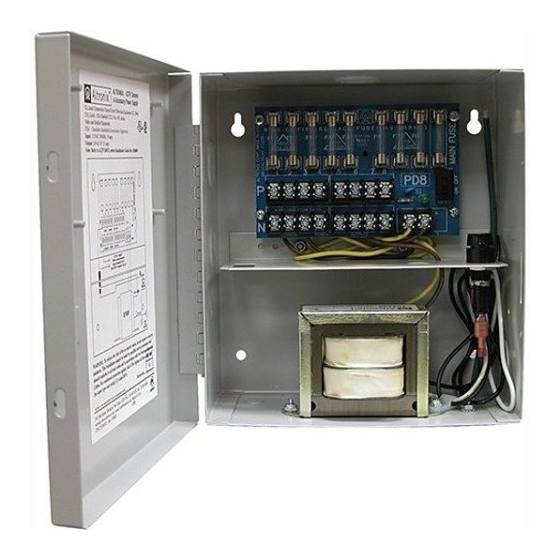

ALTV248UL Series
CCTV Power Supplies
Models Include:
ALTV248UL
- 24VAC @ 3.5A (85VA)
or 28VAC @ 3A (85VA).
- Eight (8) Fuse Protected Outputs.
ALTV248175UL
- 24VAC @ 7A (175VA)
or 28VAC @ 6.25A (175VA).
- Eight (8) Fuse Protected Outputs.
ALTV248300UL
- 24VAC @ 12.5A (300VA)
or 28VAC @ 10A (280VA).
- Eight (8) Fuse Protected Outputs.
ALTV248300ULM
- 24VAC @ 12.5A (300VA)
or 28VAC @ 10A (280VA).
- Eight (8) Fuse Protected Outputs.
ALTV248600UL
- 24VAC @ 25A (600VA)
or 28VAC @ 20A (560VA).
- Eight (8) Fuse Protected Outputs.
Installation Guide
Rev. 040506
Installing Company: _______________ Service Rep. Name: __________________________________
Address: _____________________________________________ Phone #: __________________
ALTV248ULCB
- 24VAC @ 3.5A (85VA)
or 28VAC @ 3A (85VA).
- Eight (8) PTC Protected Outputs.
ALTV248175ULCB
- 24VAC @ 7A (175VA)
or 28VAC @ 6.25A (175VA).
- Eight (8) PTC Protected Outputs.
ALTV248300ULCB
- 24VAC @ 12.5A (300VA)
or 28VAC @ 10A (280VA).
- Eight (8) PTC Protected Outputs.
ALTV248300ULCBM
- 24VAC @ 12.5A (300VA)
or 28VAC @ 10A (280VA).
- Eight (8) PTC Protected Outputs.
ALTV248600ULCB
- 24VAC @ 25A (600VA)
or 28VAC @ 20A (560VA).
- Eight (8) PTC Protected Outputs.
More than just power.
TM

Advertisement

loading
Need help?

Need help?

Do you have a question about the ALTV248UL Series and is the answer not in the manual?

Questions and answers

Related Manuals for Altronix ALTV248UL Series

Summary of Contents for Altronix ALTV248UL Series

  • Page 1 ALTV248UL Series CCTV Power Supplies Models Include: ALTV248UL ALTV248ULCB - 24VAC @ 3.5A (85VA) - 24VAC @ 3.5A (85VA) or 28VAC @ 3A (85VA). or 28VAC @ 3A (85VA). - Eight (8) Fuse Protected Outputs. - Eight (8) PTC Protected Outputs.

  • Page 2: Specifications

    Overview: Altronix ALTV248UL Series CCTV Power Supplies provide 24VAC or 28VAC distributed via eight (8) fuse or PTC protected outputs for powering CCTV cameras, heaters and other video accessories. Eight (8) Output ALTV248UL Reference Chart: Altronix Model Number 24VAC 3.5A 3.5A/...

  • Page 3: Installation Instructions

    Replace fuses with the same type and rating (refer to Eight (8) Output ALTV248UL Reference Chart, pg. 2). Terminal Identification: PD4/PD4CB - Distribution Module 1P - 4P AC output. 1N - 4N AC output. PD8/PD8CB - Distribution Module 1P - 8P AC output. 1N - 8N AC output. ALTV248UL Series Installation Guide - 3 -...
  • Page 4 2 through 8) COMMON POWER OUTPUTS Class 1 Outputs non power- limited Black Lead Input 115VAC, 50/60Hz White Lead Green Lead (ground) Voltage Selection 24VAC Configuration Output (Yellow) (Black) 28VAC Output (Black) (Yellow) - 4 - ALTV248UL Series Installation Guide...
  • Page 5 24VAC configuration Class 2 Not Wet/Class 3 Wet 28VAC configuration Class 1 non power- limited Black Lead Input 115VAC, 50/60Hz White Lead Green Lead (ground) Voltage Selection Configuration 24VAC Output (Yellow) (Black) 28VAC Output (Black) (Yellow) ALTV248UL Series Installation Guide - 5 -...
  • Page 6 Class 1 Outputs Illuminated Power Disconnect Circuit Breaker with manual reset non power- limited Black Lead Input 115VAC, 50/60Hz White Lead Green Lead (ground) Voltage Selection Configuration 24VAC Output (Yellow) (Black) 28VAC Output (Black) (Yellow) - 6 - ALTV248UL Series Installation Guide...
  • Page 7 Class 2 Not Wet/Class 3 Wet Illuminated Power Disconnect Circuit Breaker with manual reset non power- limited Black Lead Input 115VAC, 50/60Hz White Lead Green Lead (ground) Voltage Selection Configuration 24VAC Output (Yellow) (Black) 28VAC Output (Black) (Yellow) ALTV248UL Series Installation Guide - 7 -...
  • Page 8 Fig. 5a for outputs 2 COMMON POWER OUTPUTS through 8) Class 1 Outputs Black Lead Input 115VAC, 50/60Hz White Lead Green Lead (ground) Voltage Selection Configuration 24VAC Output (Yellow) (Black) 28VAC Output (Black) (Yellow) - 8 - ALTV248UL Series Installation Guide...
  • Page 9 COMMON POWER OUTPUTS for outputs 2 through 8) Class 2 Not Wet/Class 3 Wet Black Lead Input 115VAC, 50/60Hz White Lead Green Lead (ground) Voltage Selection Configuration 24VAC Output (Yellow) (Black) 28VAC Output (Black) (Yellow) ALTV248UL Series Installation Guide - 9 -...
  • Page 10 Illuminated Power Disconnect Circuit Breaker with manual reset Black Lead Input 115VAC, White 50/60Hz Lead Transformer underneath power distribution board Green Lead (ground) Voltage Selection Configuration 24VAC Output (Yellow) (Black) 28VAC Output (Black) (Yellow) - 10 - ALTV248UL Series Installation Guide...
  • Page 11 Illuminated Power Disconnect Circuit Breaker with manual reset Black Lead Input 115VAC, White 50/60Hz Lead Transformer underneath power distribution board Green Lead (ground) Voltage Selection Configuration 24VAC Output (Yellow) (Black) 28VAC Output (Black) (Yellow) ALTV248UL Series Installation Guide - 11 -...
  • Page 12 Fig. 9a Illuminated Power Disconnect Circuit Breaker with manual reset Black Lead Input 115VAC, 50/60Hz White Lead MAIN FUSE Green Lead (ground) Voltage Selection Configuration 24VAC Output (Yellow) (Black) 28VAC Output (Black) (Yellow) - 12 - ALTV248UL Series Installation Guide...
  • Page 13 Fig. 10a Illuminated Power Disconnect Circuit Breaker with manual reset Black Lead Input 115VAC, 50/60Hz White Lead MAIN FUSE Green Lead (ground) Voltage Selection Configuration 24VAC Output (Yellow) (Black) 28VAC Output (Black) (Yellow) ALTV248UL Series Installation Guide - 13 -...
  • Page 14 • ALTV248300ULCBM 8.5” x 7.5” x 3.875” (215.9mm x 191mm x 98.4mm) 7.25” (184.15mm) 1.25” (31.75mm) 0.6” (15.24mm) 0.6” (15.24mm) 1.25” (31.75mm) 1.25” (31.75mm) 0.6” (15.24mm) 0.6” (15.24mm) 3.85” (97.79mm) 1” (25.4mm) 1” (25.4mm) - 14 - ALTV248UL Series Installation Guide...
  • Page 15 12” x 7.5” x 4.5” (304.8mm x 190.5mm x 114.3mm) 7.5” (190.5mm) 1.25” (31.75mm) 0.5” (12.7mm) 0.5” (12.7mm) 1.25” (31.75mm) 1.5” (12.7mm) 1” (25.4mm) 4.5” (114.3mm) 7.5” (190.5mm) 4.5” (114.3mm) 1” (25.4mm) 1” (25.4mm) 0.88” (22.4mm) 5.75” (146.1mm) 0.88” (22.4mm) ALTV248UL Series Installation Guide - 15 -...
  • Page 16 1.0” 1.0” 10.5” (266.7mm) (25.4mm) (25.4mm) Altronix is not responsible for any typographical errors. –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty IIALTV248UL Series K30U...
