Techical Specfications - ACME Building Wash User Manual

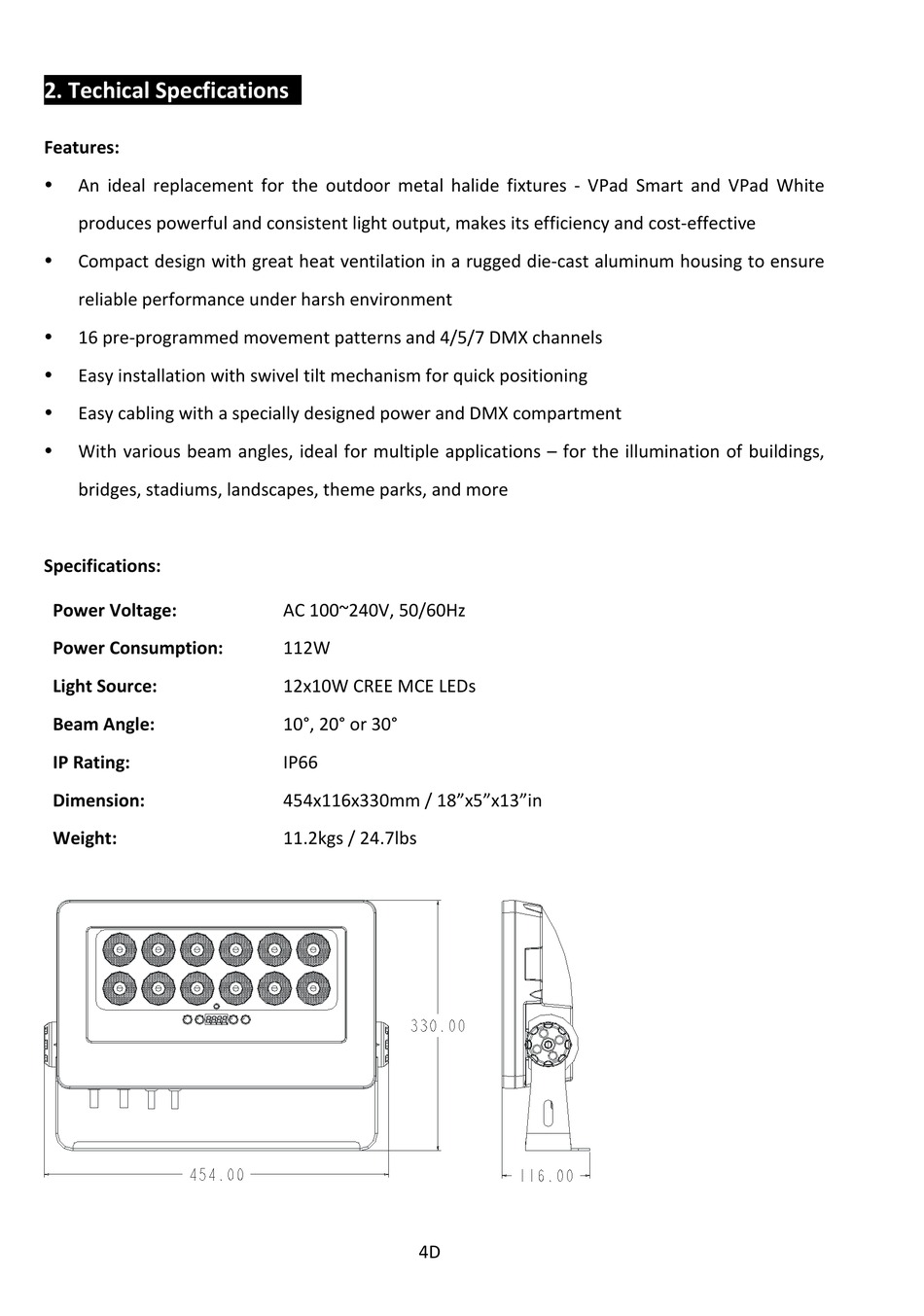

2. Techical Specfications

Features:
An ideal replacement for the outdoor metal halide fixtures - VPad Smart and VPad White

produces powerful and consistent light output, makes its efficiency and cost-effective
Compact design with great heat ventilation in a rugged die-cast aluminum housing to ensure

reliable performance under harsh environment
16 pre-programmed movement patterns and 4/5/7 DMX channels

Easy installation with swivel tilt mechanism for quick positioning

Easy cabling with a specially designed power and DMX compartment

With various beam angles, ideal for multiple applications – for the illumination of buildings,

bridges, stadiums, landscapes, theme parks, and more
Specifications:
Power Voltage:
Power Consumption:
Light Source:
Beam Angle:
IP Rating:
Dimension:
Weight:
AC 100~240V, 50/60Hz
112W
12x10W CREE MCE LEDs
10°, 20° or 30°
IP66
454x116x330mm / 18"x5"x13"in
11.2kgs / 24.7lbs
4D
