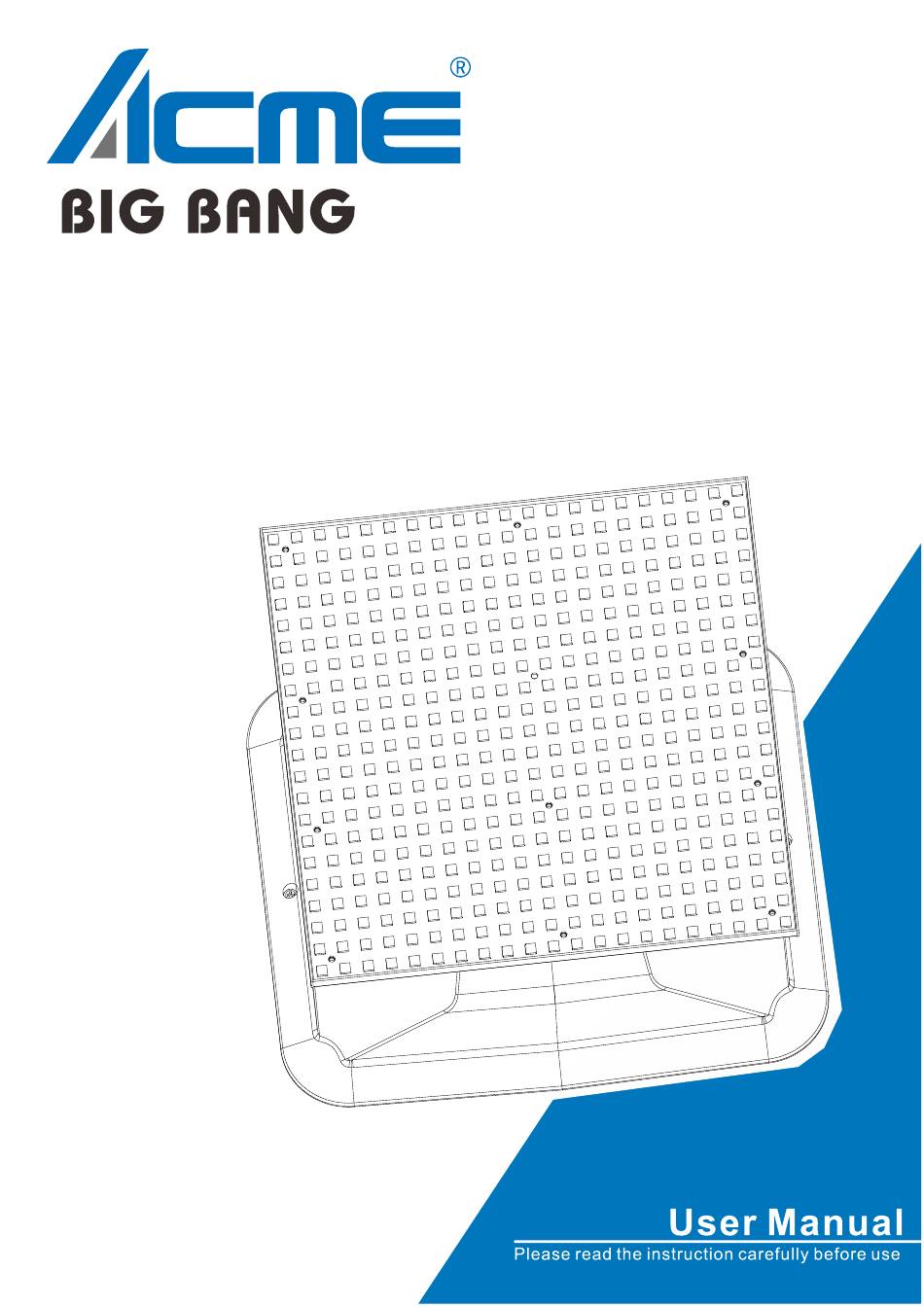

ACME BIG BANG User Manual

Hide thumbs Also See for BIG BANG:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BIG BANG and is the answer not in the manual?

Questions and answers

Related Manuals for ACME BIG BANG

Summary of Contents for ACME BIG BANG

  • Page 2: Table Of Contents

    CONTENTS 1. Safety Instructions ..................2 2. Technical Specifications ................. 3 3. Control Panel ....................5 4. Installation ..................... 5 5. Control By Universal DMX Controller ............. 7 5.1 DMX512 Connection ................7 5.2 Address Setting ..................8 5.3 DMX512 Configuration ................8 6.

  • Page 3: Safety Instructions

    1. Safety Instructions Please read the instruction carefully which includes important information about the installation, usage and maintenance. WARNING Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction manual. Important: Damages caused by the disregard of this user manual are not subject to warranty.

  • Page 4: Technical Specifications

     DO NOT operate in a dirty or dusty environment. DO clean the fixture regularly.  DO NOT touch any wire during operation as there might be a hazard of electric shock.  Avoid entanglement of the power cord with other wires. ...
  • Page 5 Dimmer/Shutter: Smooth dimming from 0~100%; outstanding strobe effect with variable speed Control: DMX Channel: 156/16 channels Control Mode: DMX512, RDM Firmware Upgrade via DMX link Construction: Data In/Out: 5-pin XLR Power In/Out: Power Connector in Protection Rating: IP20 Features: 49 sections can be controlled individually Quick splicing in horizontal and vertical direction, side hanging directly or hanging with clamp Compact design, light in weight Outstanding color mixing effect...

  • Page 6: Control Panel

    3. Control Panel 1. DMX OUT: For DMX512 link, use 5-pin XLR cable to link the next units 2. DMX IN: For DMX512 link, use 5-pin XLR cable to link the unit and controller 3. POWER IN: Connects to supply power 4.
  • Page 7 2. Adjust the two movable fixing plates of the luminaire inward and stick to the luminaire shell. 3. Install the safety cable and push the luminaire from the bottom to the ceiling to be flush with the ceiling surfacing. 4. Screw the two screws to the right to open the movable fixing plates outwards and press the back of the ceiling.

  • Page 8: Control By Universal Dmx Controller

    5. Installation completed. 5. Control By Universal DMX Controller 5.1 DMX512 Connection 1. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120-ohm 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the DMX-output of the last unit.

  • Page 9: Address Setting

    3. The DMX output and input connectors are pass-through to maintain the DMX circuit, when one of the units’ power is disconnected. 4. Each lighting unit needs to have a DMX address to receive the data by the controller. The address number is between 1-512.
  • Page 10 156 Channels (Mode 1): CHANNEL VALUE FUNCTION 000-255 0°76° 000-255 PAN FINE TILT 000-255 0°76° 000-255 TILT FINE PAN/TILT SPEED 000-255 Fast to Slow STROBE 000-007 Close 008-015 Open 016-131 Strobe from Slow to Fast 132-139 Open 140-181 Fast Close Slow Open 182-189 Open 190-231...
  • Page 11 180-189 Null 190-199 Null 200-209 Null 210-219 Dimmer Speed: Fast 220-229 Dimmer Speed: Slow 230-239 Null 240-245 Null 246-251 Null 252-255 Null RED1 000-255 0%100% GREEN1 000-255 0%100% BLUE1 000-255 0%100% RED2 000-255 0%100% GREEN2 000-255 0%100% BLUE2 000-255 0%100% RED3 000-255 0%100%...
  • Page 12 000-255 0%100% RED7 000-255 0%100% GREEN7 000-255 0%100% BLUE7 000-255 0%100% RED8 000-255 0%100% GREEN8 000-255 0%100% BLUE8 000-255 0%100% RED9 000-255 0%100% GREEN9 000-255 0%100% BLUE9 000-255 0%100% RED10 000-255 0%100% GREEN10 000-255 0%100% BLUE10 000-255 0%100% RED11 000-255 0%100% GREEN11 000-255...
  • Page 13 RED14 000-255 0%100% GREEN14 000-255 0%100% BLUE14 000-255 0%100% RED15 000-255 0%100% GREEN15 000-255 0%100% BLUE15 000-255 0%100% RED16 000-255 0%100% GREEN16 000-255 0%100% BLUE16 000-255 0%100% RED17 000-255 0%100% GREEN17 000-255 0%100% BLUE17 000-255 0%100% RED18 000-255 0%100% GREEN18 000-255 0%100% BLUE18...
  • Page 14 GREEN21 000-255 0%100% BLUE21 000-255 0%100% RED22 000-255 0%100% GREEN22 000-255 0%100% BLUE22 000-255 0%100% RED23 000-255 0%100% GREEN23 000-255 0%100% BLUE23 000-255 0%100% RED24 000-255 0%100% GREEN24 000-255 0%100% BLUE24 000-255 0%100% RED25 000-255 0%100% GREEN25 000-255 0%100% BLUE25 000-255 0%100% RED26...
  • Page 15 BLUE28 000-255 0%100% RED29 000-255 0%100% GREEN29 000-255 0%100% BLUE29 000-255 0%100% RED30 000-255 0%100% GREEN30 000-255 0%100% BLUE30 000-255 0%100% RED31 000-255 0%100% GREEN31 000-255 0%100% BLUE31 000-255 0%100% RED32 000-255 0%100% GREEN32 000-255 0%100% BLUE32 000-255 0%100% RED33 000-255 0%100% GREEN33...
  • Page 16 RED36 000-255 0%100% GREEN36 000-255 0%100% BLUE36 000-255 0%100% RED37 000-255 0%100% GREEN37 000-255 0%100% BLUE37 000-255 0%100% RED38 000-255 0%100% GREEN38 000-255 0%100% BLUE38 000-255 0%100% RED39 000-255 0%100% GREEN39 000-255 0%100% BLUE39 000-255 0%100% RED40 000-255 0%100% GREEN40 000-255 0%100% BLUE40...
  • Page 17 GREEN43 000-255 0%100% BLUE43 000-255 0%100% RED44 000-255 0%100% GREEN44 000-255 0%100% BLUE44 000-255 0%100% RED45 000-255 0%100% GREEN45 000-255 0%100% BLUE45 000-255 0%100% RED46 000-255 0%100% GREEN46 000-255 0%100% BLUE46 000-255 0%100% RED47 000-255 0%100% GREEN47 000-255 0%100% BLUE47 000-255 0%100% RED48...
  • Page 18 16 Channels (Mode 2): CHANNEL VALUE FUNCTION 000-255 0°76° 000-255 PAN FINE TILT 000-255 0°76° 000-255 TILT FINE PAN/TILT SPEED 000-255 Fast to Slow 000-255 0%100% GREEN 000-255 0%100% BLUE 000-255 0%100% COLOR MACRO 000-009 Open 010-014 LEE 790-Moroccan Pink 015-019 LEE 157-Pink 020-024...
  • Page 19 145-149 LEE 179-Chrome Orange 150-154 LEE 105-Orange 155-159 LEE 021-Gold Amber 160-164 LEE 778-Millennium Gold 165-169 LEE 135-Deep Gold Amber 170-174 LEE 164-Flame Red 175-179 Open 180-201 Clockwise Rotation, Fast to Slow 202-207 Stop 208-229 Counter-clockwise Rotation, Slow to Fast 230-234 Open 235-239...
  • Page 20 048-055 Effect 06 056-063 Effect 07 064-071 Effect 08 072-079 Effect 09 080-087 Effect 10 088-095 Effect 11 096-103 Effect 12 104-111 Effect 13 112-119 Effect 14 120-127 Effect 15 128-135 Effect 16 136-143 Effect 17 144-151 Effect 18 152-159 Effect 19 160-167 Effect 20...
  • Page 21 094-102 Letter-I 103-111 Letter-J 112-120 Letter-K 121-129 Letter-L 130-138 Letter-M 139-147 Letter-N 148-156 Letter-O 157-165 Letter-P 166-174 Letter-Q 175-183 Letter-R 184-192 Letter-S 193-201 Letter-T 202-210 Letter-U 211-219 Letter-V 220-228 Letter-W 229-237 Letter-X 238-246 Letter-Y 247-255 Letter-Z SPECIAL FUNCTION 000-009 Null 010-019 Null 020-029...

  • Page 22: Troubleshooting

    RDM FUNCTIONS Select the MANUFACTURER menu to display the manufacturer of the fixture. Select the SOFTWARE VERSION menu and the program version number of the fixture will be displayed. Select the DMX START ADDRESS menu to change the DMX 512 address (001-512). Select the DEVICE MODEL DESCRIPTION menu to display the model of the fixture.

  • Page 23: Fixture Cleaning

    C. One of the channels is not working well 1. The stepper motor might be damaged or the cable connected to the PCB might be broken. 2. The motor’s drive IC on the PCB might be out of condition. 7. Fixture Cleaning It is absolutely essential that the fixture is kept clean to ensure the maximum light-output and allow the fixture to function reliably throughout its life.
  • Page 24 Declaration of Conformity We declare that our products (lighting equipments) comply with the following specification and bears CE mark in accordance with the provision of the Electromagnetic Compatibility (EMC) Directive 2014/30/EU. EN 55032: 2015+A1: 2020; EN 55035: 2017+A11: 2020; EN IEC 61000-3-2: 2019+A1: 2021; EN 61000-3-3: 2013+A1: 2019+A2: 2021.
