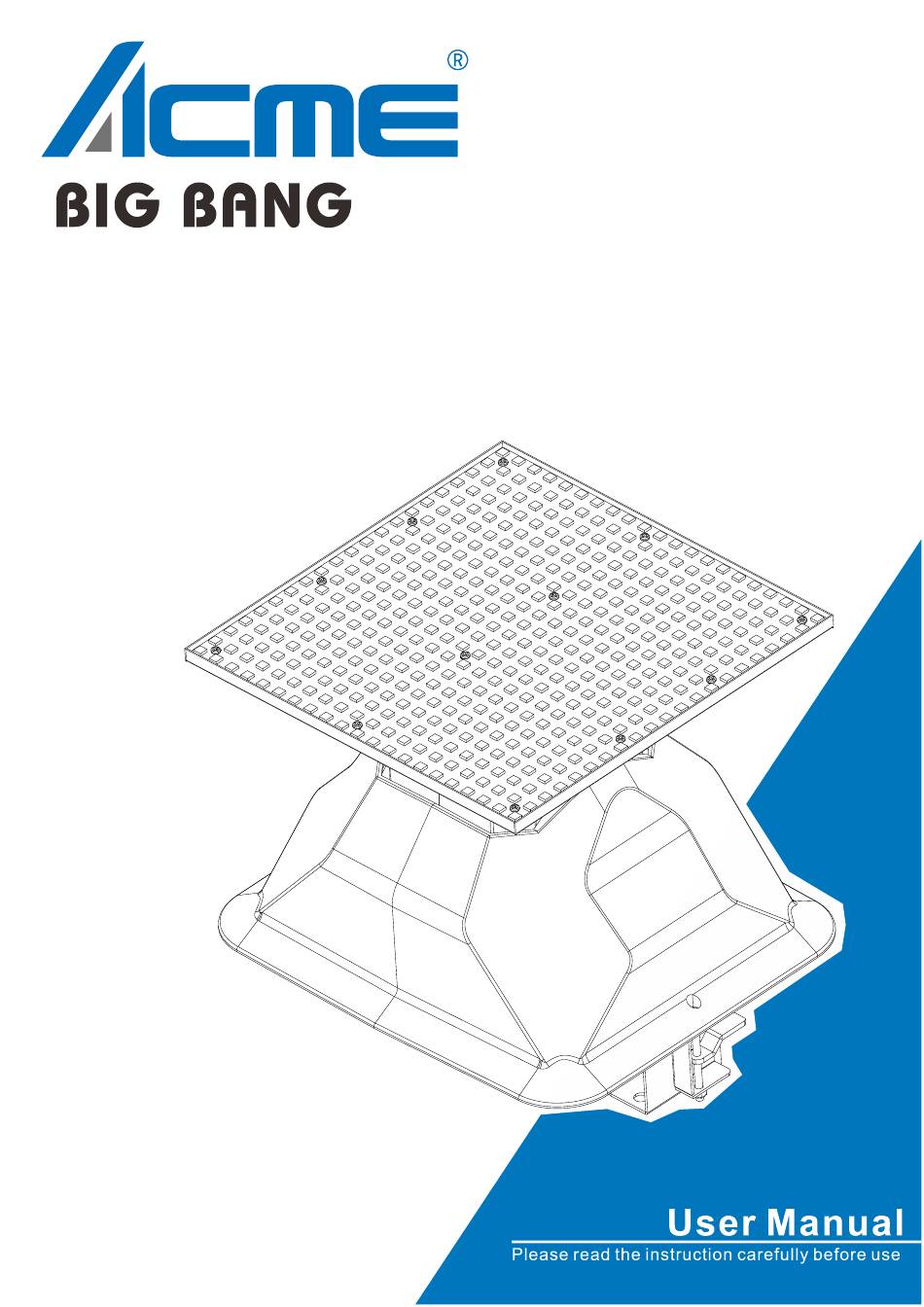

ACME BIG BANG User Manual

Hide thumbs Also See for BIG BANG:

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the BIG BANG and is the answer not in the manual?

Questions and answers

Related Manuals for ACME BIG BANG

Summary of Contents for ACME BIG BANG

  • Page 2 CONTENTS 1. Safety Instructions ..................2 2. Technical Specifications ................. 3 3. Control Panel ....................5 4. Fixture Installation ..................6 5. Control By Universal DMX Controller ............. 8 5.1 DMX512 Connection ................8 5.2 Address Setting ..................9 5.3 DMX512 Configuration ................9 6.
  • Page 3 1. Safety Instructions Please read the instruction carefully which includes important information about the installation, usage and maintenance. WARNING Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction manual. Important: Damages caused by the disregard of this user manual are not subject to warranty.
  • Page 4  DO NOT operate in a dirty or dusty environment. DO clean the fixture regularly.  DO NOT touch any wire during operation as there might be a hazard of electric shock.  Avoid entanglement of the power cord with other wires. ...
  • Page 5 Dimmer/Shutter: Smooth dimming from 0~100%; outstanding strobe effect with variable speed Control: DMX Channel: 156/16 channels Control Mode: DMX512, RDM, Primary/Secondary Mode, Sound Mode Firmware Upgrade via DMX link Construction: Data In/Out: RJ45 in/out Power In/Out: IEC in Protection Rating: IP20 Features: 49 LED zones can be controlled individually Compact design, light in weight...
  • Page 6 Photometric Diagram: 3. Control Panel 1. MIC: Picks up the beat of the music in sound active mode 2. DMX OUT: For DMX512 link, use a network cable to link the next units 3. DMX IN: For DMX512 link, use a network cable to link the unit and controller 4.
  • Page 7 4. Fixture Installation DO install and operate by qualified operator. Fixture(s) should be installed in areas outside walking paths, seating areas, or away from areas were unauthorized personnel might reach the fixture by hand. NEVER stand directly below the fixture(s) when rigging, removing or servicing. Always ensure that the unit is firmly fixed to avoid vibration and slipping off during operation.
  • Page 8 3. Install the safety cable and push the fixture from the bottom to the ceiling to be flush with the ceiling surfacing. 4. Screw the two screws clockwise to open the movable fixing plates outwards until they press against the back of the ceiling. 5.
  • Page 9 5. Control By Universal DMX Controller 5.1 DMX512 Connection 1. To avoid erratic behavior, make sure that the output of the last DMX device in the chain is terminated by a resistor (120-ohm 1/4W) which is connected between RJ45 PIN 1 (XLR PIN 3) and RJ45 PIN 2 (XLR PIN 2) of a RJ45 connector (a male XLR connector).
  • Page 10 5.2 Address Setting If you use a universal DMX controller to control the units, you have to set DMX address from 1 to 512 so that the units can receive DMX signal. Please refer to the following diagram to address your DMX512 channel for the first 4 units. Unit 1 Unit 2 Unit 3...
  • Page 11 248-255 Open DIMMER 000-255 0%100% 000-255 DIMMER FINE SPECIAL FUNCTION 000-029 Null 030-039 Dimmer Curve: Linear 040-049 Dimmer Curve: Square Law 050-059 Dimmer Curve: Inverse Square Law 060-069 Dimmer Curve: S Curve 070-139 Null 140-149 Pan/Tilt Reset 150-209 Null 210-219 Dimmer Speed: Fast 220-229 Dimmer Speed: Slow...
  • Page 12 000-255 0%100% BLUE 5 000-255 0%100% RED 6 000-255 0%100% GREEN 6 000-255 0%100% BLUE 6 000-255 0%100% RED 7 000-255 0%100% GREEN 7 000-255 0%100% BLUE 7 000-255 0%100% RED 8 000-255 0%100% GREEN 8 000-255 0%100% BLUE 8 000-255 0%100% RED 9...
  • Page 13 BLUE 12 000-255 0%100% RED 13 000-255 0%100% GREEN 13 000-255 0%100% BLUE 13 000-255 0%100% RED 14 000-255 0%100% GREEN 14 000-255 0%100% BLUE 14 000-255 0%100% RED 15 000-255 0%100% GREEN 15 000-255 0%100% BLUE 15 000-255 0%100% RED 16 000-255 0%100%...
  • Page 14 RED 20 000-255 0%100% GREEN 20 000-255 0%100% BLUE 20 000-255 0%100% RED 21 000-255 0%100% GREEN 21 000-255 0%100% BLUE 21 000-255 0%100% RED 22 000-255 0%100% GREEN 22 000-255 0%100% BLUE 22 000-255 0%100% RED 23 000-255 0%100% GREEN 23 000-255 0%100%...
  • Page 15 GREEN 27 000-255 0%100% BLUE 27 000-255 0%100% RED 28 000-255 0%100% GREEN 28 000-255 0%100% BLUE 28 000-255 0%100% RED 29 000-255 0%100% GREEN 29 000-255 0%100% BLUE 29 000-255 0%100% RED 30 000-255 0%100% GREEN 30 000-255 0%100% BLUE 30 000-255 0%100%...
  • Page 16 BLUE 34 000-255 0%100% RED 35 000-255 0%100% GREEN 35 000-255 0%100% BLUE 35 000-255 0%100% RED 36 000-255 0%100% GREEN 36 000-255 0%100% BLUE 36 000-255 0%100% RED 37 000-255 0%100% GREEN 37 000-255 0%100% BLUE 37 000-255 0%100% RED 38 000-255 0%100%...
  • Page 17 RED 42 000-255 0%100% GREEN 42 000-255 0%100% BLUE 42 000-255 0%100% RED 43 000-255 0%100% GREEN 43 000-255 0%100% BLUE 43 000-255 0%100% RED 44 000-255 0%100% GREEN 44 000-255 0%100% BLUE 44 000-255 0%100% RED 45 000-255 0%100% GREEN 45 000-255 0%100%...
  • Page 18 GREEN 49 000-255 0%100% BLUE 49 000-255 0%100% 16 Channels (Mode 2): CHANNEL VALUE FUNCTION 000-255 0°74° 000-255 PAN FINE TILT 000-255 0°74° 000-255 TILT FINE PAN/TILT SPEED 000-255 Fast to Slow 000-255 0%100% GREEN 000-255 0%100% BLUE 000-255 0%100% COLOR MACRO 000-009 Open...
  • Page 19 105-109 LEE 124-Dark Green 110-114 LEE 139-Primary Green 115-119 LEE 089-Moss Green 120-124 LEE 122-Fern Green 125-129 LEE 738-JAS Green 130-134 LEE 088-Lime Green 135-139 LEE 100-Spring Yellow 140-144 LEE 104-Deep Amber 145-149 LEE 179-Chrome Orange 150-154 LEE 105-Orange 155-159 LEE 021-Gold Amber 160-164 LEE 778-Millennium Gold...
  • Page 20 216-255 Blackout MARCO EFFECT 000-007 Null 008-015 Effect 01 016-023 Effect 02 024-031 Effect 03 032-039 Effect 04 040-047 Effect 05 048-055 Effect 06 056-063 Effect 07 064-071 Effect 08 072-079 Effect 09 080-087 Effect 10 088-095 Effect 11 096-103 Effect 12 104-111 Effect 13...
  • Page 21 000-021 Null 022-030 Letter-A 031-039 Letter-B 040-048 Letter-C 049-057 Letter-D 058-066 Letter-E 067-075 Letter-F 076-084 Letter-G 085-093 Letter-H 094-102 Letter-I 103-111 Letter-J 112-120 Letter-K 121-129 Letter-L 130-138 Letter-M 139-147 Letter-N 148-156 Letter-O 157-165 Letter-P 166-174 Letter-Q 175-183 Letter-R 184-192 Letter-S 193-201 Letter-T 202-210...
  • Page 22 RDM FUNCTIONS Select the MANUFACTURER menu to display the manufacturer of the fixture. Select the SOFTWARE VERSION menu and the program version number of the fixture will be displayed. Select the DMX START ADDRESS menu to change the DMX512 address (001-512). Select the DEVICE MODEL DESCRIPTION menu to display the model of the fixture.
  • Page 23 6. Error Information 1. Pan Reset Error Check whether the position of the pan where the magnet is installed falls off or is damaged. Check whether there are obstacles in the pan operating range. Check whether the Hall element on the pan is damaged. Check whether the lead connecting the Hall element on the pan and the PCB board is in poor contact or disconnected.
  • Page 24 7. Troubleshooting Following are a few common problems that may occur during operation. Here are some suggestions for troubleshooting: A. The unit does not work and no light 1. Check the connected power. 2. Measure the voltage. 3. Check the power indicator to see whether it can be lit up or not. B.
  • Page 28 Innovation, Quality, Performance...
