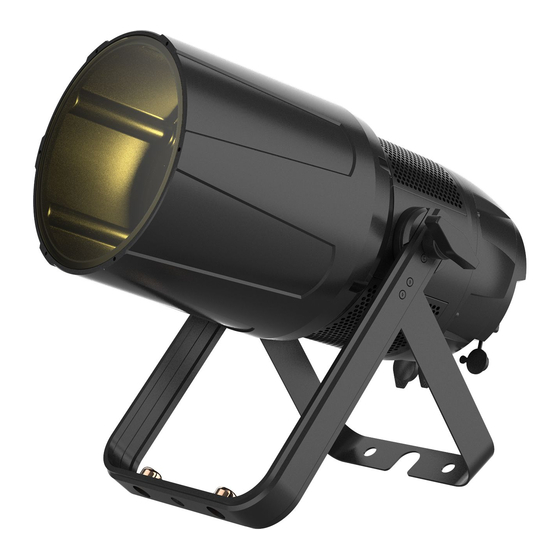

CONTENTS 1. Safety Instructions ..........................2 2. Technical Specifications ........................5 3. Control Panel ............................ 6 4. How to set the Unit .......................... 7 4.1 Menu .............................. 7 5. Control by DMX 512 controller ...................... 15 5.1 DMX Connection .......................... 15 5.2 DMX Address Setting ........................
1. Safety Instructions Please read the instruction carefully which includes important information about the installation, usage and maintenance. WARNING Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction manual. Important: Damages caused by the disregard of this user manual are not subject to warranty.
Page 4
off the mains power immediately. DO NOT operate in dirty or dusty environment, do clean fixtures regularly. DO NOT touch any wire during operation as there might be a hazard of electric shock. Avoid power wires together twist other cables. ...
Page 5
1. Bolt each clamp to the Omega holder with screw and lock nut through the hole in the holder. 2. Faster the omega holders on the bottom of the base by inserting quick-lock fasteners into the holes of the base and tighten fully clockwise. 3.
To go backward to move up in the menu DOWN To go to move down in the menu ENTER To perform the desired functions 3 DMX output: DMX 512 operation, use 5 XLR cable to link the next units. 4. DMX input: DMX 512 link, use 5 XLR cable to link the unit and DMX controller. 5.
Page 9
1-506(7ch) 1-507(6ch) Total LED Hour LED Use Hour LED On Hour LED Hours Reset Passsword=050 Fixture Errors Error Logs Reset Error Log Passsword=050...
Page 10
DMX Settings Enter MENU mode, select DMX Functions, press the ENTER button to confirm, use the UP/DOWN button to select DMX Address, DMX Channel Mode, View DMX Value or WDMX Setting. DMX Address To select DMX Address, press the ENTER button to show the DMX ADDRESS on the display. Use the UP/DOWN button to adjust the address from 001 to 507, press the ENTER button to setup.
Page 11
use the UP/DOWN button to select Linear, Square Law, Inverse Squ. or S-curve. Once selected, press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle one minute to exit menu mode. Linear: The increase in light intensity appears to be linear as DMX value is increased.
Page 12
Enter MENU mode, select Display Setting, press the ENTER button to confirm, use the UP/DOWN button to select Display Inverse, Backlight Switch, Backlight Intensity ,Temperature unit or Language. Display Invert To select Display Invert, press the ENTER button to show the DISPLAY INVERT on the display. Use the UP/DOWN button to select No (normal) or Yes (display inverse).
Page 13
the MENU button back to the last menu or exit menu mode after auto test. Manual Test To select Manual Test, press the ENTER button to show the MANUAL TEST on the display. Press the ENTER button, and then use the UP/DOWN button to select channel, and adjust the channel value.
Page 14
Upgrade File Select Upgrade File, press the ENTER button to confirm, USB upgrade file will show on the display, press the MENU button back to exit. Fan State Select Fan State, press the ENTER button to confirm, fan state will show on the display, press the MENU button to exit.
Page 15
RDM FUNCTIONS Select the MANUFACTURER menu to display the manufacturer of the fixture. Select the SOFTWARE VERSION menu and the program version number of the fixture will be displayed. Select the DMX START ADDRESS menu to change the DMX 512 address (001-507). Select the DEVICE MODEL DESCRIPTION menu to display the model of the fixture.
5. Control by DMX 512 controller 5.1 DMX Connection 1. Connect the fixture together in a “daisy chain” by XLR plug cable from the output of the fixture to the input of the next fixture. The cable cannot be branched or split to a “Y” cable. Inadequate or damaged cables, soldered joints or corroded connectors can easily distort the signal and shut down the system 2.
3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+) 5.2 DMX Address Setting By using a universal DMX controller to control the units, you have to set DMX address from 1 to 512 so that the units can receive DMX signal. Press the MENU button up to when the DMX Address is showing on the display.
Error Message 1. Power Fan Error Check if the fan is not running. Check if the fan leads are installed in place or disconnected. Check if the fan is damaged. Check if there are other interference items in the fan operating range. Check if the fan circuit on the motherboard breaks down.
Page 20
2. LED Fan Error Check if the fan is not running. Check if the fan leads are installed in place or disconnected. Check if the fan is damaged. Check if there are other interference items in the fan operating range. Check if the fan circuit on the motherboard breaks down.
7. Troubleshooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The unit does not work, no light and the fan does not work 1. Check the connection of power. 2.
