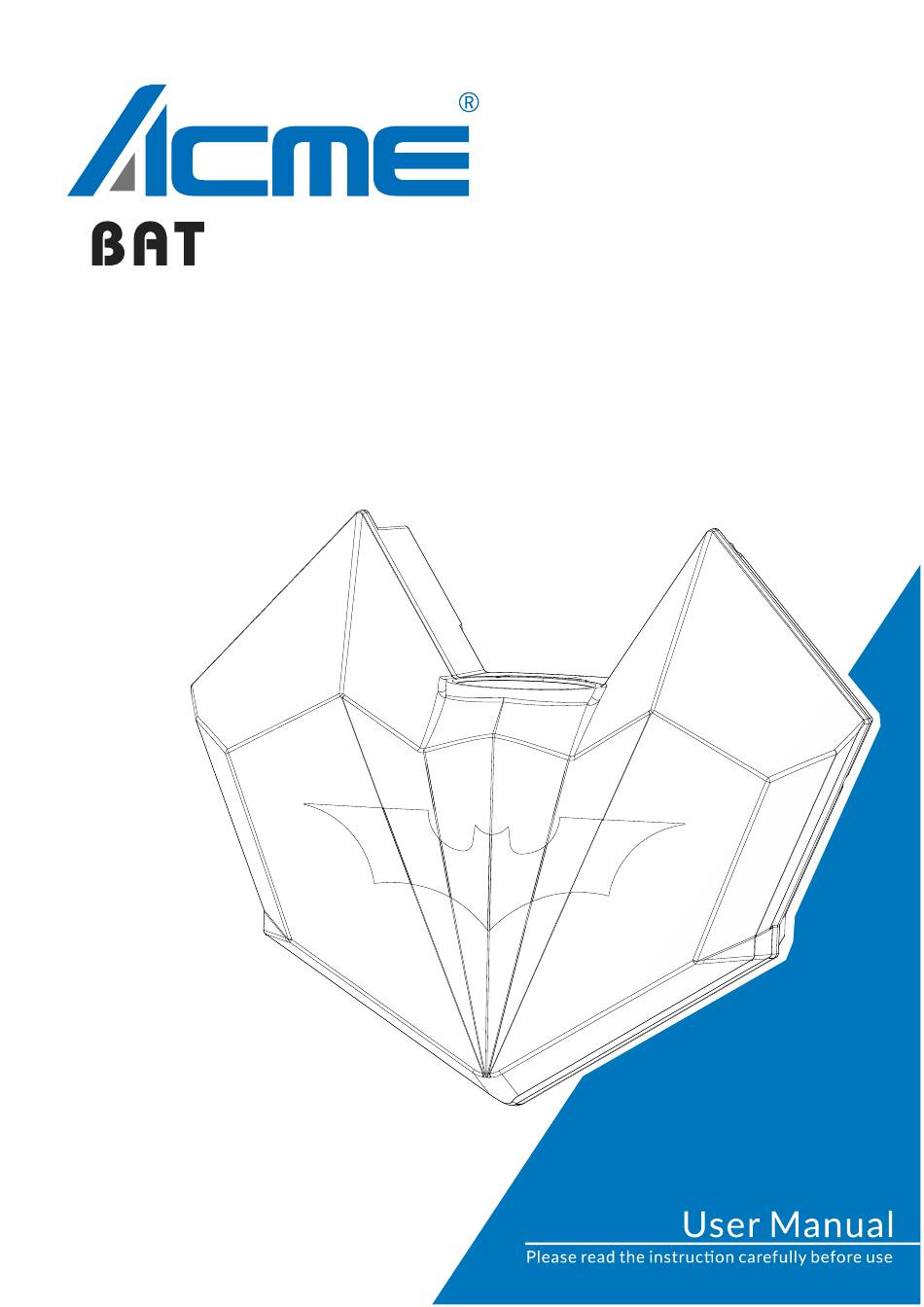

ACME BAT User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the BAT and is the answer not in the manual?

Questions and answers

Related Manuals for ACME BAT

Summary of Contents for ACME BAT

  • Page 2: Table Of Contents

    REV A 09/21/2024 CONTENTS 01/ Safety Information ....................2 02/ Technical Specifications ..................4 03/ Overview ........................6 04/ Connecting Power and Data ................7 4.1 Connecting Power ................... 7 4.2 Connecting Data....................8 05/ Fixture Installation ....................9 06/ Operation ....................... 12 6.1 Control Menu ....................

  • Page 3: 01/ Safety Information

    REV A 09/21/2024 01/ Safety Information Please read the instruction carefully which includes important information about the installation, usage and maintenance. WARNING Please keep this User Manual for future consultation. If you sell the unit to another user, be sure that they also receive this instruction manual. Important: Damages caused by the disregard of this user manual are not subject to warranty.
  • Page 4 REV A 09/21/2024 Avoid any flammable liquids, water or metal from entering the unit. Once it happens, cut  off the mains power immediately. DO NOT operate in a dirty or dusty environment. DO clean the fixture regularly.  DO NOT touch any wire during operation as there might be a hazard of electric shock. ...

  • Page 5: 02/ Technical Specifications

    REV A 09/21/2024 02/ Technical Specifications AC Power 100-240Vac; 50/60Hz Max. Power Consumption Light Source 1x80W CW LED Color Temperature 7500K-8000K Beam Angle 3° 7 gobos (with fixed colors) + 1 effect gobo Gobo Wheel Static Gobo Wheel + open DMX Channels DMX512 Protocols...
  • Page 6 REV A 09/21/2024 Photometric Diagram: - 5 -...

  • Page 7: 03/ Overview

    REV A 09/21/2024 03/ Overview 1. Display To show the various menus and the selected function MENU To enter into move backward or leave the menu  UP To go backward to move up in the menu 2. Buttons  DOWN To go forward to move down in the menu ENTER To perform the desired functions...

  • Page 8: 04/ Connecting Power And Data

    REV A 09/21/2024 04/ Connecting Power and Data 4.1 Connecting Power This fixture can operate on any 100-240Vac; 50/60Hz AC mains power supply. The maximum power consumption is 90W. The fixture must be grounded/earthed and able to be isolated from AC power. The AC power supply must incorporate a fuse or circuit breaker for fault protection.

  • Page 9: Connecting Data

    REV A 09/21/2024 4.2 Connecting Data The fixture is equipped with 5-pin (or 3-pin) XLR sockets for DMX input and output. Use a high-quality DMX cable designed for RS-485 and 5-pin (or 3-pin) XLR-plugs and connectors in order to connect the controller with the fixture or one fixture with another. Building a serial DMX chain: Connect the DMX data output from the controller to the fixture’s data input socket.

  • Page 10: 05/ Fixture Installation

    REV A 09/21/2024 05/ Fixture Installation  DO install and operate by qualified operator. Fixture(s) should be installed in areas outside walking paths, seating areas, or away from areas were unauthorized personnel might reach the fixture by hand. NEVER stand directly below the fixture(s) when rigging, removing or servicing.
  • Page 11 REV A 09/21/2024 Fix the fixture on a wall: 1. Drill a round hole with a diameter of 30mm and four M5 screw holes on the wall. 2. Press and hold the snap-fit to remove the hanging bracket. 3. Install the fixed holder to the fixture. - 10 -...
  • Page 12 REV A 09/21/2024 4. Screw four M5 self-tapping screws into the screw holes drilled on the wall, and keep the distance from the screw heads to the wall with a margin of 2.8mm. 5. Align the fixture with the four M5 screw heads and attach it to the wall. After attaching, move the fixture downwards to fix it.

  • Page 13: 06/ Operation

    REV A 09/21/2024 06/ Operation 6.1 Control Menu  To access the control menus, press the [MENU] button.  Navigate the menu structure, using the [ENTER], [ UP] and [ DOWN] buttons.  To select a menu option or to confirm a selection, press the [ENTER] button. ...
  • Page 14 REV A 09/21/2024 MAIN MENU SUBMENU CHOICES/VALUES Single Auto Test Cycle Clear No/Yes Gobo 0-255 Fixture Test Mirror 0-255 Manual Mode Strobe 0-255 Dimmer 0-255 Show 0-255 Fixture Use Hour Total LED Hour LED Use Hour LED On Hour LED Hours Reset Password=050 Current Temperature...

  • Page 15: Channel Mode

    REV A 09/21/2024 DMX Settings Enter the control menu and select DMX Settings, press ENTER. Use the UP/DOWN button to select DMX Address, DMX Channel Mode, No DMX Status or View DMX Value. DMX Address Select DMX Address, press ENTER. Use UP/DOWN button to select an address, confirm your selection with ENTER.
  • Page 16 REV A 09/21/2024 View DMX Value Select View DMX Value, press ENTER. Use UP/DOWN button to select the desired DMX channel, for which the value is to be displayed. To exit the menu, press MENU, or wait 30 seconds. Fixture Settings Enter the control menu and select Fixture Settings, press ENTER.
  • Page 17 REV A 09/21/2024 Sound State Select Sound State, press ENTER. Use UP/DOWN button to select Off or On, confirm your selection with ENTER. To exit the menu, press MENU, or wait 30 seconds. Sound Sense Select Sound Sense, press ENTER. Use UP/DOWN button to select a value between 0 and 100, confirm your selection with ENTER.
  • Page 18 REV A 09/21/2024 Fixture Test Enter the control menu and select Fixture Test, press ENTER. Use the UP/DOWN button to select Auto Test or Manual Mode. Auto Test Select Auto Test, press ENTER. Use UP/DOWN button to select Single (the device immediately performs a single automatic self-test) or Cycle (the device immediately performs a cyclic automatic self-test), confirm your selection with ENTER.
  • Page 19 REV A 09/21/2024 LED Use Hour Select LED Use Hour, press ENTER. Use UP/DOWN button to select Total LED Hour (total time) or LED On Hour (current switch-on time), confirm your selection with ENTER. The total time or current switch-on time is displayed. Use UP/DOWN button to select LED Hours Reset, confirm your selection with ENTER.
  • Page 20 REV A 09/21/2024 Error Logs Select Error Logs, press ENTER. Use UP/DOWN button to select Fixture Errors, confirm your selection with ENTER. The error list is displayed. Use UP/DOWN button to select Reset Error Log, confirm your selection with ENTER. If you wish to reset the relevant error logs, select Yes.
  • Page 21 REV A 09/21/2024 RDM functions: Certain menus of the device and functions can be called up via the RDM protocol. The parameter IDs are implemented as follows for different commands: Command Command Command Parameter ID ‘Discovery’ ‘Set’ ‘Get’ DISC_UNIQUE_BRANCH √ DISC_MUTE √...

  • Page 22: Home Position Adjustment

    REV A 09/21/2024 6.2 Home Position Adjustment  To access the control menus, press the [MENU] button.  To access the offset menus, long-press the [ENTER] button.  Navigate the offset menus, using the [ENTER], [ UP] and [ DOWN] buttons. ...

  • Page 23: 07/ Configuring The Device For Dmx Control

    REV A 09/21/2024 07/ Configuring the Device for DMX Control 7.1 Address Setting All fixtures should be given a DMX starting address when operating with a DMX controller, in order to ensure that the correct fixture responds to the correct control signal. Incorrect settings will result in unpredictable responses from the lighting controller.

  • Page 24: Dmx Protocol

    REV A 09/21/2024 7.2 DMX Protocol CHANNEL VALUE FUNCTION GOBO WHEEL 000-007 Open 008-015 Gobo 1 016-023 Gobo 2 024-031 Gobo 3 032-039 Gobo 4 040-047 Gobo 5 048-055 Gobo 6 056-063 Gobo 7 064-071 Gobo 8 072-076 Gobo 1 Shaking, Slow to Fast 077-082 Gobo 2 Shaking, Slow to Fast 083-088...

  • Page 25: Special Function

    REV A 09/21/2024 SPECIAL FUNCTION (To activate following functions, stop in DMX value for at least 3 seconds.) 000-029 Null 030-039 Dimmer Curve: Linear 040-049 Dimmer Curve: Square Law 050-059 Dimmer Curve: Inverse Square Law 060-069 Dimmer Curve: S Curve 070-199 Null 200-209...

  • Page 26: 08/ Error Information

    REV A 09/21/2024 08/ Error Information Error codes are shown continuously in the display when the fixture fails and they will not disappear until the fixture is repaired. Led Temp. Error Check whether the temperature detecting board is normal. Check whether the components of the temperature detecting board are damaged.

  • Page 27: 09/ Troubleshooting

    REV A 09/21/2024 09/ Troubleshooting Problem Potential cause(s) Remedies Confirm that the power is switched No power to the fixture. Fixture does not respond on and cables are plugged in. or appears to be off. No output from PSU. Replace the PSU. Fixture suddenly turned Check the power supply, switches Power was turned off.

  • Page 28: 10/ Fixture Cleaning

    REV A 09/21/2024 10/ Fixture Cleaning Regular cleaning is very important for fixture life and performance. Buildup of dust, dirt, smoke particles, fog fluid residues, etc. degrades the fixture’s light output and cooling ability. Cleaning schedules for lighting fixtures vary greatly depending on the operating environment. It is therefore impossible to specify precise cleaning intervals for the fixture.
