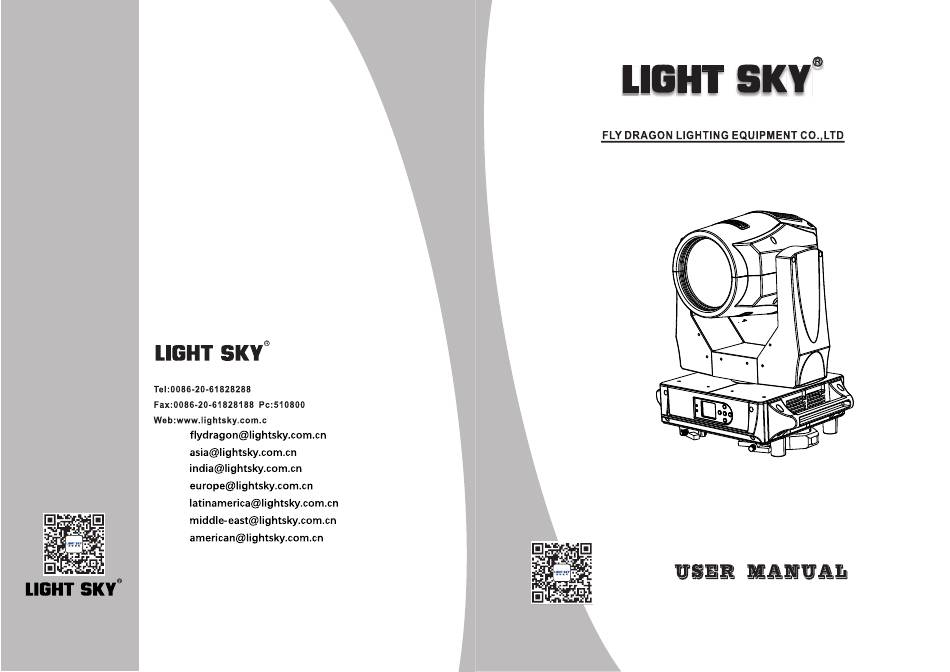

- Page 1 E-mail: F260II PLUS Address: No. 43, Yunfeng Road, Xiuquan Street, Huadu District, Guangzhou, China Please read these user manual carefully before use!
- Page 2 Contents 1. Safety information......................2 2. Technical information....................4 Attachment and body size..................6 4. Installation and connecting..................7 5. Control panel......................10 6. Menu setting.......................12 7. Channel function......................20 8. Circuit connecting diagram..................21 9. Cleaning and maintenances..................22 10.Troubeshooting......................22 11.Duty exonerative and copyright protection............23 Congratulations on choosing our company product! We thank you for your custom. ◆Please note that this product, as all the others in the rich my company range, has been designed and made with total quality to ensure excellent performance and best meet your expectations and requirements.
- Page 3 When the luminaire projects an object, the minimum distance of the luminaire to the flammable object is 12 meters. Please do not install the fixture onto combustible surface. The double insulation between the LV power supply and the control conductor on the fixture.
- Page 4 The fitting mounts a high-pressure lamp that needs an external . Immediately replace the lamp if damaged or deformed by heat. The light source in this fixture shall be replaced by the manufacturer or its service agent or similar qualification. Always disconnect from mains before replacing the lamp.
- Page 5 Power supplies available ： ●Features ● - Remote control lamp's swith function display light and AC100-240V 50/60Hz ： ● Power lamp's using time.automaticallay adjust cooling-fan's 360W，PF 0.986 speed,Drop power when strobe lens. ●Lamp - Brand：NEOLUX ● IP20 protection/IP20 STAGE 260W ®...
- Page 6 1 1 1 1 1 1 Blue distance,spot diameter and illumination diagram Standard 2°) 916000(85130) 358000(33271) 79888(7425) 32500(3020) 18900(1757) 12050(1120) 8825(820) Distance m(ft in) 2° diameter m(ft in) 0.17(7'') 0.35(1'2'') 0.70(2'4'') 1.1(3'7'') 1.43(4'8'') 1.8(5'11'' ) 2.15(7'1'' )
- Page 7 power cord...
- Page 8 Safety rope Safety rope Installing the projector- Fig. 3 The projector can be installed on the floor resting on special rubber feet, on a truss or on the ceiling or wall. WARNING:with the exception of when the projector is positioned on the floor, the safety rope must be fitted. This must be securely fixed to the support structure of the projector and then connected to the fixing point at the centre of the base.
- Page 9 power in power end The N terminal is connected with the blue line. Ground The L terminal is connected with the brown line. The stage lighting power supply can not be more than 3pcs pre line, ● different types of lamps are connected as follows: connection to the eiectricty mains must be carried out by a qualified electrical ●...
- Page 10 DMX512 in signal end Up arrowhead:page up Display Down arrowhead:page down Left arrowhead:reduce Right arrowhead:increase Enter:OK function Exit:in the choice screen...
- Page 13 CHANNEL FUNCTION(V1.0) CHANNEL table (standard 16CH) Percentage Channe Function Colour 0-1.56 White 1.96-3.14 White+Red 9-12 3.53-4.71 13-17 5.10-6.67 Red+Orange 18-21 7.06-8.24 Orange 22-25 8.63-9.80 Orange+Aquamarine Aquamarine 26-29 10.2-11.4 Aquamarine+Green 30-34 11.8-13.3 35-38 13.7-14.9 Green 39-42 15.3-16.5 Green+Light Green 43-46 16.9-18.0 Light Green 18.4-20.0 Light Green+Lavender...
- Page 14 Percentage Channe F un ct i on 0-255 0-100 Dimmer GOBO 0- 1.2 White 1.6-2.7 Gobo1 8-11 3.1-4.3 Gobo2 12-15 4.7-5.9 Gobo3 Gobo4 16-19 6.3-7.5 20-23 7.8-9.0 Gobo5 24-27 9.4-10.6 Gobo6 28-31 11.0-12.2 Gobo7 Gobo8 32-35 12.5-13.7 Gobo9 36-39 14.1-15.3 Gobo10 40-43 15.7-16.9...
- Page 15 Percentage Channe Function 192-207 75.3-81.2 Slow → Fast Rotation，90 degrees back and forth 208-223 81.6-87.5 Slow → Fast Rotation，180 degrees back and forth Slow → Fast Rotation，270 degrees back and forth 224-239 87.8-93.7 240-255 94.1-100 Slow → Fast Rotation，360 degrees back and forth Prism Macro 0-15 0-5.9...
- Page 16 CHANNEL table (steamline 14CH) Percentage Channe Function Colour 0-1.56 White 1.96-3.14 White+Red 9-12 3.53-4.71 13-17 5.10-6.67 Red+Orange 18-21 7.06-8.24 Orange 8.63-9.80 22-25 Orange+Aquamarine Aquamarine 26-29 10.2-11.4 Aquamarine+Green 30-34 11.8-13.3 35-38 13.7-14.9 Green 39-42 15.3-16.5 Green+Light Green 43-46 16.9-18.0 Light Green 18.4-20.0 Light Green+Lavender 47-51...
- Page 17 Percentage Channe F un ct i on 0-255 0-100 Dimmer GOBO 0- 1.2 White 1.6-2.7 Gobo1 8-11 3.1-4.3 Gobo2 12-15 4.7-5.9 Gobo3 Gobo4 16-19 6.3-7.5 20-23 7.8-9.0 Gobo5 24-27 9.4-10.6 Gobo6 28-31 11.0-12.2 Gobo7 Gobo8 32-35 12.5-13.7 Gobo9 36-39 14.1-15.3 Gobo10 40-43 15.7-16.9...
- Page 18 Percentage Channe Function 192-207 75.3-81.2 Slow → Fast Rotation，90 degrees back and forth 208-223 81.6-87.5 Slow → Fast Rotation，180 degrees back and forth Slow → Fast Rotation，270 degrees back and forth 224-239 87.8-93.7 240-255 94.1-100 Slow → Fast Rotation，360 degrees back and forth Prism Macro 0-15 0-5.9...
- Page 19 Channel table (16CH PLUS) Percentage Channe Function Colour 0-1.56 White 1.96-3.14 White+Red 9-12 3.53-4.71 13-17 5.10-6.67 Red+Orange 18-21 7.06-8.24 Orange 8.63-9.80 22-25 Orange+Aquamarine Aquamarine 26-29 10.2-11.4 Aquamarine+Green 30-34 11.8-13.3 35-38 13.7-14.9 Green 39-42 15.3-16.5 Green+Light Green 43-46 16.9-18.0 Light Green 18.4-20.0 Light Green+Lavender 47-51...
- Page 20 Percentage Channe Function 0-255 0-100 Dimmer GOBO 0-1.2 White 1.6-2.7 Gobo1 8-11 3.1-4.3 Gobo2 12-15 4.7-5.9 Gobo3 16-19 6.3-7.5 Gobo4 20-23 7.8-9.0 Gobo5 24-27 9.4-10.6 Gobo6 28-31 11.0-12.2 Gobo7 Gobo8 32-35 12.5-13.7 Gobo9 36-39 14.1-15.3 Gobo10 40-43 15.7-16.9 Gobo11 44-47 17.3-18.4 Gobo12 48-51...
- Page 21 Percentage Channe Function Prism Rotation Unused Range 1-63 0.4-24.7 0 - 180°rotation 64-127 25.1-49.8 CCW，Fast → Slow 128-191 50.2-74.9 CW，Slow → Fast 192-207 75.3-81.2 Slow → Fast Rotation，90 degrees back and forth 208-223 81.6-87.5 Slow → Fast Rotation，180 degrees back and forth Slow →...
- Page 23 CLEANING AND MAINTENANCES ●In order to ensure the projector could work normally.It should be kept clean always .It is recommended that the fans and ventilation in let should be cleaned every 15 days.The lens and dichroic colour filters should also be reg -ularly cleaned to maintain an optimum light output.Do not use any type of solvent on dichroic colour filters.It will damage the projector.
- Page 24 ■The light shadow is fogging: ◎Please check the data on the DMX 512 controller is suitable for the electric focus. ◎Please check the machenical parts is jamging.After cleaning,please add some temperature -durable juice. ■The light works interruptly: ◎Please check if the fan works normally or mote clogging. ◎Please check whether the abstract heat have the mote clogging.
