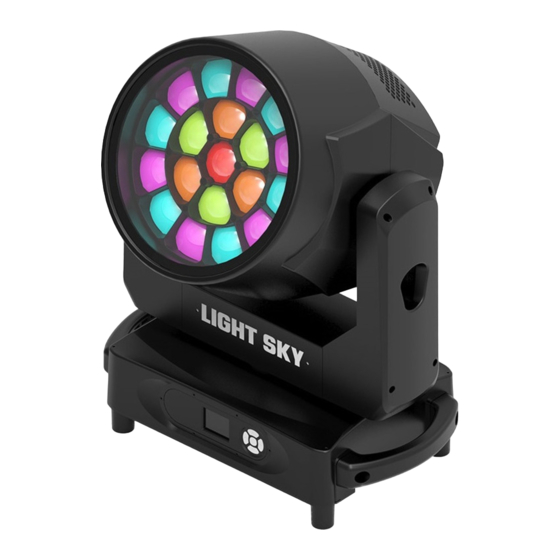

Light Sky AQUAPEARL-PRO User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

n
E-mail:
AQUAPEARL-PRO
Address: No. 43, Yunfeng Road, Xiuquan Street,
Huadu District, Guangzhou, China
Please read these user manual carefully before use!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AQUAPEARL-PRO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Light Sky AQUAPEARL-PRO

Summary of Contents for Light Sky AQUAPEARL-PRO

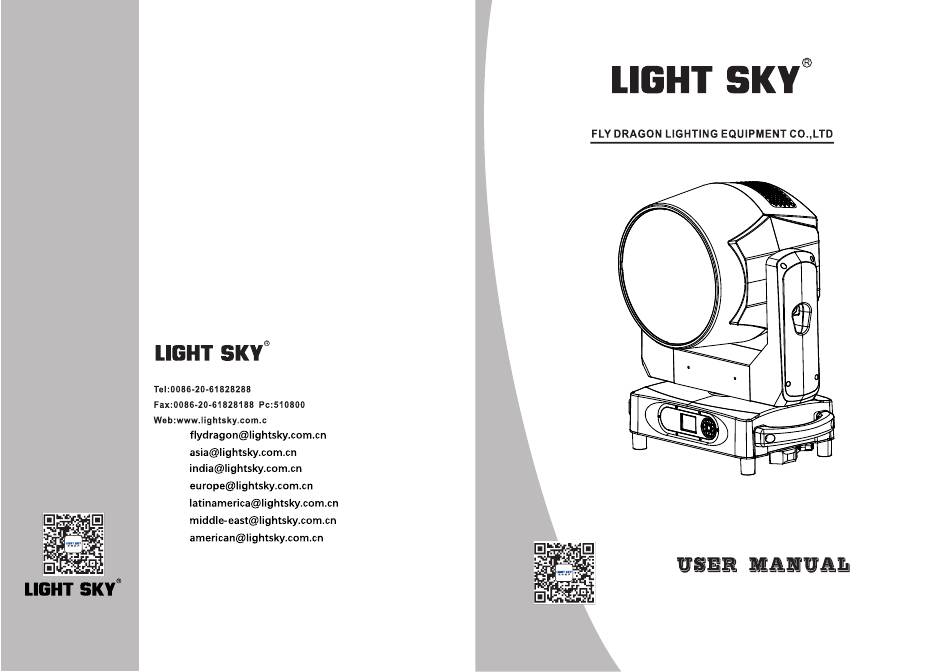

  • Page 1 E-mail: AQUAPEARL-PRO Address: No. 43, Yunfeng Road, Xiuquan Street, Huadu District, Guangzhou, China Please read these user manual carefully before use!

  • Page 2: Table Of Contents

    Contents 1. Safety information........................2 2. Technical information.......................4 3. Attachment and body size.......................6 4. Installation and connecting.....................7 5. Control panel..........................10 6. Menu setting...........................11 7. Channel function........................16 8. Circuit connecting diagram....................28 9. Cleaning and maintenances....................29 10.Troubeshooting........................30 11.Duty exonerative and copyright protection............31 Congratulations on choosing our company product! We thank you for your custom. ◆Please note that this product, as all the others in the rich my company range, has been designed and made with total quality to ensure excellent performance and best meet your expectations and requirements.

  • Page 3: Safety Information

    S A F E T Y I N F O R M AT I O N ■This lighting fixture is for professional use only - it is not for household use. ■ Installtion Make sure all parts for fixing the projector are in a good state of repair. Make sure the point of anchorage is stable before positioning the projector.
  • Page 4 80℃ The maximun temperature that can be reached on the external surface of the fitting, in a thermally steady state,is 80℃。 Avoid contact bypersons and materials. Allow the fixture to cool for at least 5 minutes before handling. In the event of a serious operating problem, stop using the fixture. There are no user serviceable parts inside the unit.

  • Page 5: Technical Information

    T E C H N I C A L I N F O R M AT I O N ● Power supplies available： ● ： Channel 100V~240V~ 50/60Hz Standard-1(26CH)、Mode-2(45CH)、Mode-3(98CH)、 ● Power： Mode-4(79CH)、Mode-5(22CH)、Mode-6(16CH)、 800W，PF0.985 Mode-7(39CH)、Mode-8(35CH). ● Light Source： ● ： Display Menu OSRAM 40W，RGBW 4 in 1 LED chip.
  • Page 6 Distance,spot diameter and illumination diagram 168(15.6) 95((9) 53(4.92) 31.6(2.94) 60°Lux(fc) R 315(29.3) 188(17.5) 105(9.76) 56(5.2) 98(9.1) 56(5.2) 36(3.35) 18(1.2） 480(44.6) 295(27.4) 165(15.3) 92.4(8.6) 938(87.2) 557(51.8) 306(28.4) RGBW 117.6(10.9) 4371(406) 2600(241.6） 1574(146.3) 551(51.2) 4. 5°Lux(fc) 8569(796.4) 4668(433.8) 2276(211.5) 1009(93.8) 2447(227.4) 1364(126.8) 653(60.7) 296(27.5) 7357(638.7)

  • Page 7: Attachment And Body Size

    ATTACHMENT AND BODY SIZE power cord 4 4 0 3 3 3 32 3 47 0 47 0 3 33...

  • Page 8: Installation And Connecting

    INSTALLATION AND CONNECTING Safety rope Installing the projector- Fig. 3 Compact,standard clamp system equipped & easy installation The projector can be installed on the floor resting on special rubber feet, on a truss or on the ceiling or wall. WARNING:with the exception of when the projector is positioned on the floor, the safety rope must be fitted. This must be securely fixed to the support structure of the projector and then connected to the fixing point at the centre of the base.
  • Page 9 power in out power end Ground The N terminal is connected with the blue line. The L terminal is connected with the brown line. Watertight seal ring Watertight seal ring The stage lighting power supply can not be more than 2pcs pre line ●...
  • Page 10 signal end DMX512 in DMX - output DMX-input 1 - Shield - Shield 2 - Signal (-) - Signal (-) - Signal (+) - Signal (+) - Not connected - Not connected - Not connected - Not connected...

  • Page 11: Control Panel

    C O N T RO L PA N E L ENTER RIGHT LEFT Up arrowhead : page up Down arrowhead : page down Left arrowhead : reduce Right arrowhead : increase DOWN Enter : OK function Exit : in the choice screen DMX: Information Personal...

  • Page 12: Menu Setting

    M E N U S E T T I N G IV menu Main menu Ⅰmenu Ⅱ menu Ⅲ menu Address Wire priority DMX Signal mode ARTNET priority IP address Mask Address Seettings Net Address No Artnet board ART-NET Sub net Address UniverseAddress Return(ESC) Return(ESC)
  • Page 13 Main menu Ⅰmenu Ⅱ menu Ⅲ menu IV menu 11.Macro *** 12.CCT *** 13.Sta Effect *** 14.MoveEffect *** 15.EffectSP *** 16.LED Fade *** 17.Back Color *** 18.Back Dimmer *** DMX live 19.Red *** 20.Green *** Information 21.Blue *** 22.White *** 23.Auar Dimmer *** 24.Auar color macro *** 25.Auar EffectMac ***...
  • Page 14 Main menu Ⅰmenu Ⅱ menu Ⅲ menu IV menu Linear Square Dimmer curve I-Square SCurve Pan invert Personal P/T invert Tilt invert Return(ESC) Always on Backlight Auto off (15s) Normal Rotate Display Rotate 180 Backlight blink Return(ESC) XY Sensor Power Return(ESC) 1.Pan *** 2.Pan Fine ***...
  • Page 15 IV menu Main menu Ⅰmenu Ⅱ menu Ⅲ menu 21.Blue *** 22.White *** 23.Auar Dimmer *** Channel control 24.Auar color macro *** 25.Auar EffectMac *** 26.Auar EffectSP *** Manual control Return(ESC) Reset all Pan/Tilt reset Reset Zoom reset Return(ESC) Return(ESC) Error list Error information Empty list...
  • Page 16 Main menu Ⅰmenu Ⅱ menu Ⅲ menu IV menu Load default Reset timers Clear logged temperature Factory Service Developer Firmware update Return(ESC) Return(ESC) Test P/T STEP *** Test effect STEP *** Test Test all STEP *** Return(ESC) English Language Chinese Normal Rotate display...

  • Page 17: Channel Function

    C H A N N E L F U N C T I O N Standard(26CH) Channel Percentage Function 0-255 0-255 Pan Fine 0-255 Tilt 0-10 Tilt Fine 0-25 No Function 26-30 Zoom Reset 31-40 P/T Reset 41-50 System Reset 51-255 No Function 0-255...
  • Page 18 Mode 2（45CH) Channel Percentage Function 0-255 0-255 Pan Fine 0-255 Tilt 0-255 Tilt Fine 0-25 No Function 26-30 Zoom Reset 31-40 P/T Reset 41-50 System Reset 51-255 No Function 0-255 Zoom 0-255 Zoom Rotation 0-255 Dimmer 0-255 Dimmer Fine Shutter 0-3.5 NO Function 10-49...
  • Page 19 Channel Percentage Function 0-255 Color12 0-255 Color13 0-255 Color14 0-255 Color15 0-255 Color16 0-255 Color17 0-255 Color18 0-255 Color19 0-255 Auar Dimmer 0-255 Auar Color Macro 0-255 Auar Effect Macro 0-255 Auar Effect Speed...
  • Page 20 Mode 3（98CH) Channel Percentage Function 0-255 0-255 Pan Fine 0-255 Tilt 0-255 Tilt Fine 0-25 No Function 26-30 Zoom Reset 31-40 P/T Reset 41-50 System Reset 51-255 No Function 0-255 Zoom 0-255 Zoom Rotation 0-255 Dimmer 0-255 Dimmer Fine Shutter 0-3.5 NO Function 10-49...
  • Page 21 Channel Percentage Function White-4 0-255 Red-5 0-255 Green-5 0-255 Blue-5 0-255 White-5 0-255 Red-6 0-255 Green-6 0-255 Blue-6 0-255 White-6 0-255 Red-7 0-255 Green-7 0-255 Blue-7 0-255 White-7 0-255 Red-8 0-255 Green-8 0-255 Blue-8 0-255 White-8 0-255 Red-9 0-255 Green-9 0-255 Blue-9 0-255...
  • Page 22 Channel Percentage Function Red-16 0-255 Green-16 0-255 Blue-16 0-255 White-16 0-255 Red-17 0-255 Green-17 0-255 Blue-17 0-255 White-17 0-255 Red-18 0-255 Green-18 0-255 Blue-18 0-255 White-18 0-255 Red-19 0-255 Green-19 0-255 Blue-19 0-255 White-19 0-255 0-255 Auar Dimmer 0-255 Auar Color Macro 0-255 Auar Effect Macro 0-255...
  • Page 23 Mode 4（79CH) Channel DMX Percentage Function 0-255 0-255 Pan Fine 0-255 Tilt 0-255 Tilt Fine 0-25 No Function 26-30 Zoom Reset 31-40 P/T Reset 41-50 System Reset 51-255 No Function 0-255 Zoom 0-255 Zoom Rotation 0-255 Dimmer 0-255 Dimmer Fine Shutter 0-3.5 NO Function...
  • Page 24 Channel Percentage Function Green-6 0-255 Blue-6 0-255 Red-7 0-255 Green-7 0-255 Blue-7 0-255 Red-8 0-255 Green-8 0-255 0-255 Blue-8 Red-9 0-255 Green-9 0-255 Blue-9 0-255 Red-10 0-255 Green-10 0-255 Blue-10 0-255 Red-11 0-255 Green-11 0-255 Blue-11 0-255 Red-12 0-255 Green-12 0-255 Blue-12 0-255...
  • Page 25 Mode 5（22CH) Channel Percentage Function 0-255 0-255 Pan Fine 0-255 Tilt 0-255 Tilt Fine 0-25 No Function 26-30 Zoom Reset 31-40 P/T Reset 41-50 System Reset 51-255 No Function 0-255 Zoom 0-255 Zoom Rotation 0-255 Dimmer 0-255 Dimmer Fine Shutter 0-3.5 NO Function 10-49...
  • Page 26 Mode 6（16CH) Channel Percentage Function 0-255 0-255 Pan Fine 0-255 Tilt 0-255 Tilt Fine 0-25 No Function 26-30 Zoom Reset 31-40 P/T Reset 41-50 System Reset 51-255 No Function 0-255 Zoom 0-255 Zoom Rotation 0-255 Dimmer 0-255 Dimmer Fine Shutter 0-3.5 NO Function 10-49...
  • Page 27 Mode 7（39CH) Channel Percentage Function 0-255 0-255 Red fine 0-255 Green 0-255 Green fine 0-255 Blue 0-255 Blue fine 0-255 White 0-255 White fine 0-255 Linear CTO 0-255 Macro colour 0-255 Strobe 0-255 Dimmer 0-255 Dimmer Fine 0-255 0-255 Pan Fine 0-255 Tilt 0-255...
  • Page 28 Mode 8（35CH) Channel Percentage Function 0-255 0-255 Red fine 0-255 Green 0-255 Green fine 0-255 Blue 0-255 Blue fine 0-255 White 0-255 White fine 0-255 Linear CTO 0-255 Macro colour 0-255 Strobe 0-255 Dimmer 0-255 Dimmer Fine 0-255 0-255 Pan Fine 0-255 Tilt 0-255...

  • Page 29: Circuit Connecting Diagram

    CIRCUIT CONNECTING DIAGRAM...

  • Page 30: Cleaning And Maintenances

    CLEANING AND MAINTENANCES ■1.In order to ensure the projector could work normally. It should be kept clean always . The lens should also be regularly cleaned to maintain an optimum light output. Do not use any type of solvent on lens. It will damage the projector. ■2.Suggestion: The continue usage of the light don't exceed 4 hours.

  • Page 31: Troubeshooting

    T RO U B E S H O OT I N G It is recommended some solution for some normal trouble shooting. Any inextricability problems should always be handling by the professional person. Disconnect the power supply before maintenance the light. ■...
