Summary of Contents for Light Sky AQUABEAM400 LL

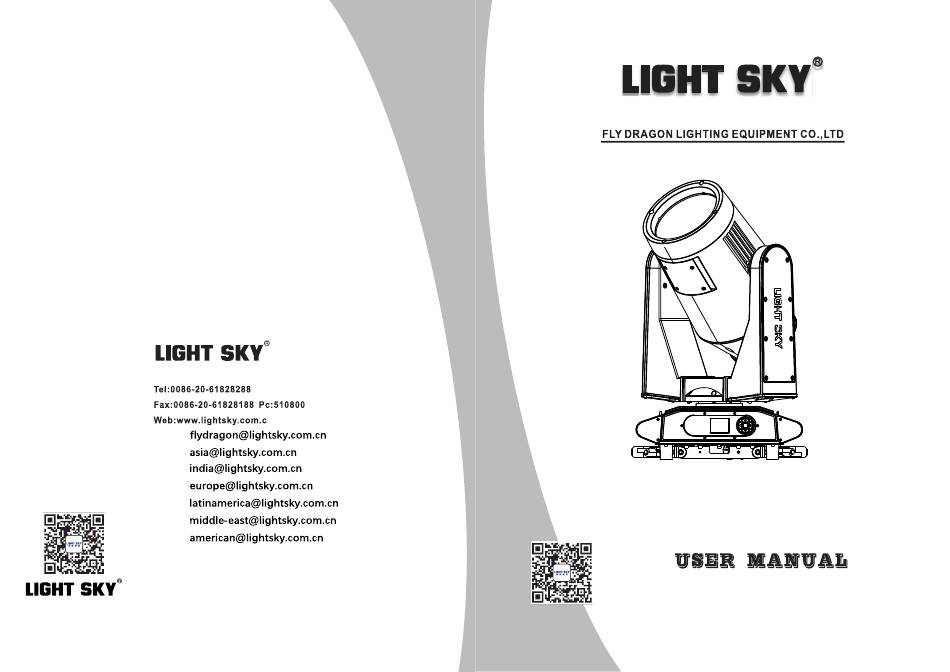

- Page 1 E-mail: AQUABEAM400 LL Address: No. 43, Yunfeng Road, Xiuquan Street, Huadu District, Guangzhou, China Please read these user manual carefully before use!
-
Page 2: Table Of Contents
Contents 1. Safety information......................2 2. Technical information....................4 Attachment and body size..................7 4. Installation and connecting..................8 5. Control panel......................11 6. Menu setting.......................12 7. Channel function......................16 8. Circuit connecting diagram..................19 9. Cleaning and maintenances..................20 10.Troubeshooting......................20 11.Duty exonerative and copyright protection............21 Congratulations on choosing our company product! We thank you for your custom. ◆Please note that this product, as all the others in the rich my company range, has been designed and made with total quality to ensure excellent performance and best meet your expectations and requirements. -
Page 3: Safety Information
SAFETY INFORMATION ■This lighting fixture is for professional use only - it is not for household use. ■ Installtion Make sure all parts for fixing the projector are in a good state of repair. Make sure the point of anchorage is stable before positioning the projector. The safety chain must be prgperly hooked onto the fitting and secured to the framework. - Page 4 ■ Temperature of the external surface The maximum temperature that can be reached on the external surface of the fitting, in a thermally steady state, is 100℃. ■ Maintenance Before starting any maintenance work or cleaning the projector, cut off power from the mains supply. After switching off, do not remove any parts of the fitting, to avoid getting burnt for at least 30 minutes.
-
Page 5: Technical Information
TECHNICAL INFORMATION ： Software upgrade ● Power supplies ● ： available Upgrade via DMX interface ： Display Menu 100-240V ～/50-60Hz ● 550W PF≥0.98 -The display panel adopts a 2.0-inch LCD12864 ： Power ● screen, which is used in both Chinese and English ：... - Page 6 1 1 1 1 1 1 Color wheel Static gobo wheel CMY color mixing system Prism wheel 2 Prism wheel 1...
- Page 7 distance, spot diameter and illumination diagram 165000(15335) 70000(6506) 40000(3717) 6600(613) 24900(2314) 17140(1592) 2° Distance m(ft in) Diameter m(ft in) 0.35 0.69 1.04 5 11 2.08 6 10...
-
Page 8: Attachment And Body Size
ATTACHMENT AND BODY SIZE power cord... -
Page 9: Installation And Connecting
INSTALLATION AND CONNECTING Safety rope Installing the projector- Fig. 3 The projector can be installed on the floor resting on special rubber feet, on a truss or on the ceiling or wall. WARNING:with the exception of when the projector is positioned on the floor, the safety rope must be fitted. This must be securely fixed to the support structure of the projector and then connected to the base handle. - Page 10 power in power end Ground The N terminal is connected with the blue line. The L terminal is connected with the brown line. Watertight seal ring Watertight seal ring The stage lighting delivers a three-core waterproof plug. ● The stage lighting power supply can not be more than 2pcs pre line. ●...
- Page 11 DMX512 in signal end DMX - output DMX-input 1 - Shield - Shield 2 - Signal (-) - Signal (-) - Signal (+) - Signal (+) - Not connected - Not connected - Not connected - Not connected all the projectors are together The projector dn’t touch each other or plinth).
-
Page 12: Control Panel
CONTROL PANEL D isp la y ENTER Up arrowhead : page up Down arrowhead : page down RIGHT LEFT Left arrowhead : reduce Right arrowhead : increase Enter : OK function Exit : in the choice screen DOWN ● Press the switch.The projector starts resetting the effects. At the same time,the following information scrolls on the display （please refer to the actual material) DMX:... -
Page 13: Menu Setting
Ⅰ menu Ⅱ menu Ⅲ menu Main menu Address : 001- 512 Address → Return(ESC) Checksum Error → :**** H Total Hours Power Hours → :**** H Rst Hours :**** H Total Hours Lamp Hours → Rst Hours :**** H Total Strikes :**** Lamp Strikes... - Page 14 Main menu Ⅰmenu Ⅱ menu Ⅲ menu 15.Tilt (***) 16.Tilt Fine (***) DMX live 17.Function (***) : V*.** Information Gobo : V*.** System version → : V*.** : V*.** Display : V*.** Return(ESC) Display lock → Auto lamp on → Pan invert →...
- Page 15 Main menu Ⅰmenu Ⅱ menu Ⅲ menu 17.Function (***) Return(ESC) Reset all Pan/Tilt reset Manual control Gobo reset → Reset → Color reset Dimmer reset Focus reset Return(ESC Return(ESC) Error list Error information → Empty list → Return(ESC) 000-255 Tilt 000-255 Dimmer1 000-255...
- Page 16 Main menu Ⅰmenu Ⅱ menu Ⅲ menu Easy control Test tilt Test Pan Manual fan Vol FanSpeedToLamp Manual OR DMX Lamp Power Set Power Service → Developer → Factory Power ON/OFF Load font Set LOGO UP LOGO Language 5Min Lamp off Return(ESC) Firmware update Return(ESC)
-
Page 17: Channel Function
CHANNEL FUNCTION(V1.0) Percentage Channel Function 0-255 0-100 Cyan 0-255 0-100 Magenta 0-255 0-100 Yellow Colour 0-1.56 White 1.96-3.14 White+Red 9-12 3.53-4.71 Red 13-17 5.10-6.67 Red+Orange 18-21 7.06-8.24 Orange 22-25 8.63-9.80 Orange+Aquamarine 26-29 10.2-11.4 Aquamarine 30-34 11.8-13.3 Aquamarine+Green 35-38 13.7-14.9 Green 39-42 15.3-16.5 Green+Light Green 43-46... - Page 18 Percentage Channel Function Strobe 0-1.2 Closed 4-103 1.6-40.4 Slow-Fast Strobe 104-107 40.8-42.0 Open Opening pulses in sequences from slow fast 108-157 42.4-61.6 158-207 62.0-81.2 Closing pulses in sequences from fast slow 208-212 81.6-83.1 Open 213-251 83.5-98.4 Random Slow-Fast Strobe 252-255 99.8-100 Open 0-255...
- Page 19 Percentage Channel Function Prism 0-63 0-24.7 Unused Range 64-127 25-49.8 Prism1 128-191 50.2-74.9 Prism2 192-255 75.3-100 Prism1+Prism2 Prism Rotation Unused Range 1-63 0.4-24.7 Angular linear regulation Selection of three prism effects: setting prism (prism 1, prism 2 or prism 1+2) in channel 5; 64-127 25.1-49.8 CCW，Fast →...
