Summary of Contents for Light Sky F1700WB -E

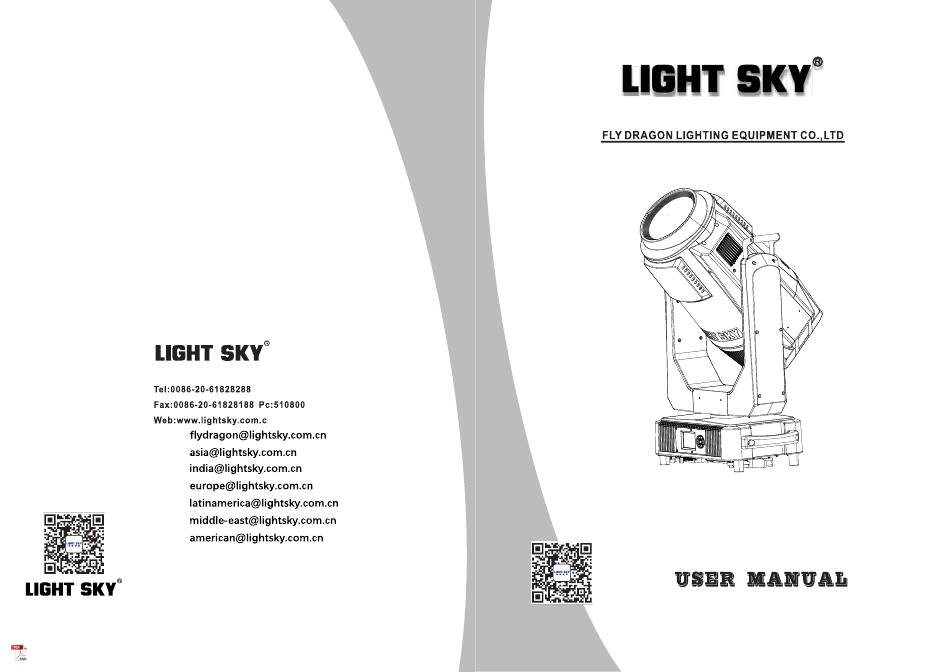

- Page 1 E-mail: F1700W B-E Address: No. 43, Yunfeng Road, Xiuquan Street, Huadu District, Guangzhou, China Please read these user manual carefully before use!
-
Page 2: Table Of Contents
Contents 1. Safety information......................2 2. Technical information....................4 Attachment and body size..................7 4. Installation and connecting..................8 5. Control panel......................11 6. Menu setting.......................12 7. Channel function......................16 8. Circuit connecting diagram..................18 9. Cleaning and maintenances..................19 10.Troubeshooting......................19 11.Duty exonerative and copyright protection............22 Congratulations on choosing our company product! We thank you for your custom. ◆Please note that this product, as all the others in the rich my company range, has been designed and made with total quality to ensure excellent performance and best meet your expectations and requirements. -
Page 3: Safety Information
SAFETY INFORMATION ■This lighting fixture is for professional use only - it is not for household use. Make sure all parts for fixing the projector are in a good state of repair. Make sure the point of anchorage is stable before positioning the projector. The safety chain must be prgperly hooked onto the fitting and secured to the framework. - Page 4 120℃ The maximun temperature that can be reached on the external surface of the fitting, in a thermally steady state,is 120℃。 Before starting any maintenance work or cleaning the projector, cut off power from the mains supply. After switching off, do not remove any parts of the fitting, to avoid getting burnt for at least 30 minutes. After this time the likelihood of the lamp exploding is virtually nill.
-
Page 5: Technical Information
TECHNICAL INFORMATION Power supplies available ： IP set ● ： ● 198 264 V～ 50/60Hz 11A built-in long-life battery, can set address without Power ： ● power connection - 2000W PF≥0.98 Software upgrade ： ● L amp ： Upgrade via USB interface ●... - Page 7 射 距 、光斑 直径 与照 度关系图(B EAM模式） distance, spot diameter and illumination diagram（Beam model） 45 highlights 720(67) 420(39) 1770(164) 205(19) 130(12) 112(10) 4 highlights 76090(7071) 32800(3048) 18100(1682) 8830(820) 4850(451) 2970(276) 4° 45° Distance m 4 diameter m(ft in) 0. 8(2 7 ) 1.
-
Page 8: Attachment And Body Size
ATTACHMENT AND BODY SIZE... -
Page 9: Installation And Connecting
INSTALLATION AND CONNECTING Safety rope Installing the projector- Fig. 3 The projector can be installed on the floor resting on special rubber feet, on a truss or on the ceiling or wall. WARNING:with the exception of when the projector is positioned on the floor, the safety rope must be fitted. This must be securely fixed to the support structure of the projector and then connected to the base handle. - Page 10 N(White/Blue) L(Black/Brown) (Green/Yellow Green) POWER IN Wire color-coding and power connections ： Wire Color Wire Color Conductor Symbol (EU models) (US models) black brown live neutral blue white ground(earth) green yellow-green connection to the eiectricty mains must be carried out by a qualified electrical ●...
- Page 11 DMX512 in out signal end DMX - output DMX-input 1 - Shield - Shield 2 - Signal (-) - Signal (-) - Signal (+) - Signal (+) - Not connected - Not connected - Not connected - Not connected ● Please use the round 3 or 5-pin XLR plugs &sockets offered by menu facture to connect the first projector's output to the second projector' input and connect the second projector's output to the third projector's input.
-
Page 12: Control Panel
CONTROL PANEL D ispl ay ENTER Up arrowhead : page up Down arrowhead : page down RIGHT LEFT Left arrowhead : reduce Right arrowhead : increase Enter : OK function Exit : in the choice screen DOWN ● Press the switch.The projector starts resetting the effects. At the same time,the following information scrolls on the display （please refer to the actual material) DMX:... -
Page 13: Menu Setting
Fan voltage / 风 Lamp fan 2 扇电压 Lamp fan 3 Lamp fan 4 Power fan UID:0x3888XXXXXXXX RDM info/RDM信息 → Manufactory Label：LIGHT SKY Device Label：F1700WB-E 1.Pan 0 - 255 2.Pan fine 0 - 255 3.Tilt 0 - 255 4.Tilt Fine... - Page 14 Ⅰ menu Ⅱ menu Ⅲ menu ⅠV menu Mainmenu Pan/Tilt VX.XXX Version info → Color module → VX.XXX Zoom module VX.XXX FanDrv VX.XXX Input voltage XXXV Output voltage XXXV Info Input current XXXA → Output Power XXXW Ballast info → Internal.T XXX℃...
- Page 15 Ⅰ menu Ⅱ menu Ⅲ menu ⅠV menu Mainmenu 16.Frost1 0 - 255 Manual Control → 17.Frost2 0 - 255 Lamp Switch → Manual → Pan/Tilt reset Dimmer reset Reset → Color reset Focus reset Total reset Test all Test in process Test Test pan/tilt →...
- Page 16 Ⅰ menu Ⅱ menu Ⅲ menu ⅠV menu Mainmenu Manual Power Pass Developer word Manual OR DMX → Display Pan/Tilt / XY Color module Simple update → Zoom module Service Factory FANDRV → → Pass Update word Display → Pan/Tilt / XY Color module Whole update →...
-
Page 17: Channel Function
CHANNEL FUNCTION Function Note Channel Percentage 0-255 0-100 0-255 0-100 Pan Fine 0-255 0-100 Tilt 0-255 0-100 Tilt fine 0-255 0-100 Pan/Tilt speed Reserved (0=default) 10-14 RESET ALL 15-19 RESET DIMMER SHUTTER 20-24 RESET COLOR 25-29 Reserved 30-34 RESET PT 35-39 RESET ZOOM 40-44... - Page 18 Function Note Channel Percentage 50 -- 59 60 -- 255 Frost 1 Minimum atomization to maximum atomization 0 - 127 Slow in and fast out from slow to fast 128 - 159 Fast in and slow out from slow to fast 160 - 191 192 - 255 Slow in Slow out from slow to fast...
-
Page 20: Cleaning And Maintenances
CLEANING AND MAINTENANCES TROUBESHOOTING... - Page 21 ◎ Please check whether the DMX512 controller pass the “turn on”oder. ◎ Please check the connection of the trigger circuit is loose contact. ◎ Please check whether the connected point of he trigger point is loose contact, faster the connect cable. ◎...
