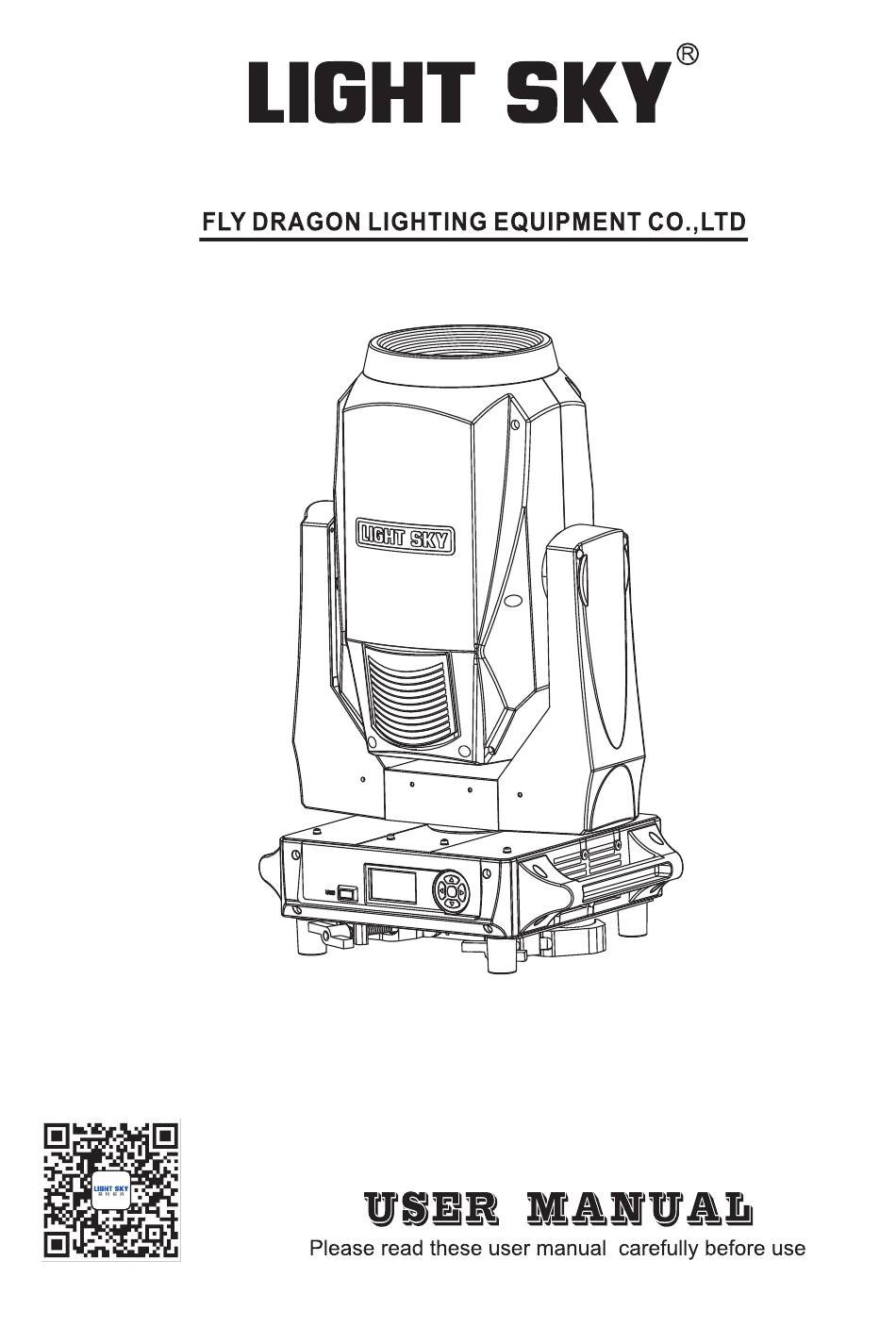

- Page 1 F400BSW...
-
Page 2: Table Of Contents
Contents 1. Safety information........................2 2. Technical information......................4 3. Attachment and body size.....................6 4. Installation and connecting....................7 5. Control panel.........................9 6. Menu setting..........................10 7. Channel function........................16 8. Circuit connecting diagram....................21 9. Cleaning and maintenances....................22 10. Troubeshooting........................22 11. Duty exonerative and copyright protection..............24 Congratulations on choosing our company product! We thank you for your custom. -
Page 3: Safety Information
SAFETY INFORMATION When the luminaire projects an object, the minimum distance of the luminaire to the flammable object is 12 meters. Please do not install the fixture onto combustible surface. Distance between this fixture and combustible goods needs more than 1 meter. Ensure a minimum clearance of 0.2m around the cooling fans and ventilation. - Page 4 The fitting mounts a high-pressure lamp that needs an external . Immediately replace the lamp if damaged or deformed by heat. The light source in this fixture shall be replaced by the manufacturer or its service agent or similar qualification. Always disconnect from mains before replacing the lamp.
-
Page 5: Technical Information
Power supplies available ● IP set ● 100V~240V~ 50/60Hz 5A - Automatic charge battery, IP could be set without Power ● electricity. 495W(220V/50Hz) PF0.98 Lamp Software upgrade - Brand： - Insert USB upgrade software. USHIO NSL360(31mmWD) - Lamp power：360W ●Features - Colour temperature;6900K - Remote control lamp's swith function display light - Average life:1500h... - Page 6 Static gobo wheel Rotating gobo wheel Dark red Heat insulation Dark blue Nacarat Light blue CTO2 Dark green CTO2 Cyan Green Magenta Purple Yellow Pink Photometric Data: Lux(fc) 20°highlights 12900( 1191) 5650(525) 3220(299) 1310(122) 845(79) 452(42) 1.5°highlights 244000( 22677) 113000( 10502) 58000(5390) 29000(2695) 16200(1506)
-
Page 7: Attachment And Body Size
power cord... -
Page 8: Safety Rope
Safety rope Safety rope Installing the projector- Fig. 3 The projector can be installed on the floor resting on special rubber feet, on a truss or on the ceiling or wall. WARNING:with the exception of when the projector is positioned on the floor, the safety rope must be fitted. This must be securely fixed to the support structure of the projector and then connected to the fixing point at the centre of the base. - Page 9 power in power end The N terminal is connected with the blue line. Ground The L terminal is connected with the brown line. The stage lighting power supply can not be more than 2pcs pre line ● connection to the eiectricty mains must be carried out by a qualified electrical ●...
-
Page 10: Control Panel
s igna l end DMX512 in all the projectors are together The projector dn’t touch each other or plinth). Recommend to use the DMX nnection. Up arrowhead:page up D is pl ay Down arrowhead:page down Left arrowhead:reduce Right arrowhead:increase Enter:OK function Exit:in the choice screen DM X: Information... -
Page 11: Menu Setting
Ⅰ menu Ⅱ menu Ⅲ menu Main menu Address DMX Address → :001-512 Total:****(h) Lamp hours → Lamp open: ** * *( h ) PVG_TEM:***.* Temperature → Board:***.* → Undistributed RDM UID → MOTOR UID Fan::**.*V Fan1:**.*V Fan speed/Voltag Fan2:**.*V →... - Page 12 Ⅰ menu Ⅱ menu Ⅲ menu Main menu Standard(18CH) Channel mode → Simple(20CH) Auto lamp on → → Pan invert P/T invert → → Tilt inver Personal English Language → Chinese Open Back Light → Auto close(15s) → → Display Normal →...
- Page 13 Ⅰ menu Ⅱ menu Ⅲ menu Main menu System reset → Pan/Tilt reset → Reset Head motor reset Return(ESC) → Test P/T STEP *** → → STEP *** Test effect Test → → Test all STEP *** Return(ESC) Return(ESC) Error list Keep →...
- Page 14 Ⅰ menu Ⅲ menu Ⅳ menu Main menu Ⅱ menu Auto Zoom 000-255 → → Zoom Cal. S.Gobo-10M 000-255 Focus Cal. 000-255 Auto Zoom 000-255 Zoom Cal. → → S.Gobo-15M 000-255 Focus Cal. 000-255 Auto Zoom 000-255 Zoom Cal. → →...
- Page 15 Ⅰ menu Ⅲ menu Ⅳ menu Main menu Ⅱ menu Auto Zoom 000-255 → → Zoom Cal. R.Gobo-10M 000-255 Focus Cal. 000-255 Auto Zoom 000-255 Zoom Cal. → → R.Gobo-15M 000-255 Focus Cal. 000-255 Auto Zoom 000-255 Zoom Cal. → →...
- Page 16 Ⅰ menu Ⅱ menu Ⅲ menu Main menu Defualt → Time clean → Factory Service Developer → Firmware update Standard mode → Fan mode 3000-4000M 4000-5500M Return(ESC) → Lamp English Language → Chinese Normal Reversal → Rota.180...
-
Page 17: Channel Function
C H A N N E L F U N C T I O N(V1.0) Percentage Function 0-255 0-100 Dimmer Shutter/ strobe 0-31 0-12.35 Shutter closed 32-63 12.35-24.9 Shutter open, Full lamp power 64-95 24.9-37.45 Strobe-effect from slow to fast Shutter open 96-127 37.45-50... - Page 18 Percentage function 145-151 56.67-59.41 Cyan+CTO2 152-158 CTO2 59.41-62.16 159-165 CTO2+CTB 62.16-64.9 166-172 64.9-67.65 CTB+Dark Blue 173-179 67.65-70.39 Dark Blue 180-186 70.39-73.14 Forwards rainbow effect from fast to slow 73.14-86.08 187-219 220-222 86.08-87.25 No rotation Backwards rainbow effect from slow to fast 87.25-100 223-255 Static gobo wheel...
- Page 19 Percentage function Gobo12 176-183 68.82-71.96 Open/hole 184-191 71.96-75.1 Open/hole 192-199 75.1-78.24 Open/hole 200-201 78.24-79.02 Forwards gobo wheel rotation from fast to slow 202-221 79.02-86.86 No rotation 222-223 86.86-87.65 Backwards gobo wheel rotation from slow to fast 224-243 87.65-95.49 244-249 95.49-97.84 Unused range Auto random gobo selection from fast to slow 250-255...
- Page 20 Percentage /百分比 Function/功能 Rot. gobo indexing and rotation 0-127 0-50 Gobo indexing Forwards gobo rotation from fast to slow 128-187 50-73.53 188-195 73.53-76.67 No rotation Backwards gobo rotation from slow to fast 196-255 76.67-100 Frost 0-127 0-50 Close 128-255 50-100 Open Focus 0-100...
- Page 21 Percentage Function Autofocus (priority & distance selection) Select desired distance and effect on which you need to focus and use "Focus" channel (18/20) to focus the image. 0-15 0-5.69 Autofocus Off 16-55 5.69-21.37 10 metres 56-95 21.37-37.06 15 metres 96-135 37.06-52.75 20 metres 136-175...
-
Page 23: Cleaning And Maintenances
CLEANING AND MAINTENANCES ●In order to ensure the projector could work normally.It should be kept clean always .It is recommended that the fans and ventilation in let should be cleaned every 15 days.The lens and dichroic colour filters should also be reg -ularly cleaned to maintain an optimum light output.Do not use any type of solvent on dichroic colour filters.It will damage the projector. - Page 24 ■The light shadow is fogging: ◎Please check the data on the DMX 512 controller is suitable for the electric focus. ◎Please check the machenical parts is jamging.After cleaning,please add some temperature -durable juice. ■The light works interruptly: ◎Please check if the fan works normally or mote clogging. ◎Please check whether the abstract heat have the mote clogging.
-
Page 25: Duty Exonerative And Copyright Protection
DUTY EXONERATIVE AND COPYRIGHT PROTECTION ◇The lamp belongs to consumption products that is not guarantee to keep it in good repair. ◇Any products broken that didn't according to the instruction is not guarantee to keep it in good repair. ◇The commentary for all the instruction belongs to the supplier in final. ◇No authorize can't copy. - Page 27 E-mail: Address: No. 43, Yunfeng Road, Xiuquan Street, Huadu District, Guangzhou, China...
