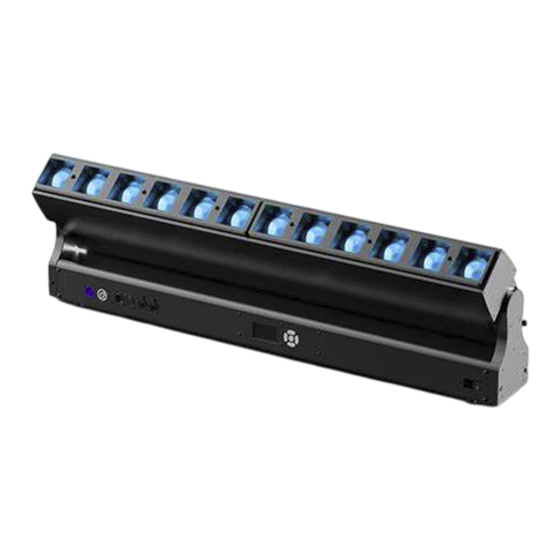

Light Sky MAMBA User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
M A M BA
n
E-mail:
Address: No. 43, Yunfeng Road, Xiuquan Street,
Huadu District, Guangzhou, China

Advertisement

Table of Contents
loading

Related Manuals for Light Sky MAMBA

Summary of Contents for Light Sky MAMBA

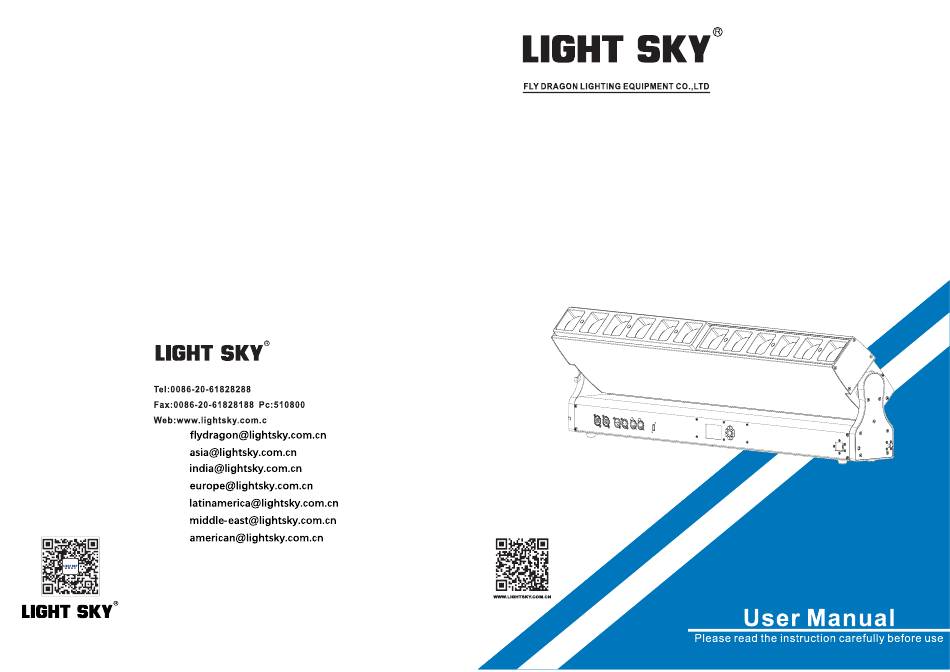

  • Page 1 M A M BA E-mail: Address: No. 43, Yunfeng Road, Xiuquan Street, Huadu District, Guangzhou, China...

  • Page 2: Table Of Contents

    CONTENTS 1、 ....................2 Safety Instructions 2、 ..................5 Technical Specifications 2.1、 ..................7 Attachment And Size 3、 ......................8 Control Panel 4、 ....................9 How To Set The Unit 4.1、 ....................9 Main Function 5、 ..................20 Connection and control 5.1、 ................20 Power supply connection 5.2、 ..................21 DMX 512 Connection 5.3、...

  • Page 3: Safety Instructions

    1.Safety Instructions Please read the instruction carefully which includes important information about the installation, usage and maintenance. WARNING Please keep this User Manual for future consultation. If you sell the unit to another user, be sure that they also receive this manual. The following symbols are used to identify important safety information on the product and in this manual: Important:...
  • Page 4  The unit must be installed in a location with adequate ventilation, at least 20cm from adjacent surfaces.  Be sure that no ventilation slots is blocked, otherwise the unit will be overheated.  Before operation, ensure that you are connecting this product to the proper voltage in accordance with the specifications in this manual or on the product’s specification label.
  • Page 5  Do not operate this product if you see damage on the housing, shields, or cables. Have the damaged parts replaced by an authorized technician at once. Installation: The fixture should be fixed on the clamp. always ensure that the unit is firmly fixed to avoid vibration and slipping off...

  • Page 6: Technical Specifications

    2.Technical Specifications OPTICS - Light source: 12*40W LED chip RGBW 4 in 1 - Beam angle: 3.6°-38° - Zoom angle: 4.2°-53° - Color Temperature: 2200K-8000K - Light Luminous Flux: 18460 lux@5 meters EFFECT - Color Mixing System: uniform RGBW color mixing and rainbow effect - Zoom system: Linear electronic zoom - Individual Controlled: support individual controlled, varied in color and effect - effect macro: static and dynamic...
  • Page 7 OTHERS - IP rate: IP20 - Working environment: -10℃ ~ 45℃ - Maximum temperature of fixture body surface: 80℃ - Maximum on-line quantity: 2pcs/110V 4pcs/220V ； - Maximum current: 1.9A/220V 4.3A/110V - Optional material: light hook APPROVALS The product implementation standard: GB 7000.1-2015 GB7000. 217-2008 、...

  • Page 8: Attachment And Size

    LED Chips Sequence 2.1.Attachment And Size Attachment contents-Fig.1 Certificate of conformity Certificate of conformity FAST LOCK FAST LOCK POWER CORD POWER CORD Size-Fig.2...

  • Page 9: Control Panel

    3.Control Panel 1.Display: To show the various menus and the selected function. 2.Button: OK confirmation key DOWN To the left To the right 3. Power input: connect to the power supply. 4. Power output: connect to the lamp power output adapter. 5.

  • Page 10: How To Set The Unit

    4.How To Set The Unit 4.1.Main Function After starting up, press any key to enter the preset menu interface, use the up/down/left/right keys to select: DMX settings, basic information, personality settings, manual control, service options, test lamps, language, screen rotation, press OK Confirm and enter the lower menu. ①...
  • Page 11 ③ Mask address: Select the Mask address function, press the OK key to enter the lower-level menu, press the left/right key to select the address code number segment to be set, and press the up/down key to adjust the number of the number segment. Press OK to confirm the settings and return to the previous menu. ③...
  • Page 12 ② Led hours Select the Led hours function, press the OK key to enter the sub-menu, you can view the device: power-on time (H), lighting time (H). Press OK or Left/Right to return to the previous menu. ② Temperature Select the Temperature function, press the OK key to enter the lower-level menu, and you can view the temperature of the device: driver board 1, light source 1, driver board 2, and light source 2 (unit: °C).
  • Page 13 ② Channel mode Select the Channel mode function, press the OK key to enter the lower menu, you can use the up / down keys to select: standard mode (19CH) (default), extended mode (64CH), press the OK key to confirm the selection and return to the upper menu. ②...
  • Page 14 ③ Backlight Select the Backlight function, press the OK key to enter the lower menu, you can use the up/down keys to select: constant light, automatic off (30S) (default), press the OK key to confirm and return to the upper menu. ③...
  • Page 15 ② Channel control Select the Channel control function, press the OK key to enter the sub-menu, press the up / down key to select each channel of the current channel mode, press the left / right key to manually adjust the DMX value of each channel from 0 to 255, press the OK key Return to the previous menu, and at the same time, the lamp is reset to the state just turned on.
  • Page 16 ② Factory Select the Factory function, press the OK key to enter the submenu, you can use the up / down keys to select: factory default, time clear, developer, software upgrade, exit, press the OK key to enter the submenu. Note that the functions under this menu require a password to proceed to the next step. ①...
  • Page 17 Main menu I menu II menu III menu Ⅳ menu Address:001-512 DMX Priority DMX/ARTNET → ARTNET Priority IP Address → xxx.xxx.xxx.xxx DMX Address → Mask Address → xxx.xxx.xxx.xxx ArtNet Set → Net Address → 1-128 Sub Net Address → 0-15 Universe Address →...
  • Page 18 Main menu I menu II menu III menu Ⅳ menu Linear(Default) Square Dimmer Curve → I-Square SCurve LED invert → English Language → Chinese Open Personal BackLight → Auto close(30s) Display → Normal Reversal → Rota.180 Backlight blink → Return(ESC) 1000 Hz 3600 Hz Led Preq Set...
  • Page 19 Main menu I menu II menu III menu Ⅳ menu Clean error → (code：2222) Tilt 000-255 Zoom1 000-255 Zoom2 000-255 Red1 000-255 Green1 000-255 Blue1 000-255 White1 000-255 Red2 000-255 Green2 000-255 Blue2 000-255 White2 000-255 Red3 000-255 Green3 000-255 Blue3 000-255 White3...
  • Page 20 Total Time Time clean → Device Time Led Time DMX Control → Manual OR DMX Manual Control → Load font Factory → LIGHT SKY Developer → LOGO select Custom LOGO No LOGO → LOGO upgrade → Return(ESC) Firmware update Return(ESC) Return(ESC) Test T →...

  • Page 21: Connection And Control

    5.Connection and control 5.1.Power supply connection POWER POWER END The N terminal The ground wire is is connected with connected to the the blue line. yellow-green wire The L terminal is connected with the brown line. - The bus connecting the power supply must be installed by a qualified professional technician. - After completing all the above operations and ensuring that it is installed, you can power on the lamp to operate.

  • Page 22: Dmx 512 Connection

    5.2.DMX 512 Connection DMX512 in SIGNAL END DMX-input DMX - output - Shield 1 - Shield - Signal (-) 2 - Signal (-) - Signal (+) - Signal (+) - Not connected - Not connected - Not connected - Not connected 1.

  • Page 23: Channel Setting

    5.3 . Channel Setting Enter the MENU menu, select the Personal Settings function, select the channel mode, press the OK button to confirm, you can use the up and down keys to select: 19channels (default), 64 channels, Press the OK key to enter the selection confirmation and return to the previous menu. 5.4 .

  • Page 24: Dmx 512 Configuration

    5.5.DMX 512 Configuration 64 Channel 19 Channel Function Note Dimmer 0-255 Light output linearly increase from off to maximum brightness Dimmer Fine 0-255 Fine Dimmer positioning Strobe 0 - 9 Close 10 - 194 Strobe from slow to fast 195 - 199 Open 200 - 249 Random strobe from slow to fast...
  • Page 25 64 Channel 19 Channel Function Note BLUE 7 0-255 BLUE7 colour linearly increase from no-light to maximum intensity White 7 0-255 White7 colour linearly increase from no-light to maximum intensity RED 8 0-255 Red8 colour linearly increase from no-light to maximum intensity GREEN 8 0-255 GREEN8 colour linearly increase from no-light to maximum intensity...
  • Page 26 64 Channel 19 Channel Function Note 112 - 119 Scenes 14 120 - 127 Scenes 15 128 - 135 Scenes 16 136 - 143 Scenes 17 144 - 151 Scenes 18 152 - 159 Scenes 19 160 - 167 Scenes 20 Scenes 21 168 - 175 176 - 183...

  • Page 27: Electrical Connection Diagram

    6.Electrical Connection Diagram -26-...

  • Page 28: Troubleshooting

    The position of each fan of the fixture: 7.Troubleshooting Following are a few common problems that may occur during operation. Here are some suggestions for troubleshooting: A. The unit does not work, no light and the fan does not work - Check the connected power.

  • Page 29: Fixture Cleaning

    8.Fixture Cleaning It is absolutely essential that the fixture is kept clean to ensure the maximum light-output and allow the fixture to function reliably throughout its life. The fixture must be cleaned regularly to avoid dust, dirt and smoke-fluid residues building up on or within the fixture. The cleaning frequency depends on the application environment.
