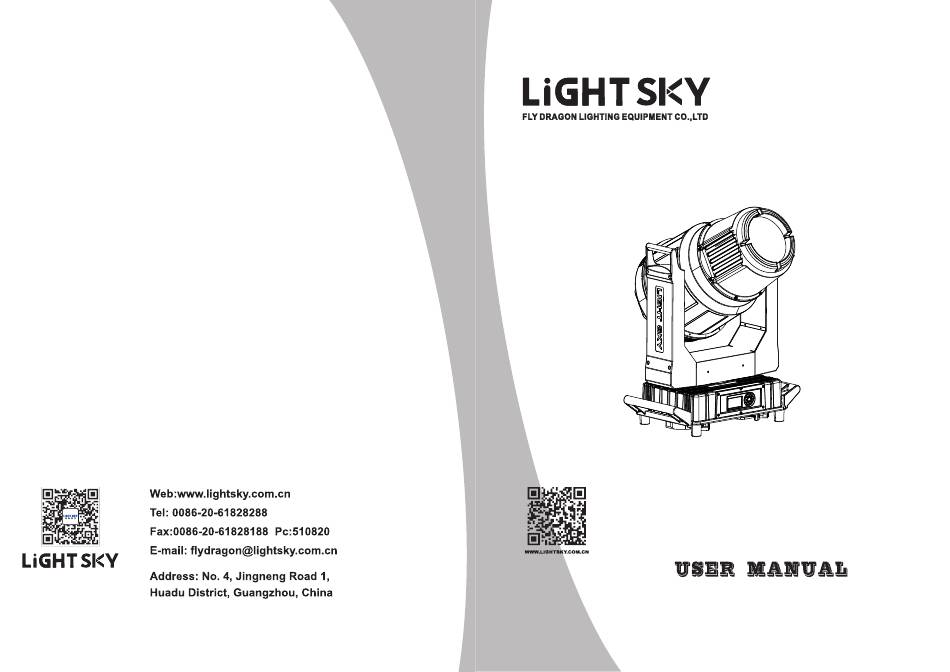

- Page 1 SHARK 400BSW Please read these user manual carefully before use!
-
Page 2: Table Of Contents
Safety information ....................2 Technical information ....................5 ..................9 Attachment and body size ..................10 Installation and connecting Control panel ......................14 Menu setting ........................15 7 Channel function........................18 8 Circuit connecting diagram ....................24 9 Cleaning and maintenances .....................25 ....................25 10. Troubleshooting .............27 11. Duty exonerative and copyright protectio Congratulations on choosing our company product! We thank you for your custom. -
Page 3: Safety Information
SAFETY INFORMATION Please read the instruction carefully which includes important information about the installation, usage and maintenance. WARNING Please keep this User Manual for future consultation. If you sell the unit to another user, be sure that they also receive this manual. The following symbols are used to identify important safety information on the product and in this manual: Important:... - Page 4 The unit must be installed in a location with adequate ventilation, at least 20cm from adjacent surfaces. Be sure that no ventilation slots is blocked, otherwise the unit will be overheated. Before operation, ensure that you are connecting this product to the proper voltage in accordance with the specifications in this manual or on the product’s specification label.
- Page 5 Disconnect this product from its power source before servicing. Do use the original packaging if the device is to be transported. Avoid direct eye exposure to the light source while the product is on. Do not operate this product if you see damage on the housing, shields, or cables. Have the damaged parts replaced by an authorized technician at once.
-
Page 6: Technical Information
TECHNICAL INFORMATION OPTICS - Light source: NSL400S USHIO - Optical angle: Beam mode 2 ° -21 °, Spot mode 3 ° -42 ° - Optical lens: coated with high anti reflective film, φ160mm - Color temperature: 6900K - Color rendering index: Ra≥74 - Illuminance: 236000 lux@10 rice - Expected service life of light source: 1500H (data provided by the light source supplier) COLOUR... - Page 7 X/Y AXIS MOTION ANGLE - X-axis: 540 ° 8-bit/16bit precision scanning - Y-axis: 250 ° 8-bit/16 bit precision scanning - Reset function with automatic error correction - Fixed lock: Y-axis lock POWER SUPPLY AND POWER - Input voltage: AC 100-240V 50/60Hz - Maximum power: 630W - Power factor: 0.987 - Maximum current of lighting fixtures: 2.9A/220V, 6.3A/100V...
- Page 8 Distance, spot diameter and illumination diagram（Beam model） Distance(m) 2° 21° 5700 3120 2°Lux 58000 236000 22700 12500 8500 4480 Diameter(m) 0.36 0.74 1.13 1.48 1.85 2.22 2.59 2.96 21°Lux 3100 Diameter(m) 5.95 8.95 11.90 14.95 18.0 21.05 24.05 Distance, spot diameter and illumination diagram（Spot model） Distance(m) 42°...
- Page 9 Wh it er Rotating gobo wheel Static gobo wheel White Color wheel CMY color mixing system...
-
Page 10: Attachment And Body Size
ATTACHMENT AND BODY SIZE... -
Page 11: Installation And Connecting
INSTALLATION AND CONNECTING Safety rope Installing the projector- Fig. 3 The projector can be installed on the floor resting on special rubber feet, on a truss or on the ceiling or wall. WARNING:with the exception of when the projector is positioned on the floor, the safety rope must be fitted. This must be securely fixed to the support structure of the projector and then connected to the base handle. - Page 12 power in power end The ground wire is connected to the yellow-green wire The N terminal is connected with the blue line. The L terminal is connected with the brown line. Watertight seal ring Watertight seal ring The stage lighting delivers a three-core waterproof plug. ●...
- Page 13 DMX512 in signal end DMX - output DMX-input 1 - Shield - Shield 2 - Signal (-) - Signal (-) - Signal (+) - Signal (+) - Not connected - Not connected - Not connected - Not connected -12-...
- Page 14 -13-...
-
Page 15: Control Panel
CONTROL PANEL D isp l ay ENTER Up arrowhead : page up Down arrowhead : page down RIGHT LEFT Left arrowhead : reduce Right arrowhead : increase Enter : OK function Exit : in the choice screen DOWN ● Press the switch.The projector starts resetting the effects. At the same time,the following information scrolls on the display （please refer to the actual material) DMX:... -
Page 16: Menu Setting
Ⅰ m e n u Ⅱ menu Ⅲ menu Main menu DMX Address Address → :001-512 Power :****(h) Totel Time → Lamp ON :****(h) Total :****(h) Lamp Hours → Lamp Open :****(h) E-ballast:000.0 Temperature → Out Temp In Temp :000.0 RDM UID →... - Page 17 Ⅰ menu Ⅱ menu Ⅲ menu Main menu Auto lamp on → Pan invert → → P/T invert Tilt invert → Return(ESC) English Personal Language → → Chinese Open Back Light → Auto close(15s) Display → Normal Reversal → Rota.180 Backlight blink →...
- Page 18 Ⅰ menu Ⅱ menu Ⅲ menu Main menu Effects reset Return(ESC) Test P/T → STEP *** Test effect → STEP *** Test → Test all → STEP *** Return(ESC) Return(ESC) Error list → Keep List Clean error → Empty List 000-255 Tilt 000-255...
-
Page 19: Channel Function
CHANNEL FUNCTION(V1.0) Percentage Function Channel 0-255 0-100 0-255 0-100 Pan Fine 0-255 0-100 Tilt 0-255 0-100 Tilt fine Function Reserved (0=default) 10-14 Reserved 15-19 Reserved 20-24 Reserved 25-29 Reserved 30-34 Reserved 35-39 Reserved 40-44 Reserved 45-49 Reserved 50-54 Reserved 55-59 Reserved 60-64 Reserved... - Page 20 Percentage Function Channel 144 - 159 Closing pulse in sequences from fast to slow 160 - 191 Shutter open 192 - 223 Random strobe-effect from slow to fast 224 - 255 Shutter open, Full lamp power Cyan 0 - 255 Cyan from min.
- Page 21 Percentage Function Channel Gobo1 8-11 Gobo2 12-15 Gobo3 16-19 Gobo4 20-23 Gobo5 24-27 Gobo6 28-31 Gobo7 32-35 Gobo8 36-39 Gobo9 40-43 Gobo10 44-47 Gobo11 Shaking gobos from slow to fast 48-60 Gobo1 Shake Slow-Fast Speed 61-73 Gobo2 Shake Slow-Fast Speed 74-86 Gobo3 Shake Slow-Fast Speed 87-99...
- Page 22 Percentage Function Channel Auto random gobo selection from fast to slow 250-255 Rot. gobo indexing and rotation 0 - 127 Gobo indexing 128 - 187 Forwards gobo rotation from fast to slow 188-195 No rotation 196 - 255 Backwards gobo rotation from slow to fast Prism wheel 1 This wheel is blocked If Rotating gobo wheel >0 DMX Open position/hole (0=default)
- Page 23 Percentage Function Channel 128-188 Forwards prism rotation from fast to slow 189-194 No rotation (128=default) 195-255 Backwards prism rotation from slow to fast Pattern sellection Open position/hole (0=default) Index - set indexing on channel 20 4-14 Prism macro Index 1 15-25 Prism macro Index 2 26-36...
- Page 24 Percentage Function Channel Focus2 AutoFocus on channel 27 0-255 AutoFocus Autofocus (priority & distance selection) Select desired distance and effect on which you need to focus and use "Focus2" channel (26) to focus the image. 0-15 Autofocus Off 16-55 10 metres 56-95 15 metres 96-135...
-
Page 25: Circuit Connecting Diagram
-24-... -
Page 26: Cleaning And Maintenances
CLEANING AND MAINTENANCES ●In order to ensure the projector could work normally.It should be kept clean always .It is recommended that the fans and ventilation in let should be cleaned every 15 days.The lens and dichroic colour filters should also be reg -ularly cleaned to maintain an optimum light output.Do not use any type of solvent on dichroic colour filters.It will damage the projector. - Page 27 ■The light shadow is fogging: ◎Please check the data on the DMX 512 controller is suitable for the electric focus. ◎Please check the machenical parts is jamging.After cleaning,please add some temperature -durable juice. ■The light works interruptly: ◎Please check if the fan works normally or mote clogging. ◎Please check whether the abstract heat have the mote clogging.
-
Page 28: Duty Exonerative And Copyright Protectio
DUTY EXONERATIVE AND COPYRIGHT PROTECTION ◇The lamp belongs to consumption products that is not guarantee to keep it in good repair. ◇Any products broken that didn't according to the instruction is not guarantee to keep it in good repair. ◇The commentary for all the instruction belongs to the supplier in final. ◇No authorize can't copy.
