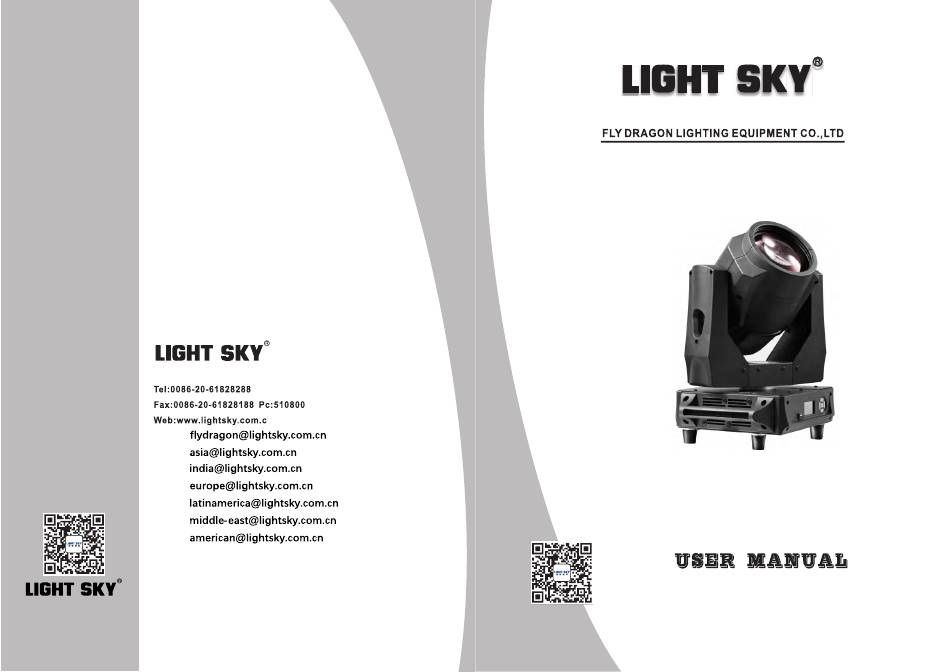

- Page 1 E-mail: E180B Address: No. 43, Yunfeng Road, Xiuquan Street, Huadu District, Guangzhou, China Please read these user manual carefully before use!
-
Page 2: Table Of Contents
Contents 1. Safety information......................2 2. Technical information....................4 Attachment and body size..................6 4. Installation and connecting..................7 5. Control panel......................9 6. Menu setting.......................10 7. Channel function......................12 8. Circuit connecting diagram..................21 9. Cleaning and maintenances..................22 10.Troubeshooting......................23 11.Duty exonerative and copyright protection............24 Congratulations on choosing our company product! We thank you for your custom. ◆Please note that this product, as all the others in the rich my company range, has been designed and made with total quality to ensure excellent performance and best meet your expectations and requirements. -
Page 3: Safety Information
■This lighting fixture is for professional use only - it is not for household use. Make sure all parts for fixing the projector are in a good state of repair. Make sure the point of anchorage is stable before positioning the projector. The safety chain must be prgperly hooked onto the fitting and secured to the framework. - Page 4 80℃ The maximun temperature that can be reached on the external surface of the fitting, in a thermally steady state,is 80℃。 Avoid contact bypersons and materials. Allow the fixture to cool for at least 15 minutes before handling. Light The light source in this xture shall be replaced by the manufacturer or its service agent or similar qualication.
-
Page 5: Technical Information
TECHNICAL INFORMATION ： ●Wash effect ● Power supplies available - Adjustable wash effect angle AC100-240V∽，50/60Hz ● IP set ： ● Power - Automatic chang battery,IP could be set without 180W，PF 0.988 electricity. ●Light source ● Brand：Luminus ● Software upgrade - Lamp power：LED-90W - Insert USB upgrade software. - Page 6 1 1 1 1 1 1 Color wheel Static gobo wheel distance,spot diameter and illumination diagram Standard 3°) 91700(8522) 21700(2017) 9680(900) 5840(543) 2430(226) 1400(130) 900(84) Distance m(ft in) 5(12'5'') (32'10'') (49'2'') (65'7'') (98'5'') (131'2'') (164') 3° diameter m(ft in) 0.23(9'') 0.48(1'7'') 0.7(2'4'') 0.94(3'1'')
-
Page 7: Attachment And Body Size
power cord 28 0 33 5 2 3 5 16 6 45 6 3 70 3 7 9... -
Page 8: Installation And Connecting
Safety rope Safety rope Compact,standard clamp system equipped & easy installation The fixture can be installed on the floor resting on special rubber feet, on a truss or on the ceiling or wall. WARNING:with the exception of when the fixture is positioned on the floor, the safety rope must be fitted. This must be securely fixed to the support structure of the fixture and then connected to the fixing point at the centre of the base. - Page 9 power in power end The N terminal is connected with the blue line. Ground The L terminal is connected with the brown line. The stage lighting power supply can not be more than 3pcs pre line, ● different types of lamps are connected as follows: connection to the eiectricty mains must be carried out by a qualified electrical ●...
-
Page 10: Control Panel
s igna l end DMX512 in Up arrowhead:page up D is pl ay Down arrowhead:page down Left arrowhead:reduce Right arrowhead:increase Enter:OK function Exit:in the choice screen DM X: Personal Manual control Information 00 1 DMX Address Lamp Language Service Reversal... -
Page 11: Menu Setting
Ⅲ menu Main menu Ⅰ menu Ⅱ menu Ⅲ menu Note DMX Address → Address :001-512 Totel time Power :****(h) LED On:****(h) LED hours Total :****(h) → LED On :****(h) Temperature → Board :000.0 RDM UID → Undistributed Fan :00.0V Fan speed/Voltag →... - Page 12 PrismRota. 000-255 Frost 000-255 Service → Return(ESC) Defualt Power on time Time clean Light on time total time Upgrade Word stock LIGHT SKY LOGO choose Custom LOGO Factory → No LOGO Developer Upgrade LOGO Fan control Firmware update Return(ESC) return...
-
Page 13: Channel Function
CHANNEL FUNCTION(V1.0) 16CH Channel Percent Note Functions Colour 0-1.56 White 1.96-3.14 White+Red 9-12 3.53-4.71 Red 13-17 5.10-6.67 Red+Orange 18-21 7.06-8.24 Orange 22-25 8.63-9.80 Orange+Aquamarine 26-29 10.2-11.4 Aquamarine 30-34 11.8-13.3 Aquamarine+Green 35-38 13.7-14.9 Green 39-42 15.3-16.5 Green+Light Green 43-46 16.9-18.0 Light Green 47-51 18.4-20.0 Light Green+Lavender 52-55... - Page 14 Channel Percent Functions Note 36-39 14.1-15.3 Gobo9 40-43 15.7-16.9 Gobo10 44-47 17.3-18.4 Gobo11 48-51 18.8-20.0 Gobo12 52-55 20.4-21.6 Gobo13 56-59 22.0-23.1 Gobo14 60-73 23.5-28.6 Gobo1 Shake Slow-Fast Speed 74-87 29.0-34.1 Gobo2 Shake Slow-Fast Speed 88-101 31.4-39.6 Gobo3 Shake Slow-Fast Speed 102-115 40.0-45.1 Gobo4 Shake Slow-Fast Speed 116-129...
- Page 15 Channel Percent Functions Note 0-255 0-100 0-255 0-100 Pan Fine 0-255 0-100 TILT 0-255 0-100 TILT Fine 0-255 0-100 Unused Range Reset 0-25 Unused Range 26-76 Effects Reset 77-127 PAN/TITL Reset 128-255 Complete Reset...
- Page 16 CHANNEL FUNCTION(V1.0) 16CH PLUS Channel Percent Functions Note Colour 0-1.56 White 1.96-3.14 White+Red 9-12 3.53-4.71 Red 13-17 5.10-6.67 Red+Orange 18-21 7.06-8.24 Orange 22-25 8.63-9.80 Orange+Aquamarine 26-29 10.2-11.4 Aquamarine 30-34 11.8-13.3 Aquamarine+Green 35-38 13.7-14.9 Green 39-42 15.3-16.5 Green+Light Green 43-46 16.9-18.0 Light Green 47-51 18.4-20.0 Light Green+Lavender 52-55...
- Page 17 Channel Percent Functions Note 16-19 6.3-7.5 Gobo4 20-23 7.8-9.0 Gobo5 24-27 9.4-10.6 Gobo6 28-31 11.0-12.2 Gobo7 32-35 12.5-13.7 Gobo8 36-39 14.1-15.3 Gobo9 40-43 15.7-16.9 Gobo10 44-47 17.3-18.4 Gobo11 48-51 18.8-20.0 Gobo12 52-55 20.4-21.6 Gobo13 56-59 22.0-23.1 Gobo14 60-69 23.5-27.1 Gobo1 Shake Slow-Fast Speed 70-79 27.5-31 Gobo2 Shake Slow-Fast Speed...
- Page 18 Channel Percent Functions Note Fast → Slow，prism 8 Freedom to switch 16-55 6.3-21.6 Fast → Slow，prism 16 Freedom to switch 56-95 22.0-37.3 Fast → Slow，8 prism +16 prism can be switched freely at the same 96-135 37.6-52.9 time Fast → Slow，8 prism selection +16 prism free switching 136-175 53.3-68.6 Fast →...
- Page 19 CHANNEL FUNCTION(V1.0) 14CH Channel Percent Functions Note Colour 0-1.56 White 1.96-3.14 White+Red 9-12 3.53-4.71 Red 13-17 5.10-6.67 Red+Orange 18-21 7.06-8.24 Orange 22-25 8.63-9.80 Orange+Aquamarine 26-29 10.2-11.4 Aquamarine 30-34 11.8-13.3 Aquamarine+Green 35-38 13.7-14.9 Green 39-42 15.3-16.5 Green+Light Green 43-46 16.9-18.0 Light Green 47-51 18.4-20.0 Light Green+Lavender 52-55...
- Page 20 Channel Percent Functions Note 16-19 6.3-7.5 Gobo4 20-23 7.8-9.0 Gobo5 24-27 9.4-10.6 Gobo6 28-31 11.0-12.2 Gobo7 32-35 12.5-13.7 Gobo8 36-39 14.1-15.3 Gobo9 40-43 15.7-16.9 Gobo10 44-47 17.3-18.4 Gobo11 48-51 18.8-20.0 Gobo12 52-55 20.4-21.6 Gobo13 56-59 22.0-23.1 Gobo14 60-73 23.5-28.6 Gobo1 Shake Slow-Fast Speed 74-87 29.0-34.1 Gobo2 Shake Slow-Fast Speed 88-101...
- Page 21 Percent Functions Note Channel Fast → Slow 8 prism selection +16 prism free switching 136-175 53.3-68.6 Fast → Slo 16 prism selection +8 prism free switching 176-215 69.0-84.3 Fast → Slow Prism 8 and prism 16 interlock switch 216-255 84.7-100 0-255 0-100 Frost...
-
Page 23: Cleaning And Maintenances
CLEANING AND MAINTENANCES ■1.In order to ensure the projector could work normally. It should be kept clean always . The lens should also be regularly cleaned to maintain an optimum light output. Do not use any type of solvent on lens. It will damage the projector. ■2.Suggestion: The continue usage of the light don't exceed 4 hours. -
Page 24: Troubeshooting
TROUBESHOOTING It is recommended some solution for some normal trouble shooting. Any inextricability problems should always be handling by the professional person. Disconnect the power supply before maintenance the light. ■ LED off ： 1.Please check if install the suitable voltage 2.Please check whether the led will reach the end of their life can explode;...
