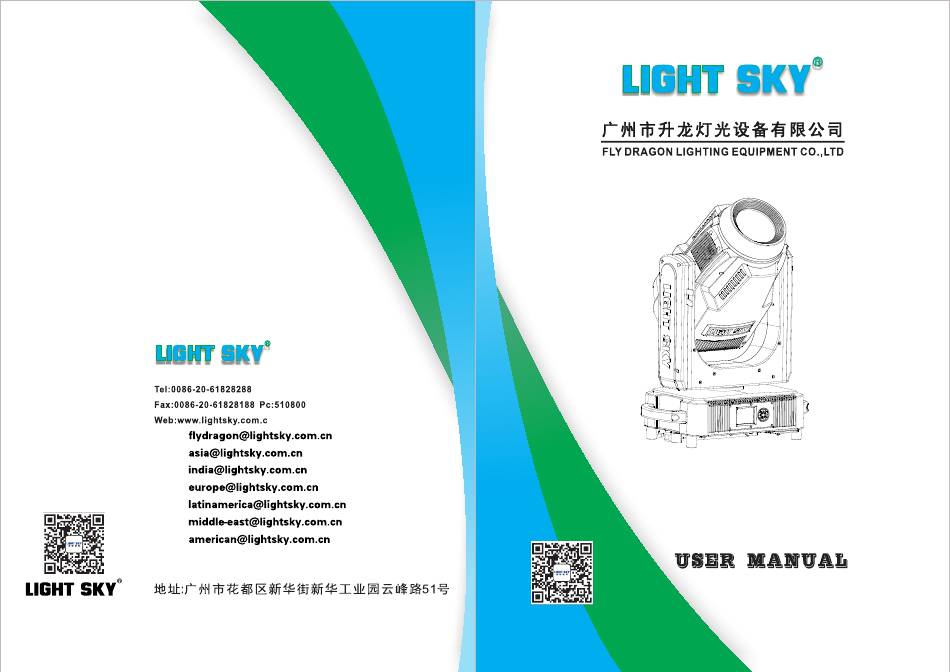

- Page 1 E-mail: E550P 使用说明书 Add:No.51 Yunfeng Rd,Xinhua Industrial Zone,Xinhua Street, Huadu District,Guangzhou,China. Please read these user manual carefully before use! 使用前请仔细阅读本产品使用说明书!
-
Page 2: Table Of Contents
Contents 1. Safety information/安 全 信 息......................2 2. Technical information/技 术 信 息....................4 /附件与包装尺寸 3. Attachment and body size ..................8 /安 装 与 连 接 4. Installation and connecting ..................9 /控 制 面 板 5. Control panel ......................12 6. Menu setting /菜... -
Page 3: Safety Information/安 全 信 息
/安 全 信息 ■This lighting fixture is for professional use only - it is not for household use. 此灯具仅供专业人士使用-不适合家居使用 Make sure all parts for fixing the projector are in a good state of repair. Make sure the point of anchorage is stable before positioning the projector. The safety chain must be prgperly hooked onto the fitting and secured to the framework. - Page 4 80℃ The maximun temperature that can be reached on the external surface of the fitting, in a thermally steady state,is 80℃。 Avoid contact bypersons and materials. Allow the fixture to cool for at least 15 minutes before handling. 在热稳定的状态下，灯具外表面的温度最高点可达80℃。 避免直接接触灯体热表面。 让灯具冷却至少15分钟后再处理灯具（问题）...
-
Page 5: Technical Information/技 术 信 息
/技术信息 ●Focus and Lens 调焦与镜头 ● 电压选配范围： Power supplies available - φ127High precision optical lens, linear adjustment AC100-240V∽，50/60Hz - φ127高精密多组胶合光学镜头，线性电动调焦 190-240V/4.5A; 100-125V/8.5A ● X/Y Travel(X/Y行程)： ● Rated power 额定功率： Pan movement 540°，Tilt movement 270° 850W PF 0.980 ● X/Y Resolution(X/Y微调)：2.11°/1.05° ●... - Page 6 （ ） （ ） 活 动 图 案 盘 固 定 图案 盘 Rotating gobo wheel Static gobo wheel （ 颜色 盘 ） Color wheel ） CMY color mixing system（CMY K混色系统...
- Page 7 16 double Prism 4 Prism Framing Shutters System Blade LF 1 Blade UP 2 Blade DW 1 Blade LF 2 Blade RG 1 Blade RG 2 Blade DW 1 Blade UP 2 Blade LF 2 Blade UP 1 Blade LF 1 Blade DW 2 90°...
- Page 8 射 距 、光斑 直 径与照 度 关 系 图 distance, spot diameter and illumination diagram ( ° Standard 6 - 50°) 50 highlights 1970(183) 512(48) 206(19) 132(12) 58(5) 37(3) 23(2) 6 highlights 60500(5623) 15000(1394) 6520(606) 3750(349) 2650(153) 1918(178) 580(54) Distance m 0.55(1'10'') 2.10(6'11'') 3.23(10'7'')
-
Page 9: Attachment And Body Size /附件与包装尺寸
/附件与包 装尺寸 power cord 141.4 281.23 207.28 397.03 323.22... -
Page 10: Installation And Connecting /安 装 与 连 接
/安装与连接 Safety rope Compact,standard clamp system equipped & easy installation 灯具底座配置有一体化可折叠灯钩，安装更方便，使用更安全 The fixture can be installed on the floor resting on special rubber feet, on a truss or on the ceiling or wall. WARNING:with the exception of when the fixture is positioned on the floor, the safety rope must be fitted. This must be securely fixed to the support structure of the fixture and then connected to the fixing point at the centre of the base. - Page 11 power in power end Ground 地线 The N terminal is connected with the blue line. N端连接蓝色线 The L terminal is connected with the brown line. L端连接棕色线 Watertight seal ring 防水密封圈 Watertight seal ring 防水密封圈 The fixture delivers a three-core waterproof plug. ●...
- Page 12 DMX512 in signal end DMX-input DMX - output 1 - Shield - Shield 2 - Signal (-) - Signal (-) - Signal (+) - Signal (+) - Not connected - Not connected - Not connected - Not connected...
-
Page 13: Control Panel /控 制 面 板
向上箭头 ：向上页面或增加 向下箭头 ：向下页面或减少 向左箭头 ：向左、减少或退出 Display 向右箭头 ：向右、增加或退出 确认键:确认OK 退出:在选择屏幕中 ENTER DMX 设 置 （* **—* * *） Display 地址码 通道模式 通道模式：标准（39CH） 光源温度：**° 输入模式 底箱温度：**° 状态 DMX 设置 设备信息 手动 个性设置 测试设备 服务选项 上 下 退出 中英文切换 Display panel adopts 2.8 inch resistive color touch screen with good pressure sensitivity 显示面板采用2.8英寸电阻式彩色触摸屏，按压灵敏度好... -
Page 14: Menu Setting /菜 单 设 置
All time/总时间 LED TEMP/光源温度 Temperatures → /设备温度 Base TEMP/底箱温度 UID:0x3888XXXXXX RDM info → Manufactory Label：LIGHT SKY /RDM信息 Device Label：E550P 1.Pan / 1.水平 2.Pan fine / 2.水平微调 3.Tilt / 3.垂直 4.Tilt Fine / 4.垂直微调 5.P/T speed / 5.速度 6.Functions / 6.功能... - Page 15 主菜单 一级菜单 二级菜单 三级菜单 四级菜单 54.Dimmer fine / 54.亮度微调 Display / 显示板 Pan/Tilt / XY板 Gobo module / 图案模块 Version info → Framing module / 切割模块 VX.XXX /版本信息 Zoom module / 缩放模块 LEDDRV / 光源驱动 FANDRV / 风扇驱动 PT swap / XY 调换 OFF/关...
- Page 16 主菜单 一级菜单 二级菜单 三级菜单 四级菜单 38.Framing Mac.Z. / 38.切割缩放 39.Prism1 / 39.棱镜1 40.Prism1 Rot./ 40.棱镜自转1 41.Prism2 / 41.棱镜2 42.Prism2 Rot. / 42.棱镜自转2 43.Frost1 / 43.雾化1 44.Frost2 / 44.雾化2 45.Iris / 45.光圈 46.Zoom / 46.缩放 47.Zoom fine / 47.缩放微调 48.Focus / 48.调焦 49.Focus fine / 49.调焦微调...
- Page 17 主菜单 一级菜单 二级菜单 三级菜单 四级菜单 Rota .gobo / 旋转图案盘 Gobo .rota / 图案旋转 Zoom / 缩放 Focus / 调焦 Prism 1 / 棱镜 1 Prism 2 / 棱镜 2 Framing / 切割盘 Framing rota / 切割盘旋转 LED fan 1/光源风扇 1 LED fan 2/光源风扇...
- Page 18 主菜单 一级菜单 二级菜单 三级菜单 四级菜单 Reset power on timers / 清除上电时间 Password Reset led timers YES / NO Reset timers / 清除时间 → → / 清除亮灯时间 确定 / 取消 Reset all timers / 清除总时间 Display / 显示 Pan/Tilt / XY Gobo module / 图案模组...
-
Page 19: Channel Function
标准通道 CHANNEL FUNCTION(V1.0) 39CH 通道 百分比 功能 备注 Pan / 水平 0 - 255 Pan fine / 水平微调 0 - 255 Tilt / 垂直 0 - 255 Tilt Fine / 垂直微调 0 - 255 P/T speed / 速度 0 - 255 0 - 10 NO function 11 - 20... - Page 20 通道 百分比 功能 备注 150 - 159 GOBO6 抖动,慢到快 160 - 169 GOBO7 抖动,慢到快 170 - 179 GOBO8 抖动,慢到快 180 - 189 GOBO9 抖动,慢到快 190 - 199 OPEN 200 - 224 顺时针自转，慢到快 225 - 249 逆时针自转，快到慢 250 - 255 随机图案 0 - 9 OPEN 10 - 19...
- Page 21 通道 百分比 功能 备注 0 - 127 0° - 360° 128 - 187 顺时针自转，快到慢 Prism2 Rot. / 棱镜自转2 188 - 195 STOP 196 - 255 逆时针自转，慢到快 0 - 127 最小雾化到最大雾化 128 - 159 慢进快出 从慢到快 Frost1 / 雾化1 160 - 191 快进慢出...
- Page 22 扩展通道 CHANNEL FUNCTION(V1.0) 54CH 通道 百分比 功能 备注 Pan / 水平 0 - 255 Pan fine / 水平微调 0 - 255 Tilt / 垂直 0 - 255 Tilt Fine / 垂直微调 0 - 255 P/T speed / 速度 0 - 255 0 - 10 NO function 11 - 20...
- Page 23 通道 百分比 功能 备注 110 - 119 GOBO2 抖动,慢到快 120 - 129 GOBO3 抖动,慢到快 130 - 139 GOBO4 抖动,慢到快 140 - 149 GOBO5 抖动,慢到快 150 - 159 GOBO6 抖动,慢到快 160 - 169 GOBO7 抖动,慢到快 170 - 179 GOBO8 抖动,慢到快 180 - 189 GOBO9 抖动,慢到快...
- Page 24 通道 百分比 功能 备注 51 - 60 扇形 61 - 70 半圆 71 - 255 平行四边形 Framing Mac. Zoom / 切割缩放 0 - 10 棱镜关闭 Prism1 / 棱镜1 11 - 255 棱镜切入 0 - 127 0° - 360° 128 - 187 顺时针自转，快到慢...
-
Page 26: Cleaning And Maintenances/清洁与保养
CLEANING AND MAINTENANCES/清洁与保养 ■1.In order to ensure the fixture could work normally. It should be kept clean always . The lens should also be regularly cleaned to maintain an optimum light output. Do not use any type of solvent on lens. It will damage the fixture. 确保灯具能够正常稳定的运行，应该保持灯具的清洁，对于镜头也应定期清理，以保证... -
Page 27: Troubeshooting/疑难处理
TROUBESHOOTING/疑难处理 It is recommended some solution for some normal trouble shooting. Any inextricability problems should always be handling by the professional person. Disconnect the power supply before maintenance the fixture. ■ LED off / LED不亮： 1.Please check if install the suitable voltage 检查是否安装了与灯具相匹配的电压；... - Page 28 ■ The light beam dark,not inhomogeneou. 光束显得暗淡不均匀。 ◎ when the light suore is to the usage life,the light suore is not enough,please change a new one for the same description. 光源可能已经达到使用寿命,发光不足,更换同规格的光源. ◎ Please check the reflector parts is dirty.Keep them clear. 检查光学部分是否堆积有灰尘,清洗干净.
- Page 29 ◆The light source belongs to consumption products that is not guarantee to keep it in good repair.
