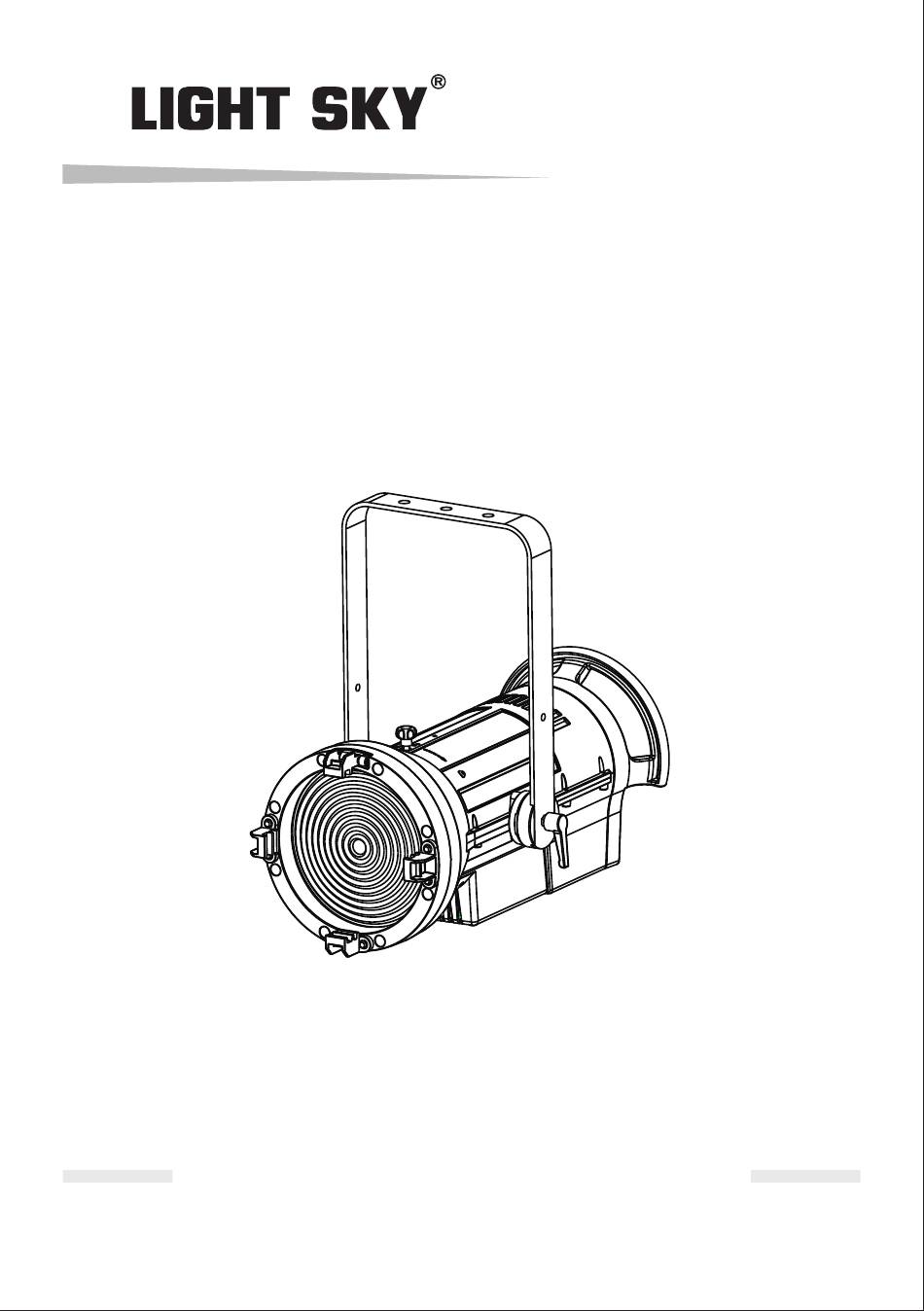

- Page 1 INSTRUCTION MANUAL □ L7-D48(6000K) LED Fresnel □ L7-T48(3000K) Please read these instruction manual carefully before use FLY DRAGON LIGHTING EQUIPMENT CO., LTD...
-
Page 2: Table Of Contents
INDEX 1.Safety information....................2 2.Skill specifications and Performance trait ............3 3.Photometric data......................4 4.Control panel......................5 5.Install fixture......................5 6.Dimensional drawings....................6 7.Component name......................6 8.Mounting and installation..................7 9.Power supply and signal connection..............8 Menu setting......................10 11.Channel function....................12 Circuit connecting diagram ................13 13.Troubeshooting....................14 14.Cleaning and maintenances................15 Duty exonerative and copyright protection .............15 UNPACKING: Thank you for purchasing our company products. -
Page 3: Safety Information
SAFETY INSTRUCTIONS Notice: To guarantee proper and consistent operation, it is important to follow the guidelines in this manual. Our company will not accept responsibility for damages resulting from the misuse of this fixture due to the disregard of the information printed in this manual. -
Page 4: Skill Specifications And Performance Trait
SKILL SPECIFICATIONS AND PERFORMANCE TRAIT ◎Voltage：AC100~240V 50/60Hz ◎Power：210W ◎LED brand：OSRAM ◎LED chip：6W*42PCS ◎LED power：200W ◎LED life：50000H ◎LED colour temperature：3000K(Standard);Selective 6000K ◎total luminous flux:9800LM ◎Luminance Efficiency:48 ◎CRI index : ≥ ◎TLCI index ≥ ◎Strobe:1-30 times/ second ◎Dimmer ： 65536 class dimmer ◎LENS : Glass frenel lens ◎Beam angle：10-60°... -
Page 5: Photometric Data
PHOTOMETRIC DATA 60°highlight Lux (fc) 4080(379) 1570(146) 800(74) 450(42) 250(23) 10°highlight Lux (fc) 8500(790) 3260(303) 1690(157) 830(77) 460(43) 60° 10° Distancem (in) 3(9′10") 5(16′5") 7(23′) 10(32′10") 15 49 ′3") 10° diameter m (in) 0.5(1′7") 0.8(2′7") 1.2(3′11") 1.7(5′7") 2.6(8′6") 60° diameter m (in) 3.5 1 ( 1′6") 5.8(19′) 8(26′3") 11.5(37′8") 17.3(56′9") -
Page 6: Control Panel
CONTROL PANEL Keypad MENU DOWN ENTER DIMMER zoom DIMMER ZOOM POWER POWER OUT POWER IN INSTALL FIXTURE General use position Low clearance position... -
Page 7: Dimensional Drawings
DIMENSIONAL DRAWINGS COMPONENT NAME Yoke knob Yoke looking knob Accessor y retainer Lens tube... -
Page 8: Mounting And Installation
MOUNTING AND INSTALLATION Cautions: For added protection mount the fixtures in areas outside walking paths, seating areas, and away from areas were unauthorized personnel might reach the fixture. Before mounting the fixture to any surface, make sure that the installation area can hold a minimum point load of 10 times the device's weight. -
Page 9: Power Supply And Signal Connection
POWER SUPPLY AND SIGNAL CONNECTION 1. Power supply Use the professional plug to connect the projector and main power supply. Please pay attention to the voltage, frequency the same as the mentioned on the projector. Suggest each light has separately switched of the power supply so that could turn on or turn off each projector desultorily. - Page 10 Connecting to the control signal line (DMX) ◎ Please use the round 3 or 5-pin XLR plugs &sockets offered by menu facture to connect the first projector's output to the second projector' input and connect the second projector's output to the third projector's input.
-
Page 11: Menu Setting
MENU SETTING 1.After the power is switched on, the display screen displays LOGO 2.Button operation ● MENU：back Button ； ● UP：Page up or increase； ● DOWN：Page down or reduce； ● ENTER：OK button 3.Menu operation ENTER MENU DOWN DMX Address Address:001-512 Status No action Action... - Page 12 1.Dimmer 000-255 2.Dimmer fine 000-255 Channel control 3.Strobe 000-255 4.Zoom 000-255 Total:****(h) LED hours LED:****(h) Temperature LED Board: ***c RDM UID 3888:******** Information Fan speed FAN:****RPM 1.Dimmer 2.Dimmer fine DMX live 3.Strobe 4.Zoom DIS Board: V*.** System version Reset System reset Error list Service Defualt...
-
Page 13: Channel Function
CHANNEL FUNCTION CHANNEL DMX VALUE FUNCTION 0-255 0-100 Dimmer Dimmer fine 0-255 0-100 Strobe 0-3.53 NO function 3.92-19.22 Slow closing,fast opening,slow → fast 10-49 19.61-34.9 Fast closing,slow opening,slow → fast 50-89 35.29-46.67 Slow closing,slow open,slow → fast 90-119 Random strobe,slow fast →... -
Page 14: Circuit Connecting Diagram
CIRCUIT CONNECTING DIAGRAM Switched power supply Power adapter AC100-240V 50/60Hz Input Display board LED Drive board... -
Page 15: Troubeshooting
TROUBLE DISPOSE It is recommended some solution for some normal trouble shooting. Any inextricability problems should always be handling by the professional person. Disconnect the power supply before maintenance the light. ●LCD off： 1.Please check if install the suitable voltage 2.Please check whether the led will reach the end of their life can explode;... -
Page 16: Cleaning And Maintenances
CLEANING AND MAINTENANCE ■ 1.In order to ensure the projector could work normally. It should be kept clean always .The lens should also be regularly cleaned to maintain an optimum light output. Do not use any type of solvent on lens. It will damage the projector. - Page 17 Tel:020-61828288 Fax:020-61828188 Web:www.lightsky.com.cn www.lightsky-china.com E-Mail:flydragon@lightsky.com.cn lightsky08@vip.163.com flydragon@lightsky-china.com lightsky01@vip.163.com lightsky-china@vip.163.com flydragon@vip.163.com 13829779791@vip.163.com Add: No.51 Yunfeng Rd , Xinhua Industrial Zone,Huadu District,Guangzhou City,China.
