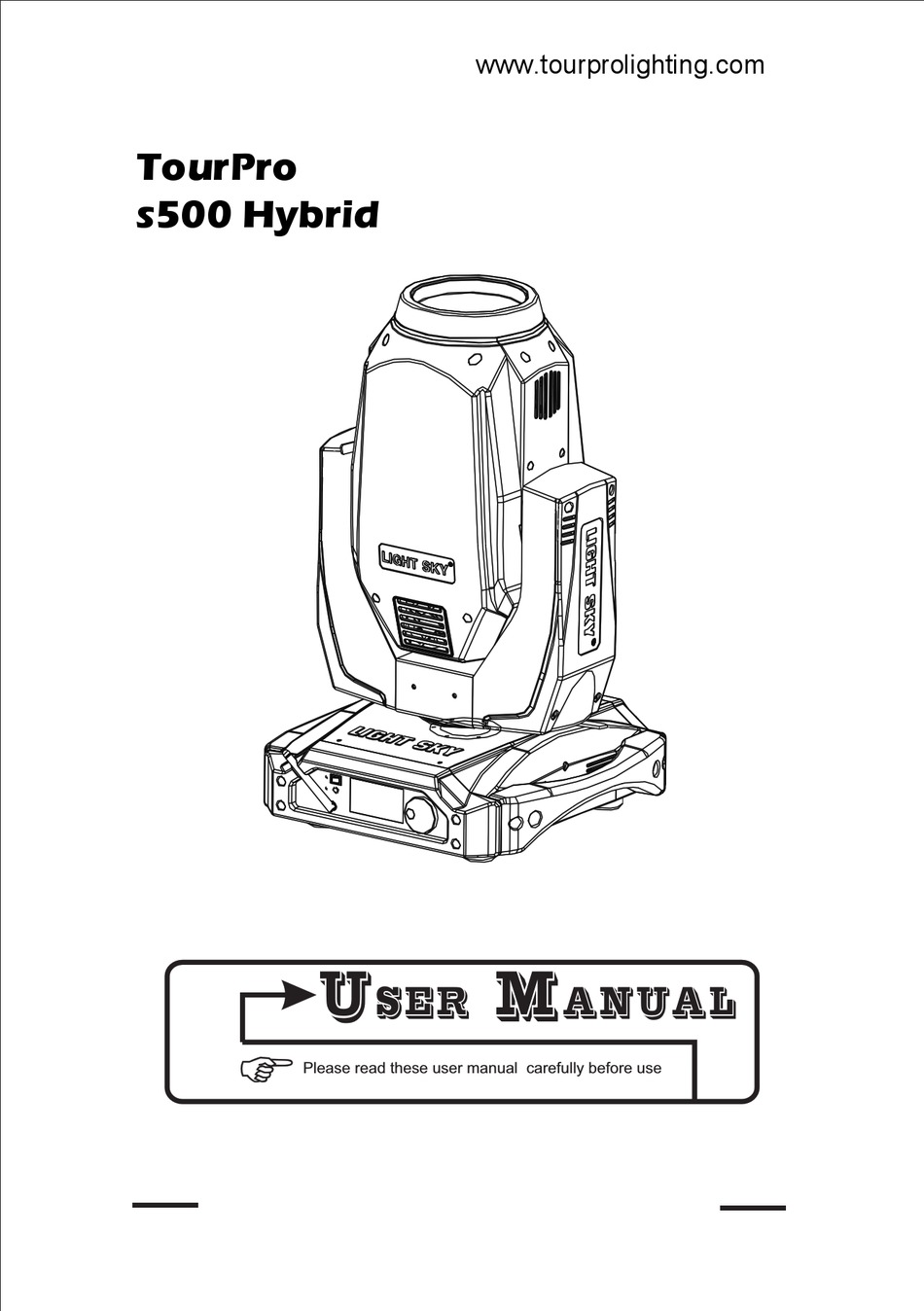

www.tourprolighting.com
TourPro
s500 Hybrid
U
M
SER
ANUAL
Please read these user manual carefully before use

Advertisement

Table of Contents
loading

Related Manuals for Light Sky TourPro s500 Hybrid

Summary of Contents for Light Sky TourPro s500 Hybrid

  • Page 1 www.tourprolighting.com TourPro s500 Hybrid ANUAL Please read these user manual carefully before use...
  • Page 2 www.tourprolighting.com...

  • Page 3: Table Of Contents

    www.tourprolighting.com Contents 1. Safety information....................2 2.Technical information....................3 3.Attachment and body size ..................5 4.Installation and connecting..................6 5. Control panel......................7 6. Menu setting......................8 7.Channel function.....................12 Circuit connecting diagram ..................26 Cleaning and maintenances ..................27 Troubeshooting ....................27 Duty exonerative and copyright protection ............28 12. Company information...................29 Congratulations on choosing our company product! We thank you for your custom.

  • Page 4: Safety Information

    www.tourprolighting.com SAFETY INFORMATION • Installation Make sure all parts for fixing the projector are in a good state of repair. Make sure the point of anchorage is stable before positioning the projector. The safety chain must be properly hooked onto the fitting and secured to the framework, so that, if the primary support system fails,the fitting falls as little as possible.

  • Page 5: Technical Information

    www.tourprolighting.com TECHNICAL INFORMATION ● ● IP set Power supplies available Automatic charging battery,IP could be set AC90-240V/50-60Hz without electricity. ● Power ● Features 495W(220V/50Hz) Remote control lamp’s switch function, ● Lamp display light and lamp’s using time, - Brand:SIRIUS HRI 330W OSRAM automaticallay adjust cooling-fan’s speed, - Power:330W Drop 60W power when strobe lens.
  • Page 6 www.tourprolighting.com Static wheel(1 white + 12 gobo) Rota wheel(1 white + 7gobo) (please refer to the actual material) (please refer to the actual material) White White Gobo size: outside15.9mm/inside10mm Color Wheel:(please refer to the actual material) Dark red Heat insulation Dark blue Nacarat Light blue...

  • Page 7: Attachment And Body Size

    www.tourprolighting.com ATTACHMENT AND BODY SIZE USER MANUAL BRACKET LAMP (fitted into projector) SAFETY CORD WARRANTY CARD DMX CABLE Attachment contents- Fig. 1 Body Size---Fig 2...

  • Page 8: Installation And Connecting

    www.tourprolighting.com INSTALLATION AND CONNECTING Installing the projector- Fig. 3 The projector can be installe d on the floor resting on special rubber feet, on a truss or on the ceiling or wall. WARNING:with the exception of when the projector is positioned on the floor, the safety cable must be fitted. This must be securely fixed to the support structure of the projector and then connected to the fixing point at the centre of the base.

  • Page 9: Control Panel

    www.tourprolighting.com Connecting to the control signal line (DMX) - Fig. 5 ◎ Please use the round 3 or 5-pin XLR plugs &sockets offered by menu facture to connect the first projector's output to the second projector' input and connect the second projector's output to the third projector's input.

  • Page 10: Menu Setting

    www.tourprolighting.com MENU SETTING(V1.0) SINGLE PRISM Auto lamp on Personal Setup DMX Address Address:001-512 Channel mode Standard(25CH) Simple(17CH) P/T invert Pan invert Extended(30CH) Return(ESC) Tilt invert Lamp hours Information Total:****H Lamp:****H Return(ESC) LAMP:***C Temperature English 英文 Language Display 语言 RDM UID Chinese(中文) 3888：******** Open...
  • Page 11 www.tourprolighting.com LAMP ON/OFF Manual Control Language 文 English 英 语言 中文 Chinese( System reset Error list Service Pan/Tilt reset Calibration Gobo reset ±5.00 C.T.O ±5.00 Gobo Rota Reset Colour reset ±5.00 Shutter ±5.00 Colour Dimmer reset ±5.00 Stat. Gobo Return(ESC) ±5.00 Rota.Gobo Zoom reset...
  • Page 12 www.tourprolighting.com DOUBLE PRISM Auto lamp on Personal Setup DMX Address Address:001-512 Channel Mode Standard(25CH) Simple(17CH) P/T invert Pan invert Extended(30CH) Return(ESC) Tilt invert Information Lamp Hours Total:****H Lamp:****H Return(ESC) LAMP:***C Temperature Language English 英文 Display RDM UID 3888：******** 语言 Chinese(中文) Open BackLight Arm1:****RPM...
  • Page 13 www.tourprolighting.com LAMP ON/OFF Manual Control Language 文 English 英 语言 中文 Chinese( System reset Error list Service Pan/Tilt reset Calibration ±5.00 C.T.O Gobo reset ±5.00 Gobo Rota. ±5.00 Reset Shutter Colour reset ±5.00 Colour Return(ESC) ±5.00 Dimmer reset Stat.Gobo ±5.00 Rota.Gobo Zoom reset ±5.00...

  • Page 14: Channel Function

    www.tourprolighting.com CHANNEL FUNCTION SINGLE PRISM CHANNEL CHANNEL MODE 25CH 17CH 30CH Pan fine Tilt Tilt fine Pan/Tilt speed , Pan/Tilt time Power/Special functions Colour wheel Colour wheel - fine positioning Frost time Color time Static gobo time Prism zoom Zoom time Focus time Static gobo wheel Rotating gobo wheel...
  • Page 15 www.tourprolighting.com DOUBLE PRISM CHANNEL CHANNEL MODE 25CH 17CH 30CH Pan fine Tilt Tilt fine Pan/Tilt speed , Pan/Tilt time Power/Special functions Colour wheel Colour wheel - fine positioning Frost time Color time Static gobo time Prism time Zoom time Focus time Static gobo wheel Rotating gobo wheel Rot.
  • Page 16 www.tourprolighting.com SINGLE PRISM 25CH 17CH 30CH DMX Value Percent Function Pan movement by 540 0-255 0-100 Pan Fine Fine control of pan movement 0-255 0-100 Tilt Tilt movement by 230 0-255 0-100 Tilt Fine Fine control of tilt movement 0-255 0-100 Pan/Tilt speed , Pan/Tilt time Standard mode...
  • Page 17 www.tourprolighting.com 25CH 17CH 30CH DMX Value Percent Function Colour wheel Continual positioning Open/white Dark red Heat insulation Dark red Dark blue Nacarat Nacarat Light blue Dark green Light blue Green CTO2 Dark green Purple Pink Cyan Yellow Green Magenta Purple Magenta Cyan Yellow...
  • Page 18 www.tourprolighting.com 25CH 17CH 30CH DMX Value Percent Function Prism zoom 0-127 0-50 Zoom from min. to max.beam angle 128-100 51-100 Zoom from slow to fast beam angle Zoom time Function is off 1-255 0-100 Time of zoom movement (0.1 sec. --- >25.5 sec.) Focus time Function is off 1-255...
  • Page 19 www.tourprolighting.com 25CH 17CH 30CH DMX Value Percent Function Rotating gobo wheel In the range of 0-59 DMX the gobo selection speed is controlled by the Effect Speed channel. Index - set indexing on channel 12/9/17 Open/Hole (default) Hole (flat field) Gobo1 Gobo2 8-10...
  • Page 20 www.tourprolighting.com 25CH 17CH 30CH DMX Value Percent Function Rot. gobo indexing and rotation Gobo indexing - set position on channel 11/8/16 0-255 0-100 Gobo indexing No rotation 1-127 0-49 Forwards gobo rotation from fast to slow 128-129 49-50 No rotation 130-255 51-100 Backwards gobo rotation from slow to fast...
  • Page 21 www.tourprolighting.com 25CH 17CH 30CH DMX Value Percent Function Zoom 0-255 0-100 Zoom from max. to min.beam angle Zoom - fine 0-255 0-100 Fine zooming Focus 0-255 0-100 Continuous adjustment from far to near Focus - fine 0-255 0-100 Fine focusing Autofocus (priority &...
  • Page 22 www.tourprolighting.com DOUBLE PRISM 25CH 17CH 30CH DMX Value Percent Function Pan movement by 540 0-255 0-100 Pan Fine Fine control of pan movement 0-255 0-100 Tilt Tilt movement by 230 0-255 0-100 Tilt Fine Fine control of tilt movement 0-255 0-100 Pan/Tilt speed , Pan/Tilt time Standard mode...
  • Page 23 www.tourprolighting.com 25CH 17CH 30CH DMX Value Percent Function Colour wheel Continual positioning Open/white Dark red Heat insulation Dark red Dark blue Nacarat Nacarat Light blue Dark green Light blue Green Purple CTO2 Dark green Pink Cyan Yellow Green Magenta Purple Magenta Cyan Yellow...
  • Page 24 www.tourprolighting.com 25CH 17CH 30CH DMX Value Percent Function Prism time Function is off 1-50 0-19 Time of prism movement (0.1 sec. --- > 5 sec.) 51-255 20-100 Time of prism rotation (0.1 sec. --- >25.5 sec.) Zoom time Function is off Time of zoom movement (0.1 sec.
  • Page 25 www.tourprolighting.com 25CH 17CH 30CH DMX Value Percent Function Rotating gobo wheel In the range of 0-59 DMX the gobo selection speed is controlled by the Effect Speed channel. Index - set indexing on channel 12/9/17 Open/Hole (default) Hole (flat field) Gobo1 Gobo2 8-10...
  • Page 26 www.tourprolighting.com 25CH 17CH 30CH DMX Value Percent Function Rot. gobo indexing and rotation Gobo indexing - set position on channel 11/8/16 0-255 0-100 Gobo indexing No rotation 1-127 0-49 Forwards gobo rotation from fast to slow 128-129 49-50 No rotation 130-255 51-100 Backwards gobo rotation from slow to fast...
  • Page 27 www.tourprolighting.com 25CH 17CH 30CH DMX Value Percent Function Focus - fine 0-255 0-100 Fine focusing Autofocus (priority & distance selection) Select desired distance and effect on which you need to focus and use "Focus" channel (20/15/25) to focus the image. Autofocus Off Rotating gobos &...

  • Page 28: Circuit Connecting Diagram

    www.tourprolighting.com Circuit connecting diagram Switched power supply Input 01GT-XY V1.1 140926 + 28V Power output X Y board Display board Power input AC90~240V 350P- XS V1. 0 20141106 50/60Hz 01BS- 7M Head drive board V1.1 20140926 330P- 8M V1. 1 20141215 Side drive board...

  • Page 29: Cleaning And Maintenances

    www.tourprolighting.com CLEANING AND MAINTENANCES ●In order to ensure the projector could work normally.It should be kept clean always .It is recommended that the fans and ventilation in let should be cleaned every 15 days.The lens and dichroic colour filters should also be reg -ularly cleaned to maintain an optimum light output.Do not use any type of solvent on dichroic colour filters.It will damage the projector.

  • Page 30: Duty Exonerative And Copyright Protection

    www.tourprolighting.com ■The light shadow is fogging: ◎Please check the data on the DMX 512 controller is suitable for the electric focus. ◎Please check the machenical parts is jamging.After cleaning,please add some temperature -durable juice. ■The light works interruptly: ◎Please check if the fan works normally or mote clogging. ◎Please check whether the abstract heat have the mote clogging.

  • Page 31: Company Information

    www.tourprolighting.com FLY DRAGON LIGHTING EQUIPMENT CO.,LTD flydragon@lightsky-china.com lightsky-china@vip.163.com 13829779791@vip.163.com Add:No.51Yunfeng Rd,(Pingbu West Rd)Xinhua Industrial Zone, Huadu District,Guangzhou City,China.
