Summary of Contents for Light Sky F400BSW

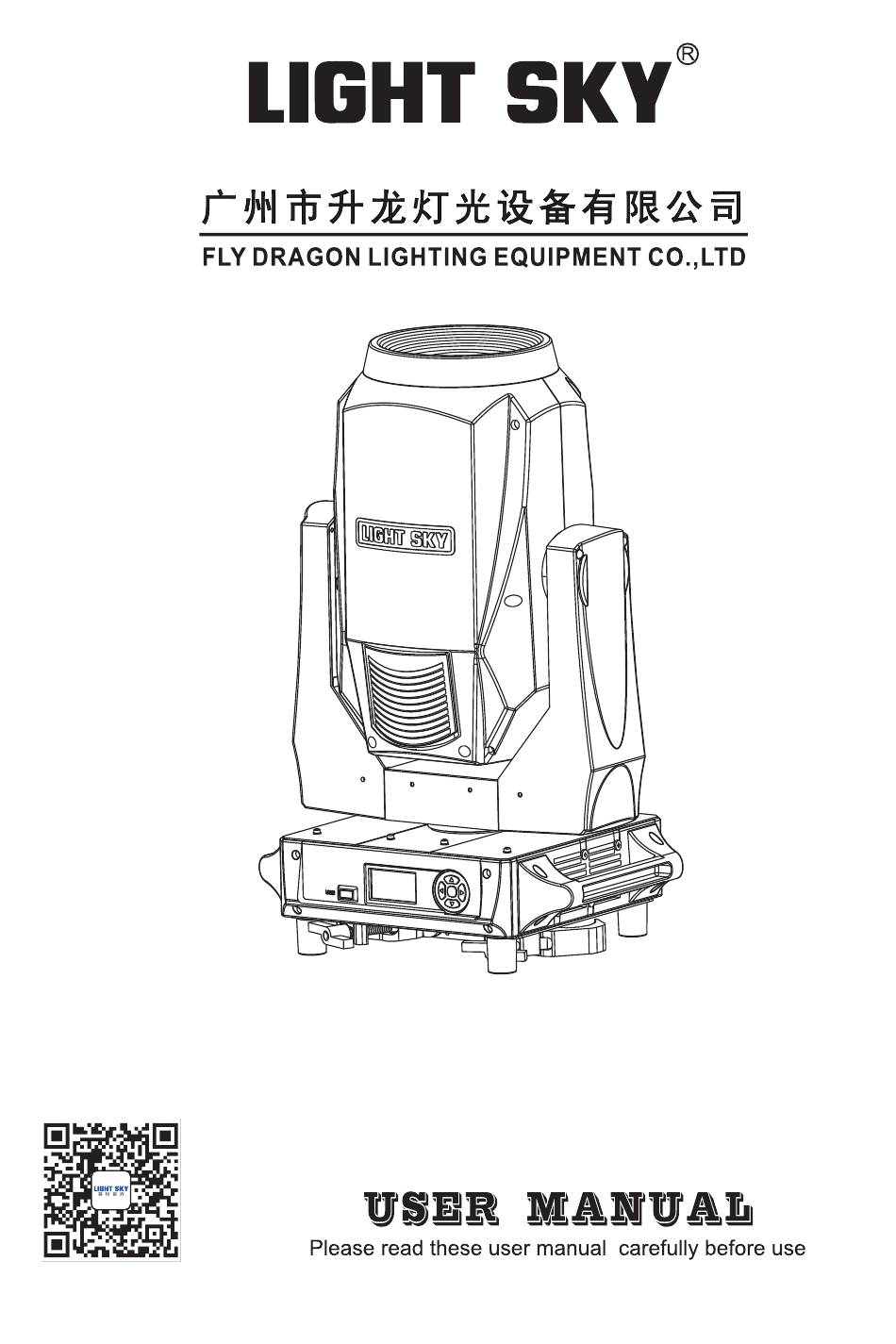

- Page 1 F400BSW 使用说明书...
- Page 2 Contents 1. Safety information........................2 2. Technical information......................4 3. Attachment and body size.....................7 4. Installation and connecting....................8 5. Control panel.........................10 6. Menu setting..........................11 7. Channel function........................14 8. Circuit connecting diagram....................23 9. Cleaning and maintenances....................24 10. Troubeshooting........................24 11. Duty exonerative and copyright protection..............27 Congratulations on choosing our company product! We thank you for your custom.
- Page 3 SAFETY INFORMATION/安全信息 When the luminaire projects an object, the minimum distance of the luminaire to the ammable object is 12 meters. 当灯具投射物体时，灯具出光口到被照射易燃物体的最小距离为12米。 Please do not install the fixture onto combustible surface. 请不要将灯具直接安装在可燃物物质的表面上。 Distance between this fixture and combustible goods needs more than 1 meter. 灯体表面与可燃材料的距离至少为1米。...
- Page 4 The tting mounts a high-pressure lamp that needs an external . Immediately replace the lamp if damaged or deformed by heat. The light source in this xture shall be replaced by the manufacturer or its service agent or similar qualication. Always disconnect from mains before replacing the lamp.
- Page 5 Power supplies available 电压选配范围 ● 地址码设置 IP set ● 100V~240V~ 50/60Hz 5A - Automatic chang battery, IP could be set without Power 功率/功率因数 ● electricity. 495W(220V/50Hz) PF0.98 - 内置长寿命电池，设置地址码时灯具不需上电 Lamp 灯泡 手机APP功能 bile A ● - Brand品牌： USHIO NSL360(31mmWD) - Can be connected through the mobile phone - Lamp power功率：360W WIFI stage lighting,to understang the equipment - Colour temperature色温;6900K...
- Page 6 Static gobo wheel Rotating gobo wheel Dark red Heat insulation 白光 Dark blue 隔热片 深红色 Nacarat 深蓝色 桔红色 Light blue 浅蓝色 深绿色 CTO2 Dark green CTO2 青色 绿色 Cyan Green 正紫色 洋红色 粉红色 黄色 Magenta Purple Yellow Pink Photometric Data: Lux(fc) 20°highlights 12900( 1191)
- Page 7 power cord...
- Page 8 Safety rope Safety rope Installing the projector- Fig. 3 The projector can be installed on the floor resting on special rubber feet, on a truss or on the ceiling or wall. WARNING:with the exception of when the projector is positioned on the floor, the safety rope must be fitted. This must be securely fixed to the support structure of the projector and then connected to the fixing point at the centre of the base.
- Page 9 power in power end The N terminal is connected with the blue line. N端连接蓝色线 Ground 地线 L端连接棕色线 The L terminal is connected with the brown line. The stage lighting power supply can not be more than 2pcs pre line ● 舞台灯具电源串联不能超过2台...
- Page 10 s igna l end DMX512 in Up arrowhead:page up D is pl ay Down arrowhead:page down Left arrowhead:reduce Right arrowhead:increase Enter:OK function Exit:in the choice screen DM X: Information Personal Manual control DMX Address 00 1 /DMX地 址 /基本信息 /个性设置 /手动控制...
- Page 11 Ⅰ menu Ⅱ menu Ⅲ menu Main menu /菜单 /一级菜单 /二级菜单 /三级菜单 Address DMX Address → /地址码:001-512 /DMX地址 Total/上电时间:****(h) Lamp hours → /设备时间 Lamp open/亮灯时间:****(h) PVG_TEM/镇流器:***.* Temperature → /设备温度 Board/测温板:***.* → Undistributed/未分配地址 RDM UID/RDM地址 → MOTOR UID Fan/鼓风机::**.*V Fan1/风机1:**.*V Fan speed/Voltag Fan2/风机2:**.*V →...
- Page 12 Ⅰ menu Ⅱ menu Ⅲ menu Main menu /菜单 /一级菜单 /二级菜单 /三级菜单 Standard(18CH)/标准模式(18CH) Channel mode → /通道模式 Simple(20CH)/简易模式(20CH) OFF/关 Auto lamp on → /自动打开灯泡 ON/开 OFF/关 → Pan invert/水平反向 ON/开 P/T invert → /水平垂直反向 OFF/关 → Tilt invert/垂直反向 ON/开 Personal /个性设置...
- Page 13 Ⅰ menu Ⅱ menu Ⅲ menu Main menu /菜单 /一级菜单 /二级菜单 /三级菜单 System reset/系统复位 → Pan/Tilt reset/水平垂直复位 → Reset/复位 Head motor reset/头部电机复位 Return(ESC)/退出 → Test P/T /测试水平垂直 STEP ***/场景*** → → STEP ***/场景*** Test effect/测试头部效果 Test/测试灯具 → → Test all/整体测试 STEP ***/场景*** Return(ESC)/退出...
- Page 14 Ⅰ menu Ⅲ menu Ⅳ menu Main menu Ⅱ menu /菜单 /一级菜单 /三级菜单 /三级菜单 /二级菜单 Auto Zoom /自动对焦缩放 000-255 → → Zoom Cal. S.Gobo-10M /缩放调节 000-255 /固定盘10M对焦 Focus Cal. /调焦调节 000-255 Auto Zoom /自动对焦缩放 000-255 Zoom Cal. → → S.Gobo-15M /缩放调节...
- Page 15 Ⅰ menu Ⅲ menu Ⅳ menu Main menu Ⅱ menu /菜单 /一级菜单 /三级菜单 /三级菜单 /二级菜单 Auto Zoom /自动对焦缩放 000-255 → → Zoom Cal. R.Gobo-10M /缩放调节 000-255 /活动盘10M对焦 Focus Cal. /调焦调节 000-255 Auto Zoom /自动对焦缩放 000-255 Zoom Cal. → → R.Gobo-15M /缩放调节...
- Page 16 Ⅰ menu Ⅱ menu Ⅲ menu Main menu /菜单 /一级菜单 /二级菜单 /三级菜单 Defualt/工厂默认 上电时间 → Time clean/时间清除 → Factory/工厂设置 Service Developer/开发人员 /服务选项 → Firmware update/软件升级 Standard mode/标准模式 → Fan mode/风机模式 3000-4000M/海拔3000-4000M 4000-5500M/海拔4000-5500M Return(ESC)/退出 Off/关闭 → Lamp/灯泡 On/打开 English/英文 Language → /语言...
- Page 17 CHANNEL FUNCTION(V1.0) Percentage Function/功能 /百分比 0-255 0-100 Dimmer/调光 Shutter/ strobe/频闪 0-31 0-12.35 Shutter closed/频闪关闭 32-63 12.35-24.9 Shutter open, Full lamp power/频闪打开,总灯泡功率 64-95 24.9-37.45 Strobe-effect from slow to fast/频闪效果,从慢到快 Shutter open/频闪打开 96-127 37.45-50 Opening pulse in sequences from slow to fast 128-143 50-56.27 /依次打开脉冲，从慢到快...
- Page 18 Percentage function/功能 /百分比 145-151 56.67-59.41 Cyan+CTO2/青色+CTO2 152-158 CTO2 59.41-62.16 159-165 CTO2+CTB 62.16-64.9 166-172 64.9-67.65 CTB+Dark Blue/ CTB+深蓝色 173-179 67.65-70.39 Dark Blue/深蓝色 180-186 70.39-73.14 Forwards rainbow effect from fast to slow 73.14-86.08 187-219 /彩虹效果，顺时针旋转，由快到慢 220-222 86.08-87.25 No rotation Backwards rainbow effect from slow to fast 87.25-100 223-255 /彩虹效果，逆时针旋转，由慢到快...
- Page 19 Percentage function/功能 /百分比 Gobo12/图案12 176-183 68.82-71.96 Open/hole/白光 184-191 71.96-75.1 Open/hole/白光 192-199 75.1-78.24 Open/hole/白光 200-201 78.24-79.02 Forwards gobo wheel rotation from fast to slow 202-221 79.02-86.86 /图案盘顺时针旋转,从快到慢 No rotation/无旋转 222-223 86.86-87.65 Backwards gobo wheel rotation from slow to fast 224-243 87.65-95.49 /图案盘逆时针旋转,从慢到快...
- Page 20 Percentage /百分比 Function/功能 Rot. gobo indexing and rotation/活动图案自转 0-127 0-50 Gobo indexing/索引图案 Forwards gobo rotation from fast to slow 128-187 50-73.53 /从快到慢顺时针旋转图案 No rotation/无旋转 188-195 73.53-76.67 Backwards gobo rotation from slow to fast 196-255 76.67-100 /从慢到快逆时针旋转图案 Frost/雾化 0-127 0-50 Close/关闭 128-255 50-100 Open/打开...
- Page 21 Percentage Function/功能 /百分比 10 metres/10米 0.59 3.33 15 metres/15米 6.47 20 metres/20米 9.61 30 metres/30米 12.75 40 metres/40米 15.88 50 metres/50米 More than 50 meters/50米以上 19.02 22.16 Static gobos & Hole (default)/打开 25.29 10 metres/10米 28.43 15 metres/15米 31.57 20 metres/20米 34.71 30 metres/30米...
- Page 24 ◎ Please check whether the DMX512 controller pass the “turn on”oder. 检查DMX512控制器是否发送了开灯泡指令； ◎ Please check the connection of the trigger circuit is loose contact. 检查灯泡与触发线路是否有脱落或解除不良； ◎ Please check whether the connected point of he trigger point is loose contact,faster the connect cable.
- Page 27 E-mail: Add:No.51 Yunfeng Rd,Xinhua Industrial Zone,Xinhua Street, Huadu District,Guangzhou,China.
