Wiring the Remote Display Assembly
Refer to Figure 7 for the wiring diagram to connect one or more Flexible User Interface(s) to a FACP.
Wiring
Instructions
Power must be supplied to the Flexible User Interface by connecting TB1 of the TIC to an auxiliary
power tap.
Note:

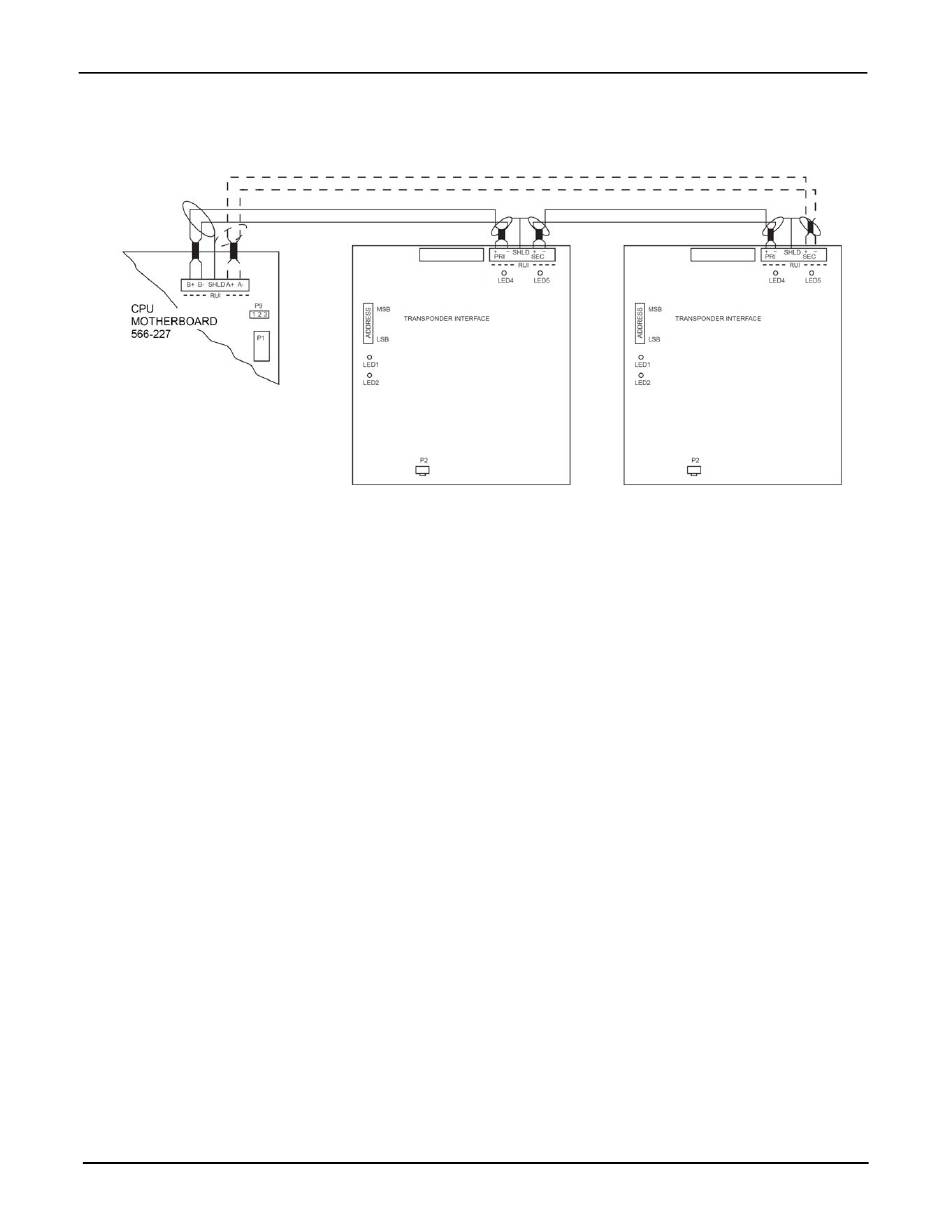

Figure 7. RUI Wiring Diagram.
DASHED LINES REPRESENT CLASS A WIRING
firealarmresources.com
, continued
9
