Replacing the Remote Display Assembly
If the Flexible User Interface panel on the remote display assembly stops functioning properly then it
Overview
must be replaced. Follow these steps to first remove the malfunctioning panel, and install the new panel.
Removing the
Before installing the new remote display assembly, the old door assembly must be removed.
Old Panel
1.
Remove the power to the remote box.
Assembly
2.
Lower the Flexible User Interface door assembly.
3.
Detach harness 734-008 from P2 of the TIC.
4.
Detach the green grounding straps connected to the studs on the back of the panel assembly by
removing the nut and washer from each stud and unhitching the strap.
5.
Press the latches at the bottom of the door assembly toward each other and lift it off the swivel
standoffs extending from the side of the remote box (see Figure 8).
LOCATION OF TRANSPONDER
INTERFACE CARD (TIC)
FLEXIBLE USER INTERFACE
CONTROLLER CARD
REMOTE DISPLAY ASSEMBLY

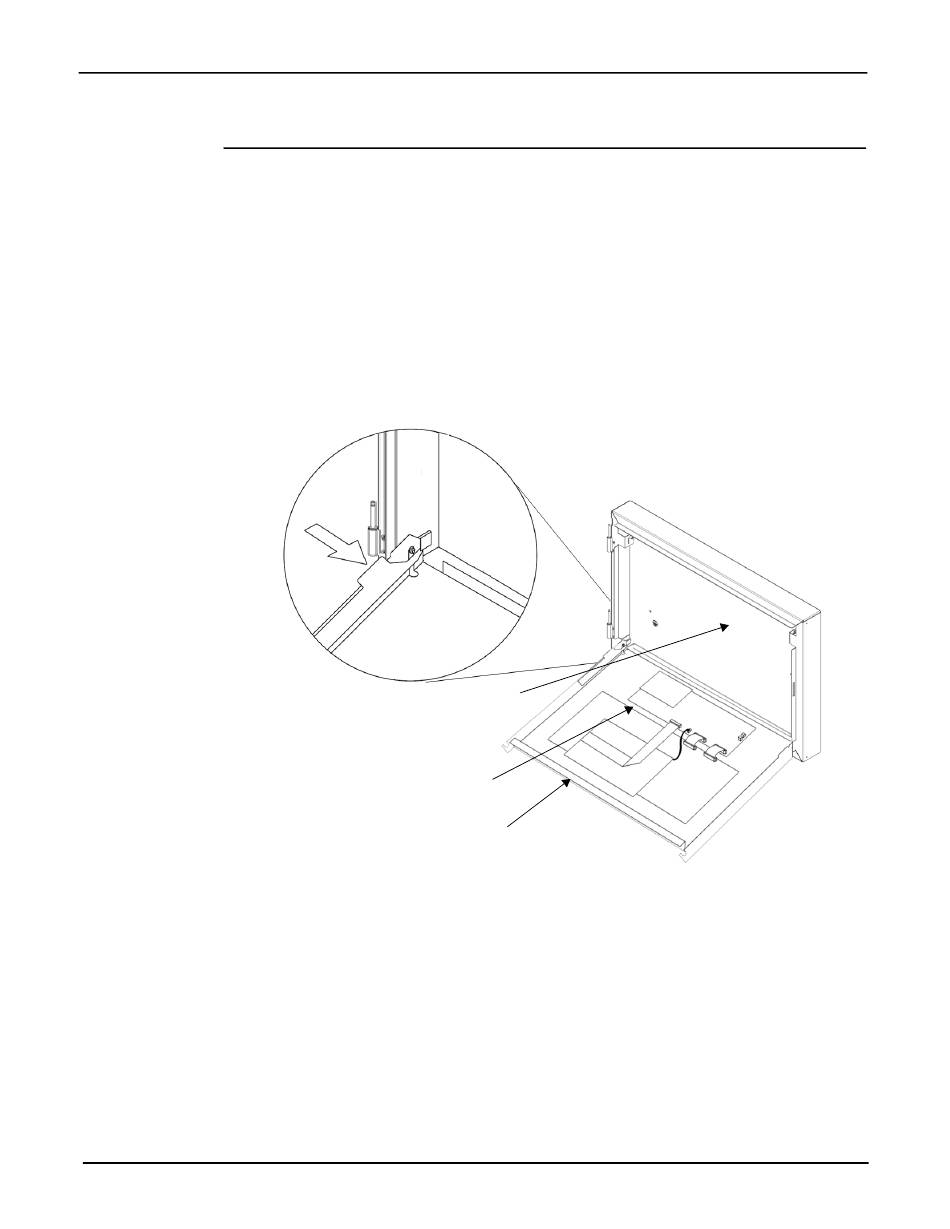

Figure 8. Close Up of Door Assembly Latch (Enclosure Door Not Shown)
