Overview,
continued
The transponder interface card housed in the Flexible User Interface remote display assembly is a varia-
Transponder
Interface Card
tion of the TICs used in the FACP Miniplex, and follows the same wiring guidelines as the Miniplex
(TIC)
TIC. Refer to 574-848 4100ES Fire Alarm System - Installation Guide for the TIC wiring guidelines.
SCREW
LEDS 1-2
TB1
The transponder interface card includes the following components:
LED 1
LED 2
LED 4
LED 5
P2
SW-1
TB1
TB3
SW-1

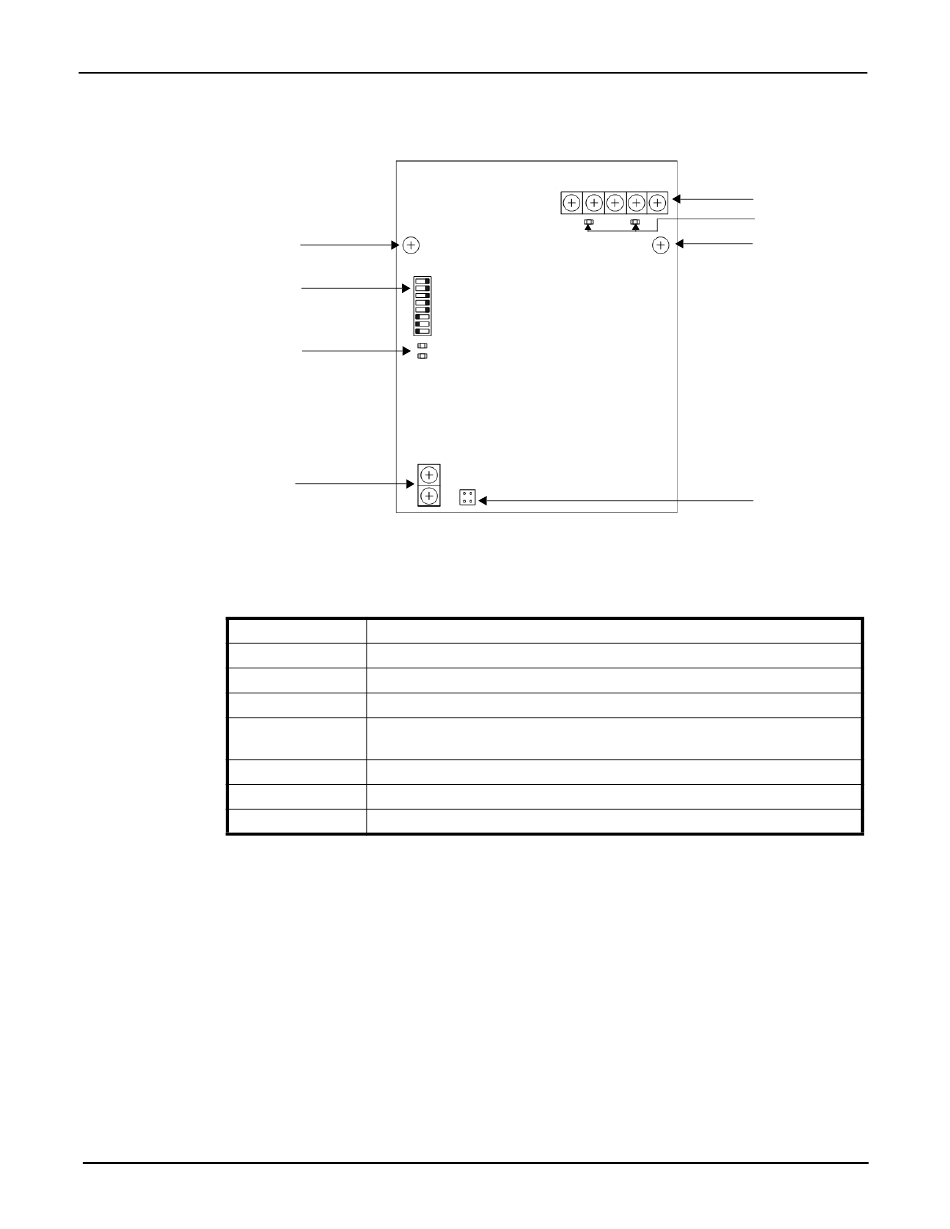

Figure 3. Transponder Interface Card
Reports communication loss with FACP Master when lit.
Illuminates when a RUI ground fault search is active.
Illuminates to indicate an RUI Style 7 primary trouble.
Illuminates to indicate an RUI Style 7 secondary trouble.
Uses harness 734-008 to connect to either P7 or P9 on the Flexible User Interface
controller card.
Sets the RUI address for the card.
Connects to the master controller to power the remote display assembly.
Connects to FACP master through RUI wiring.
firealarmresources.com
4
TB3
LEDS 4-5
SCREW
P2
