NTI ENVIROMUX TEMPERATURE/HUMIDITY SENSOR ATTACHMENT
E-STS-O/-IP67 Outdoor Temperature Sensor
Cable Restraint Assembly Procedure
The E-STS-O and E-STS-IP67 Outdoor Temperature Sensor includes a water-tight
cable restraint to be applied to the Cat5/5e/6/6a shielded cable to be used to
connect the sensor to an
connection is water-tight upon completion, follow the steps below.

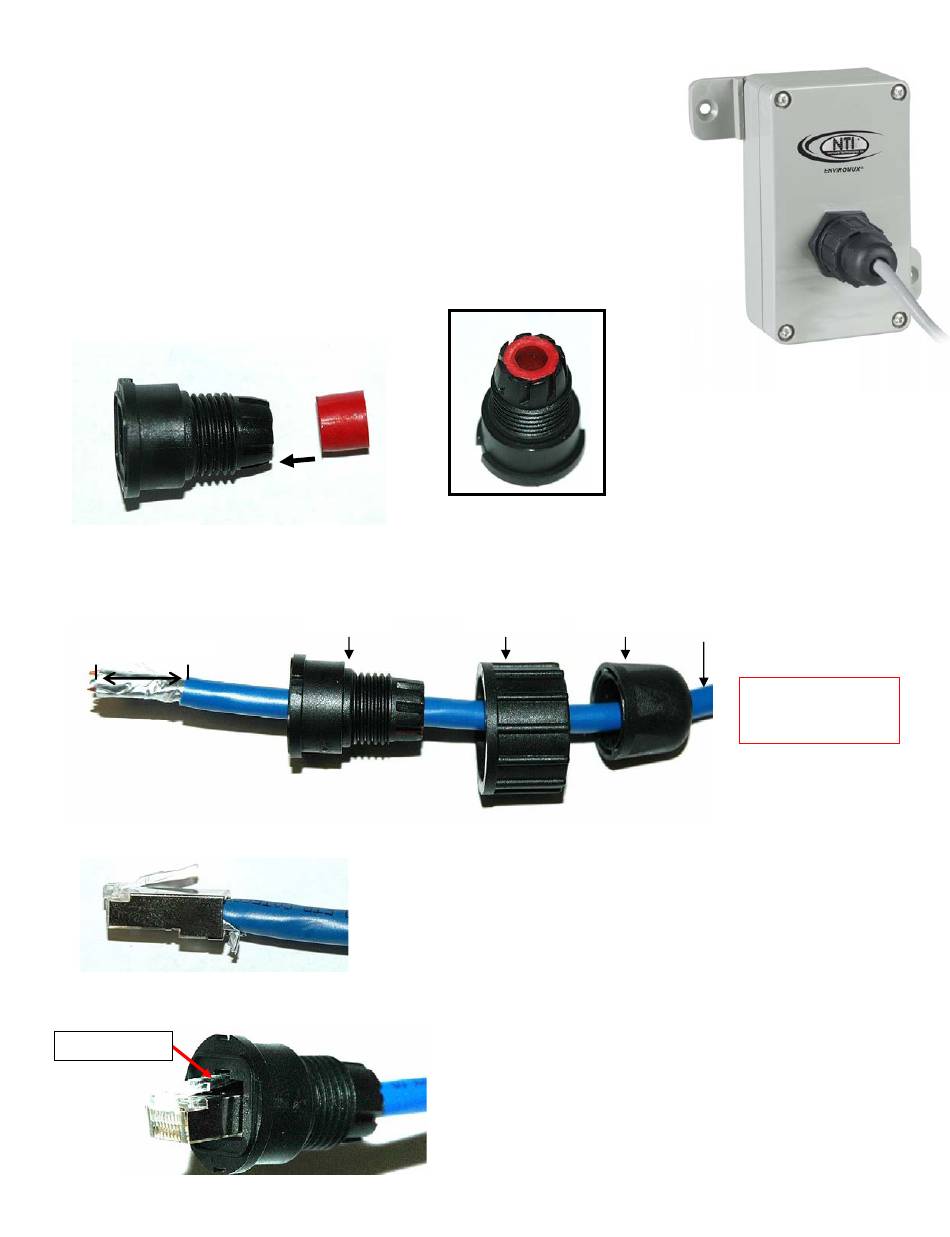

1. Insert the seal ring into the housing.
2. Strip the CATx shielded cable jacket (6mm-7mm O.D.) approximately ½" and insert the cable through the sealing
nut, screw nut, and housing. (Note: Heat shrink tubing can be applied to cable to increase the O.D. of the CATx
cable to 6mm-7mm.)
strip approx. ½"
3. Terminate the CATx shielded cable with an RJ45 connector.
4. Set the RJ45 connector into the housing such that the snap handle is in the notch.
Snap handle
E-16D/5D/2D and E-SEMS-16(U)
housing
unit. To make sure the
screw nut sealing nut
12
CATx cable
Note: CATx cable
used must be
shielded cable.
