MAX98365 DEV Board PCB Layout (continued)

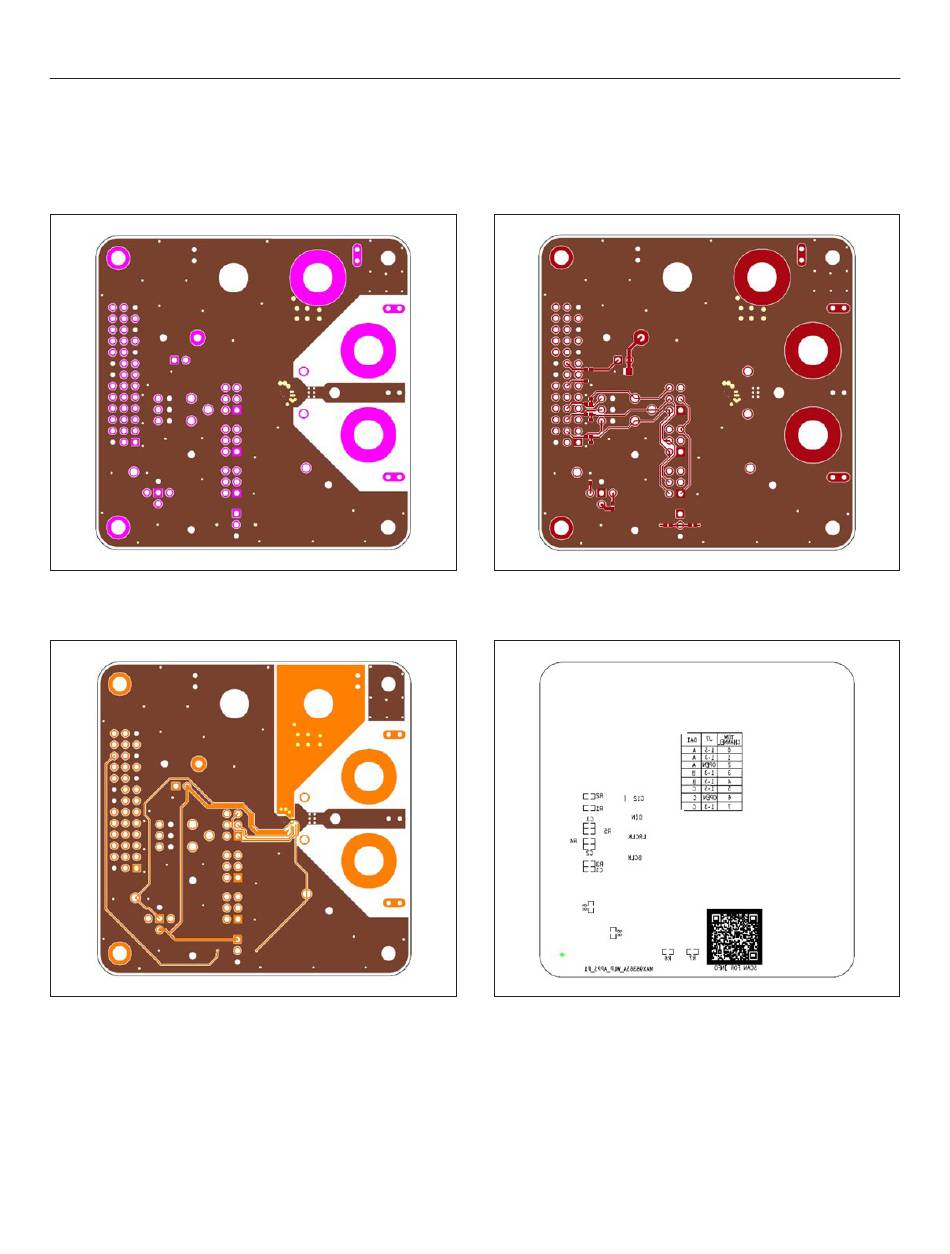

MAX98365A DEV Board—Inner 1
MAX98365A DEV Board—Inner 2
www.analog.com
Evaluates: MAX98365A/MAX98365B/
MAX98365C/MAX98365D
MAX98365A DEV Board—Bottom
MAX98365A DEV Board—Bottom Silkscreen
