RT-2015E/2016E
Fanless Touch POS Terminal
User Manual
Views of RT-2015E/2016E
Front View
LED indicator
15" RT-2015E
Rear View
Attachment Bay
16950902010
Ver. A0
http://www.posiflex.com
Package Contents
RT-2015E 15" fanless touch terminal or
RT-2016E 15.6" fanless touch terminal.....x1
Power adapter...................................x1
Power cord.......................................x1
User manual.....................................x1
Screw for back cover...........................x1
Camera (Optional)
P-Cap Touch Panel
1
LED indicator
15.6" RT-2016E
System Back Cover
Wall- Mount
Screw Hole
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for POSIFLEX RT-2015E
Summary of Contents for POSIFLEX RT-2015E

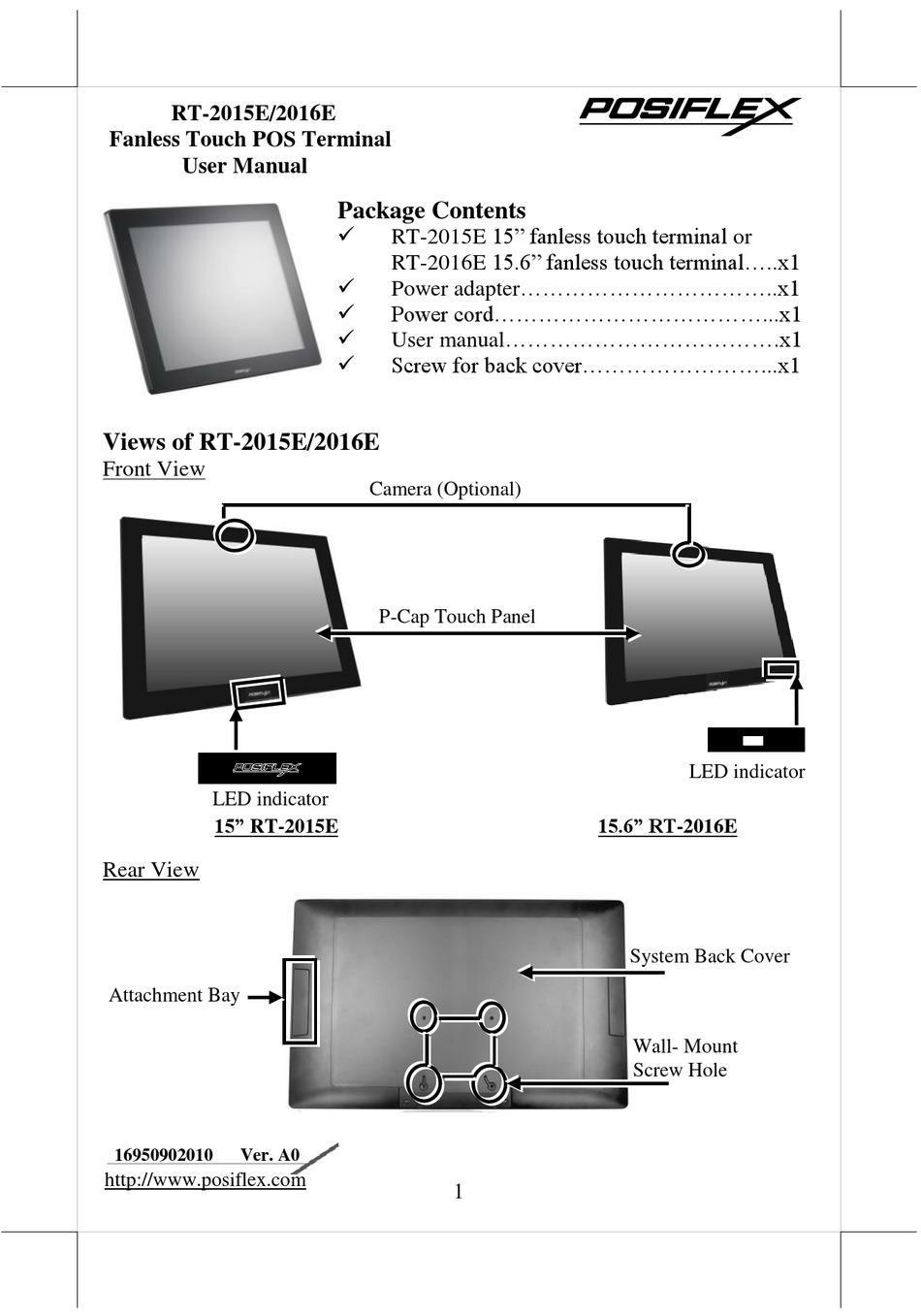

- Page 1 RT-2015E/2016E Fanless Touch POS Terminal User Manual Package Contents RT-2015E 15” fanless touch terminal or RT-2016E 15.6” fanless touch terminal…..x1 Power adapter……………………………..x1 Power cord………………………………...x1 User manual……………………………….x1 Screw for back cover……………………...x1 Views of RT-2015E/2016E Front View...
- Page 2 Bottom View Screw Hole Release Lever for System Back Cover Right-Side View Power Button Brightness Adjustment Button ＋ Brightness Adjustment Button － Left-Side View Rubber Shield for USB2.0 Port...
- Page 3 View of I/O Interface of RT-2015E/2016E Bottom Side DB9 COM Port CR Port LAN Port USB 2.0 Ports RJ50 COM Ports 24V PoweredUSB Port Mini DisplayPort USB 3.0 Port DC IN Power Connector Left Side USB 2.0 Port Connecting Power Adapter and Cables The following provides instructions required to connect your cables.
- Page 4 Installing Optional Upgrade Kits and Peripherals RT-2015E/2016E is an expandable model which allows you to upgrade its own capacity by additionally installing multiple peripheral devices, such as magnetic stripe reader (MSR), fingerprint or iButton sensors, and 2 monitor, according to your preference.
-
Page 5: Installing An Operating System
Installing an Operating System You are highly advised not to install an operating system on RT-2015E/2016E without professional instructions. Improper installation could lead to system malfunction or failure. Please contact with your dealers about the issues of operating system installation. -
Page 6: Operation Environment
Operation Environment To prevent RT-2015E/2016E from overheating, it is suggested to position your terminal in a well-ventilated working environment. In doing so, please be advised to keep the POS terminal at least 25mm away from other devices to... -
Page 7: Specifications
Specifications RT-2015E RT-2016E Intel Bay Trail-D Intel Celeron - J1900 (2.0 GHz, QC, 10W TDP) 1 x DDR3L SO-DIMM System Memory 2 x S-ATA port Storage Port Power Source 12V/60W external power adapter (can be upgraded to 150W while adopting poweredUSB module) 15"... - Page 8 10.1" 2nd display for RT series terminal LM/TM-4011DP 15" 2nd display for RT series terminal LM/TM-4015DP ※ The product information and specifications are subject to change without prior notice. To get the detailed information on the RT-2015E/2016E, please check this model from Posiflex Global Website.
- Page 9 This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions manual, may cause interference to radio communications. It has been tested and found to comply with limits for a Class A digital device pursuant to subpart J of Part 15 of FCC Rules, which are designed to provide reasonable protection against interference when operated in a commercial environment.
- Page 10 <MEMO>...
- Page 11 <MEMO>...
- Page 12 <MEMO>...
