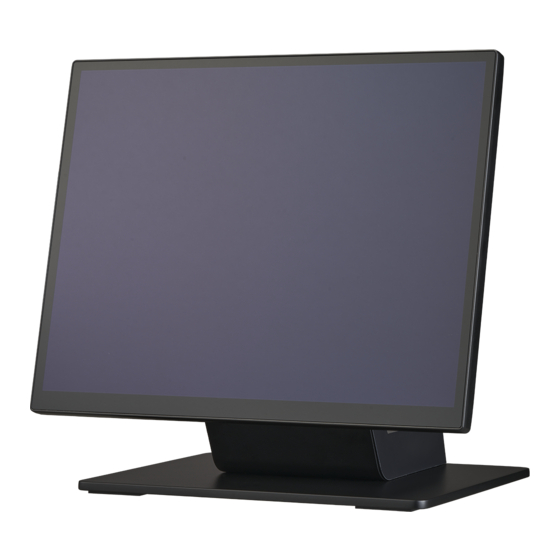

Fanless touch pos terminal
Hide thumbs

Advertisement

Table of Contents

RT-7015/7016
Fanless Touch POS Terminal
User Manual
SOME IMPORTANT NOTES
FCC NOTES
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will be required to correct
the interference at his own expense.
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
CE CLASS A WARNING
This equipment is compliant with Class A of CISPR 32. In a residential environment this
equipment may cause radio interference.
AVERTISSEMENT CE CLASSE A
Cet équipement est conforme à la classe A de CISPR 32. Dans un environnement
résidentiel, cet équipement peut provoquer des interférences radio.
WARRANTY LIMITS
Warranty will terminate automatically when the machine is opened by any person other than
the authorized technicians. The user should consult his/her dealer for the problem happening.
Warranty voids if the user does not follow the instructions in application of this merchandise.
The manufacturer is by no means responsible for any damage or hazard caused by improper
application.
LIMITES DE GARANTIE
La garantie prend fin automatiquement lorsque la machine est ouverte par une personne
autre que les techniciens autorisés. L'utilisateur doit consulter son revendeur pour le
problème qui se produit. La garantie s'annule si l'utilisateur ne suit pas les instructions
d'application de cette marchandise. Le fabricant n'est en aucun cas responsable de tout
dommage ou danger causé par une mauvaise application.
RT-7015/7016 Ver. A0
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RT-7015 and is the answer not in the manual?

Questions and answers

Related Manuals for POSIFLEX RT-7015

Summary of Contents for POSIFLEX RT-7015

  • Page 1 L'utilisateur doit consulter son revendeur pour le problème qui se produit. La garantie s'annule si l'utilisateur ne suit pas les instructions d'application de cette marchandise. Le fabricant n'est en aucun cas responsable de tout dommage ou danger causé par une mauvaise application. RT-7015/7016 Ver. A0...
  • Page 2 警告使用者 為避免電磁干擾，本產品不應安裝或使用於住宅環境。 SAFETY INSTRUCTIONS This equipment is not suitable for use in locations where children are likely to be present. CONSIGNES DE SÉ CURITÉ Cet équipement ne convient pas à une utilisation dans des lieux pouvant accueillir des enfants. WARNING Power cord shall be connected to a socket-outlet with earthing connection.
  • Page 3 Package Contents  RT-7015 15” fanless touch terminal or RT-7016 15.6” fanless touch terminal..………………...……………..(x1)  Power adapter………………………………………………………..(x1)  Power cord………………………………………………………….…(x1) Views of RT-7015/7016 Front View P-Cap Touch Panel Rear View Attachment Bay System Back Cover Stand Cover Cable Exit...
  • Page 4 Bottom View Screw for Fire-Resistant System Back Cover Release Lever for System Back Cover Left-Side View Power Button Brightness Adjustment Button ＋ Brightness Adjustment Button － Views of RB-5000 UPS Base Stand (Option) Top View Bottom View Rubber Foot Battery Cable Through Hole Screw Hole BATT.

  • Page 5: Left Side View

    RB-5000 will beep once every second. At this moment, power off the RT terminal immediately. To get more detailed information of RB-5000, please contact the service team of Posiflex or download the RB-5000 user manual from Posiflex Global Website: (https://www.posiflex.com/document/user- manual/?pmid=90,103&pid=5306).
  • Page 6 Please do NOT press on the LCD panel while setting up the tilt angle. Installing Power Adapter and Cables for RT-7015/7016 The following provides instructions required to install your cables. Lay the terminal with its rear facing towards you and tilt the screen all the way down.
  • Page 7 To remove the stand cover from the base, please slide it in the horizontal direction shown by the arrow. Connect the connector of the power adapter to the DC-IN power jack. If necessary, properly insert other cables into the correct port. For Type-C cable, locking the screw is required.
  • Page 8 Note: Please use the type-C cable certified/provided by Posiflex. Please DO NOT use the cables from other unknown sources. Neatly arrange the cables. Locate the cable holder inside the base as shown in the figure. Push down the lever to release if from the hook, pass the cable through cable holder, and then press down the lever again to lock it onto the hook.
  • Page 9 à la terre. Installing Optional Upgrade Kits and Peripherals RT-7015/7016 is an expandable model which allows you to upgrade its own capacity by additionally installing multiple peripheral devices, such as magnetic stripe reader (MSR), fingerprint or iButton sensors, and 2 rear- mount POS monitor, according to your preference.
  • Page 10  Installing PoweredUSB or USB Hub for RT-7015/7016 Please go through the below steps to complete the installation of PoweredUSB or USB hub. After tilting the screen all the way down, remove the system back cover.
  • Page 11 To remove the stand cover from the base, please slide it in the horizontal direction shown by the arrow. Align the two screw bolts at the bottom of PoweredUSB or USB hub with rail slots in the base. Push PoweredUSB or USB hub in the direction shown by the arrow to lock it into place.
  • Page 12 Install power adaptor extension cable, USB cable, and power adaptor for PoweredUSB hub. Insert one end of the provided power adaptor extension cable to DC Input port of PoweredUSB hub and another end to DC-in power jack of the terminal. Insert mini-USB connector of the USB cable to PoweredUSB hub and another end to USB3.0 port of the terminal.

  • Page 13: Status Led Indicator

    Installing an Operating System You are highly advised not to install an operating system on RT-7015/7016 without professional instructions. Improper installation could lead to system malfunction or failure. Please contact with your dealers about the issues of operating system installation.

  • Page 14: Operation Environment

    Operation Environment To prevent RT-7015/7016 from overheating, it is suggested to position your terminal in a well-ventilated working environment. In doing so, please be advised to keep the POS terminal at least 25mm away from other devices to ensure the machine is properly cooled down and functioning normally.
  • Page 15 CR Port 1 port, controlling 2 CR Audio Port 2 x Internal 2W speaker 1 x M.2 2230 slot for WiFi/BT module Extension Slot With base stand Mechanical Dimension 321.6 x 295.5 x 207 356.3 x 277.4 x 207 (W x V x D in mm) Operating：...

  • Page 16: Outline Dimension

    Outline Dimension RT-7015 RT-7016 ※ The product information and specifications are subject to change without prior notice. To get the detailed information on the RT-7015/7016, please check this model from Posiflex Global Website.
  • Page 17 Manufacturer: Posiflex Technology Inc. 4F-8F, No. 23, Datong St., Tucheng Dist., New Taipei City 236044, Taiwan Tel : +886 2 2268 5577 製造商資訊 振樺電子股份有限公司 新北市土城區大同街 23 號 4 樓~8 樓 電話：02-2268-5577...
