Page 1

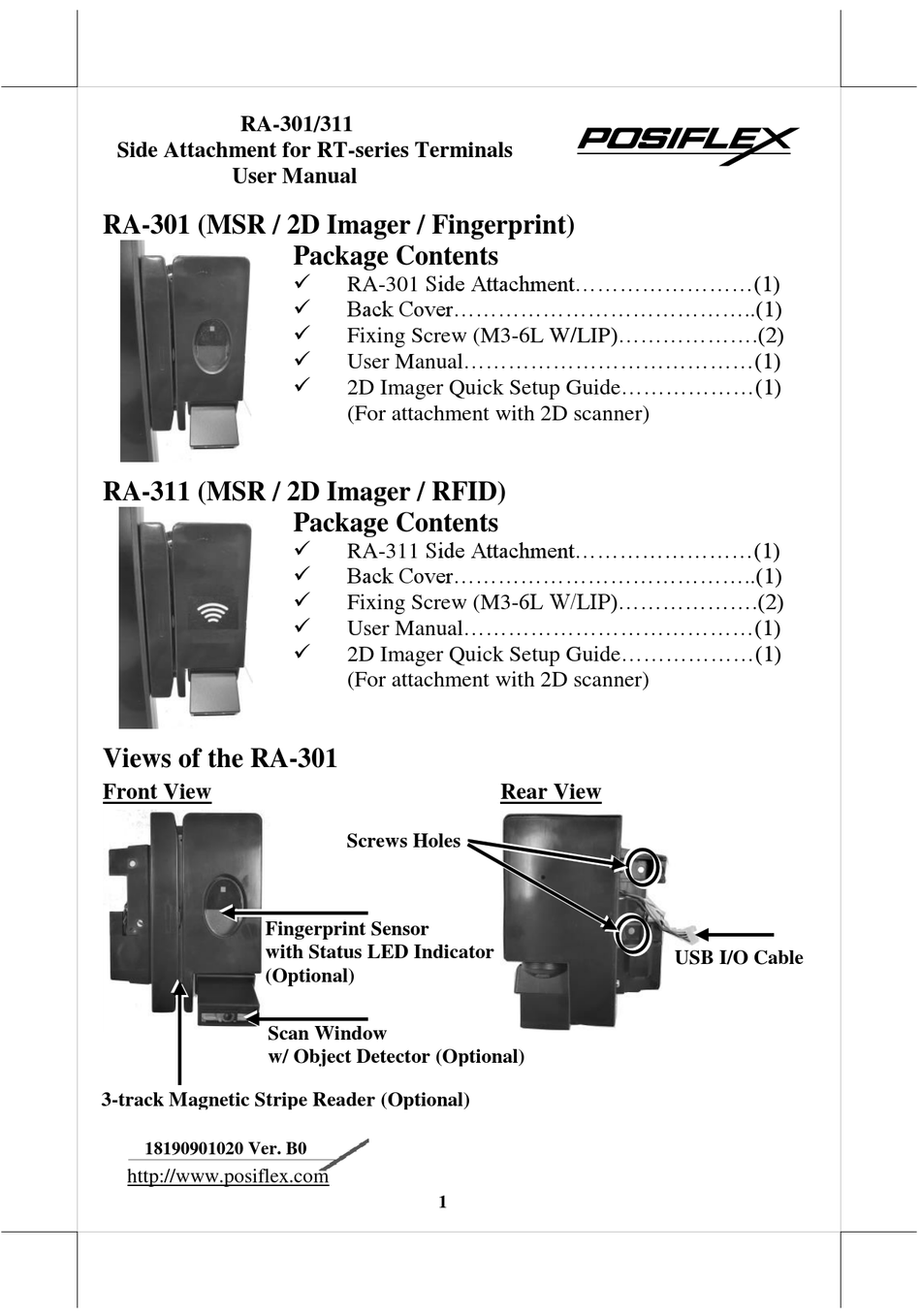

RA-301/311 Side Attachment for RT-series Terminals User Manual RA-301 (MSR / 2D Imager / Fingerprint) Package Contents RA-301 Side Attachment……………………(1) Back Cover…………………………………..(1) Fixing Screw (M3-6L W/LIP)……………….(2) User Manual…………………………………(1) 2D Imager Quick Setup Guide………………(1) (For attachment with 2D scanner)
Page 2
SOME IMPORTANT NOTES FCC NOTES This system meets industry & government requirements and applicable standards. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions manual, may cause interference to radio communications.
Page 3
1. Use slotted screwdriver to remove the cover for attachment bay which is located on the left side of the rear of your RT-series terminal. 2. Connect the cable of RA-301/311 to the cable connector from mainboard of your RT-series terminal. Then, tuck excess cables inside the attachment...
Page 4
3. Align the screw holes of RA-301/311 with the mounting holes inside the attachment bay of your RT-series terminal. 4. Secure RA-301/311 with two screws. 5. Push the excess cable to the inside. 6. Push the back cover for RA-301/311 until it is locked into place as shown in the figure below.
Page 5
Driver/Utility Installation and Utility Outline Before installing the drivers of the RA-301/311, after installing the RA- 301/311 attachment, power on your RT-series terminal. Installing and Starting the Posiflex USB MSR Manager 1. Before installing the USB MSR Manager, please visit Posiflex official website (http://www.posiflex.com/en-global/Download/download) to...
Page 6
1. If you purchase the attachment having the RFID module of which the interface is Virtual COM, install the RF-3X0 Virtual COM Driver before installing the RF-3X0 Setup Tools. Please visit Posiflex official website (http://www.posiflex.com/en-global/Download/download) to download the virtual COM driver.
Page 7
Please visit Posiflex Global Website (http://www.posiflex.com/en-global/Download/download) to download the related documents.
Page 8
Using the RA-301/311 After installing the drivers and tools, you can start to operate the RA-301/311. Magnetic Stripe Reader (MSR) RA-301/311 with magnetic strike reader mainly serves to read and decode data from magnetic stripe. Please go through the following tips while swiping your MSR...
Page 9
2D Imager To enhance your experience using 2D imager, the RA-301/311 provide a wide range of angle adjustment, with a vertical scanning angle of up to 110˚ and horizontal scanning angle of up to 180˚. Please refer to the figures below to properly adjust the 2D imager for a better scanning angle.
Page 10
DataMatrix 35~160mm (Resolution(0.31)) (Measured from the front end of the scanner) ※ The product information and specifications are subject to change without prior notice. To get the detailed information on RA-301/311, please check this model from Posiflex Global Website (http://www.posiflex.com/en-global/Download/download).
