RT-6015/6016/6115/6116

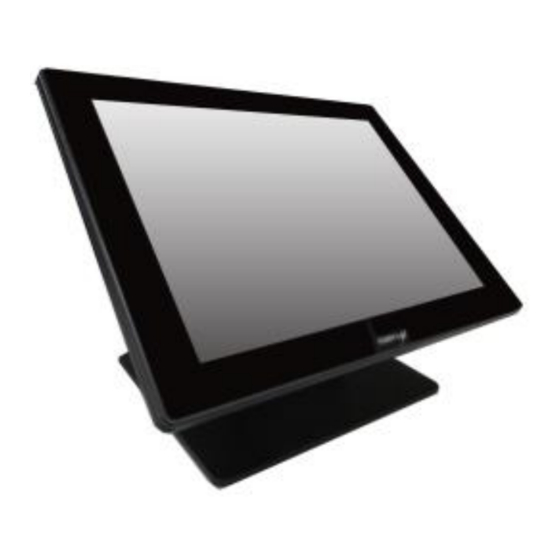

Fanless Touch POS Terminal

User Manual

16940907020 Ver. B0

http://www.posiflex.com

Package Contents



RT-6015 15" fanless touch terminal or

RT-6016 15.6" fanless touch terminal or

RT-6115 15" fanless touch terminal or

RT-6116 15.6" fanless touch terminal (x 1)



Power adapter (x 1)



Power cord (x 1)



User manual (x 1)

Need help?

Do you have a question about the RT-6015 and is the answer not in the manual?

Questions and answers

Summary of Contents for POSIFLEX RT-6015

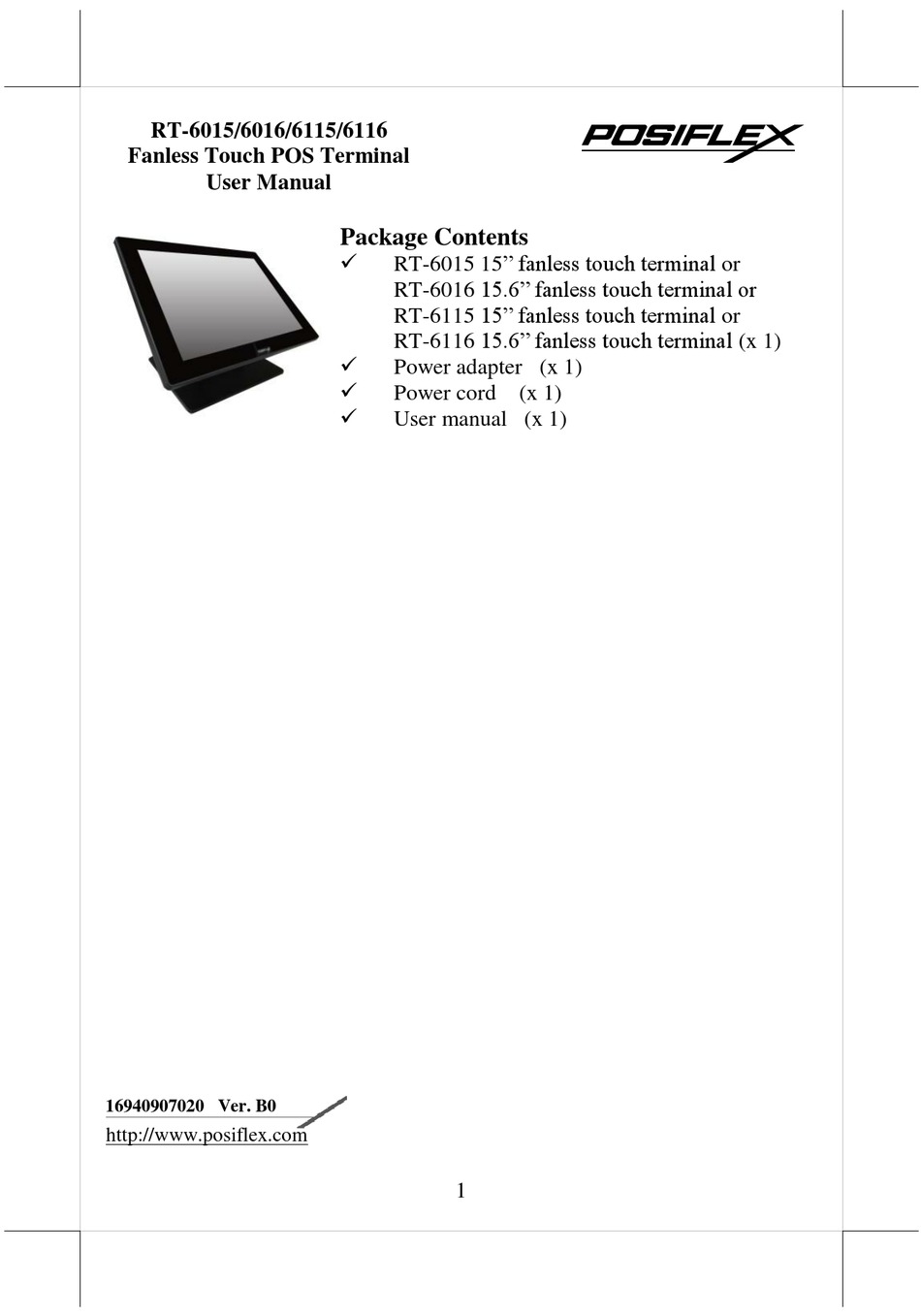

Page 1 RT-6015/6016/6115/6116 Fanless Touch POS Terminal User Manual Package Contents  RT-6015 15” fanless touch terminal or RT-6016 15.6” fanless touch terminal or RT-6115 15” fanless touch terminal or RT-6116 15.6” fanless touch terminal (x 1)  Power adapter (x 1) ...
Page 2 SOME IMPORTANT NOTES FCC NOTES This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
Page 3 警告使用者此為甲類資訊技術設備，於居住環境中使用時，可能會造成射頻擾動，在此種情況下，使用者會被要求採取某些適當的對策。 BATTERY CAUTION NOTES  Dispose of used batteries according to the instructions.  Replacement of a battery with an incorrect type that can defeat a safeguard (for example, in the case of some lithium battery types)  Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery that can result in an explosion.
Page 4 Views of RT-6015/6016/6115/6116 Front View RT-6015/6016/6115/6116 P-Cap Touch Panel 15” RT-6015/6115 15.6” RT-6016/6116 Rear View System Back Cover Attachment Bay Stand Cover Cable Exit Bottom View Screw for Fire-Resistant System Back Cover Release Lever for System Back Cover...
Page 5 RB-5000 will beep once every second. At this moment, power off the RT terminal immediately. To get more detailed information of RB-5000, please contact the service team of Posiflex or download the RB-5000 user manual from Posiflex Global Website: (http://www.posiflex.com/en-global/Download/download).
Page 6 View of I/O Interface of RT-6015/6016/6115/6116 Bottom Side View LAN Port USB 2.0 Ports CR Port DB9 COM Port RJ50 COM Ports Mini DisplayPort USB 3.0 Ports DC IN Power Connector Side View USB 2.0 Port Positioning your POS for a Perfect Viewing Angle Steady the base with one hand, and then tilt the screen in the direction shown by the arrow in the figure.
Page 7 Installing Power Adapter and Cables The following provides instructions required to install your cables. Lay the terminal with its rear facing towards you and tilt the screen all the way down. Remove the system back cover. If the system back cover is fire-resistant, first locate the screw as indicated in the figure, and then remove it.
Page 8 Connect the connector of the power adapter to the DC-IN power jack. If necessary, properly insert other cables into the correct port. Neatly arrange the cables. Locate the cable holder inside the base as shown in the figure. Push down the lever to release if from the hook, pass the cable through cable holder, and then press down the lever again to lock it onto the hook.
Page 9 être connecté à une prise de courant avec mise à la terre. Installing Optional Upgrade Kits and Peripherals RT-6015/6016/6115/6116 is an expandable model which allows you to upgrade its own capacity by additionally installing multiple peripheral devices, such as magnetic stripe reader (MSR), fingerprint or iButton sensors, and 2 rear-mount POS monitor, according to your preference.
Page 10  Installing Rear-Mount POS Monitor RT-series POS terminal also allows you to additionally install rear-mount POS monitor to expand its functionality. Regarding the step-by-step instructions which aim to help you mount it onto your POS system, Please refer to the user manual specific to the device you intend to install.
Page 11 Align the two screw bolts at the bottom of PoweredUSB or USB hub with rail slots in the base. Push PoweredUSB or USB hub in the direction shown by the arrow to lock it into place. To remove the PoweredUSB or USB hub from the rail slots, press down the hubs first and then push it outwards.
Page 12 LED status indicator, which is located at the bottom edge of the LCD panel, is mainly responsible for notifying users of the current system status by emitting various LED signals. In the chart provided below, it describes all the possible LED status as a quick reference. 15” RT-6015/6115 LED Status Description System power OFF...
Page 13: Installing An Operating System
Operation Environment To prevent RT-6015/6016/6115/6116 from overheating, it is suggested to position your terminal in a well-ventilated working environment. In doing so, please be advised to keep the POS terminal at least 25mm away from other devices to ensure the machine is properly cooled down and functioning normally.
Page 14 Specifications RT-6015/6016 RT-6015 RT-6016 Intel Whiskey Lake-U CPU: Core i3-8145UE System Memory DDR4 SO-DIMM x 2 SATA Storage x 2 Storage Device Windows 10 IoT OS Support vPro Yes (optional) RAID 12V / 60W, can be upgraded to 150W while...
Page 15 iButton (or RFID) with one USB port attachment RA-103 for RT series RA-104 2D scanner attachment for RT series RA-301 3-in-1 MSR + Fingerprint Sensor + 2D scanner attachment for RT series LM/TM-4010 9.7" 2nd display for RT series terminal 10.1"...
Page 16 USB port replicator ( USB2.0 x 4, installed in base stand) UPS battery stand RB-5000 ※ The product information and specifications are subject to change without prior notice. To get the detailed information on the RT-6015/6016/6115/6116, please check this model from Posiflex Global Website.
